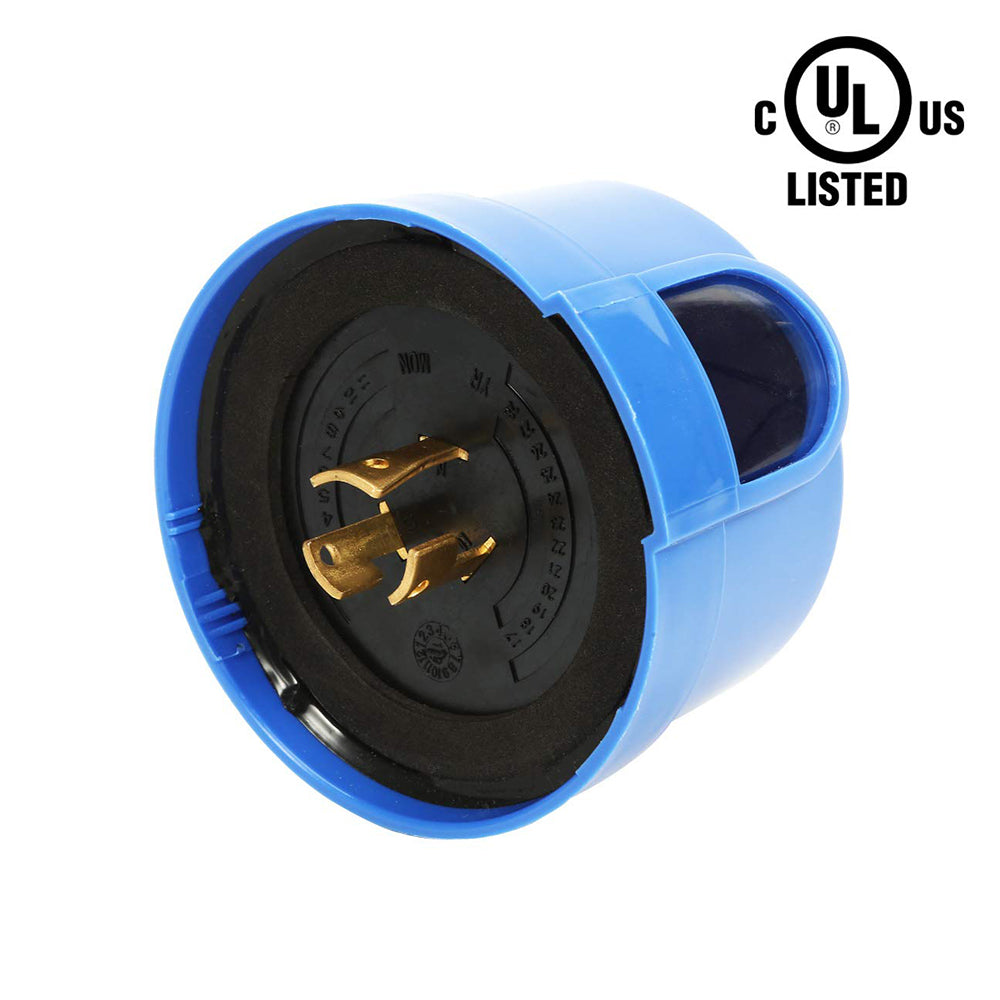

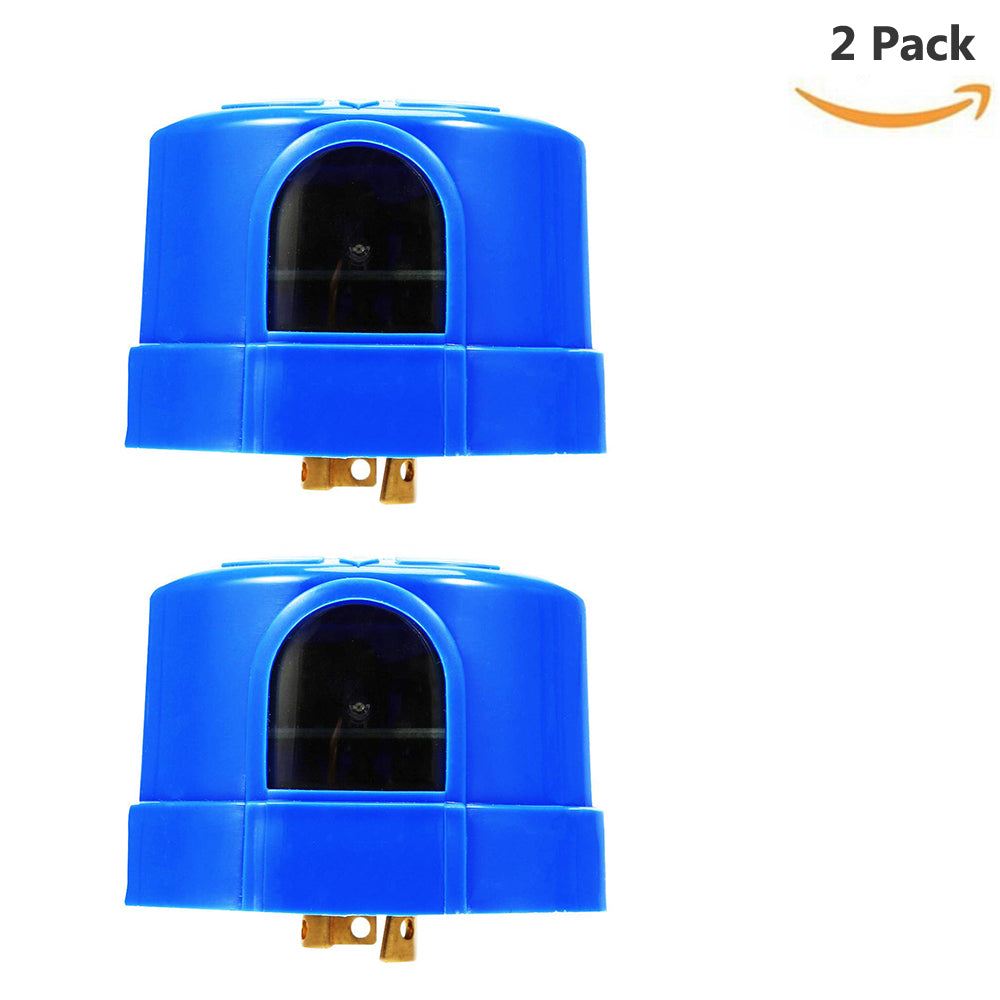

Twist Lock Photocell for Outdoor Lights, Auto On/Off Dusk to Dawn Light Sensor, Photoelectric Switch for LED Street Area Light, Parking Lot Light-2 Pack
Twist Lock Photocell for Outdoor Lights, Auto On/Off Dusk to Dawn Light Sensor, Photoelectric Switch for LED Street Area Light, Parking Lot Light-2 Pack
In stock
Regular price
$29.00
Regular price
Sale price
$29.00
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Shipping: US free shipping
Shipping by: FedEx UPS
Delivery time: 2-4 business days after payment
Bigger Quantity Cheaper Price
For Wholesale and Custom Order, Please Contact sales@choierlight.com
| Minimum Same Variant Quantity | Discount |
| 10-29 | 3% |
| 30-99 | 5% |
| 100+ | 8% |
Photocell Spec:
- Model: LC-10DT-74-X6
- Rated Voltage: 120-277VAC
- Rated Frequency: 50/60Hz
- Relative Humidity: 99%RH
- On/Off Level: 10Lx On(at Dusk), 30Lx Off (at Dawn)
- Turn-On/Off Time Delay: <15s
- MOV Surge Protection: 320J
- Energy Consumption: Less than 1Watt（120V<0.5W）
- Electrical Life: 5,000 operations at ANSI specified load test levels
- Housing: UV stabilized impact resistant polycarbonate (PC)
- Failure Mode: Fail OFF (standard)
- Operating Temp: -40°C to +70°C (-40°F to +158°F)
- Certification: UL listed
-

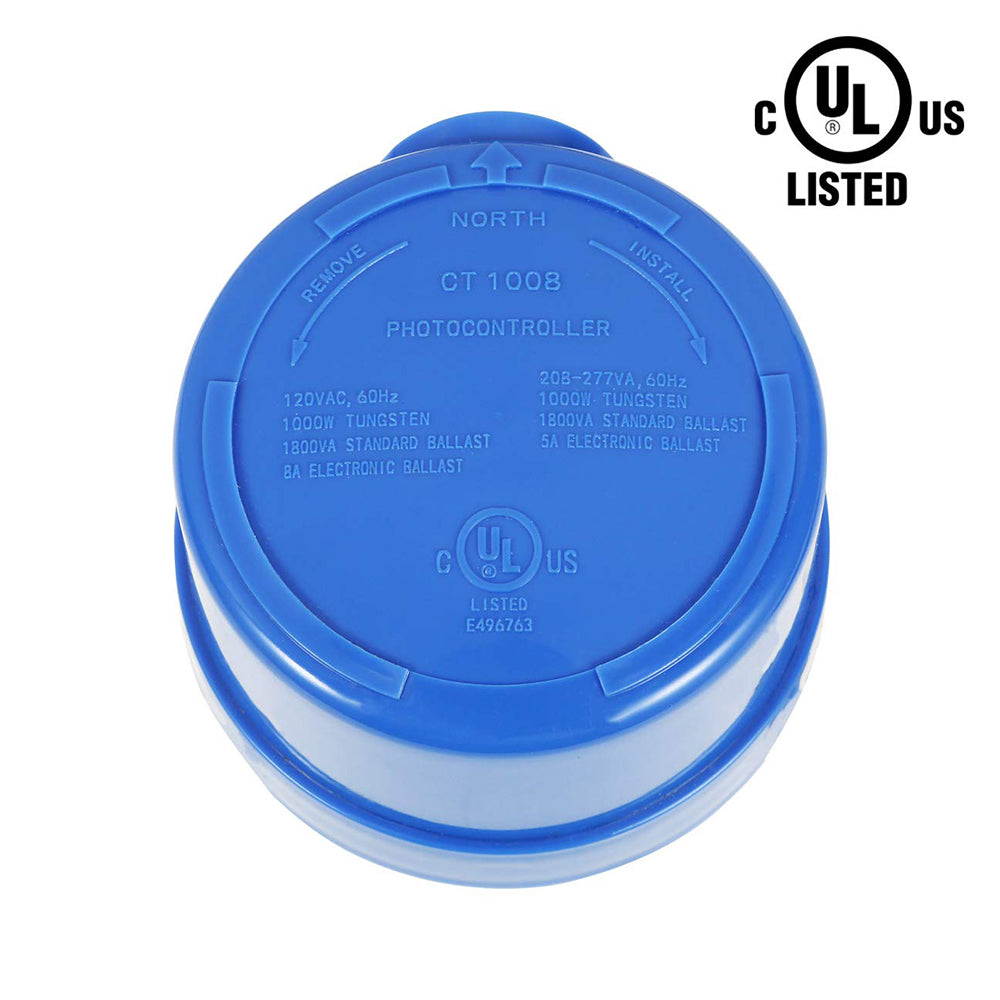

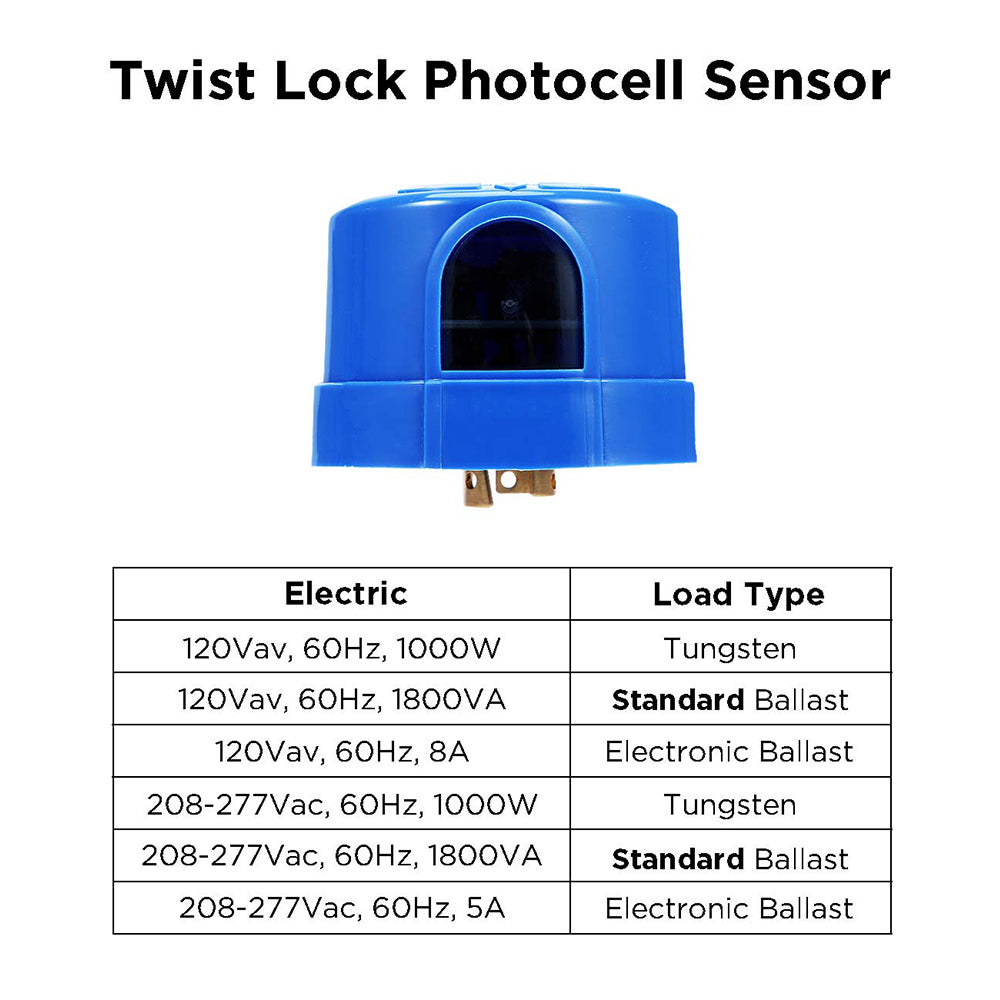

Ratings:
Tungsten: 120Vac, 60Hz, 1000W
Standard Ballast: 120Vac, 60Hz, 1800VA
Electronic Ballast: 120Vac, 60Hz, 8A
Tungsten: 208-277Vac, 60Hz, 1000W
Standard Ballast: 208-277Vac, 60Hz, 1800VA
Electronic Ballast: 208-277Vac, 60Hz, 5A
https://cdn.shopify.com/s/files/1/0692/4245/4334/files/Temporary-Work-Light-V4.9.pdf?v=1
Photocell Sensor Features:
- 【UL Listed】-The photocell sensor is UL listed to ensure quality and safety. It's suitable for wide range of outdoor area lights, parking lot lights, shoebox lights, street lights, barn lights, pole lights, etc.

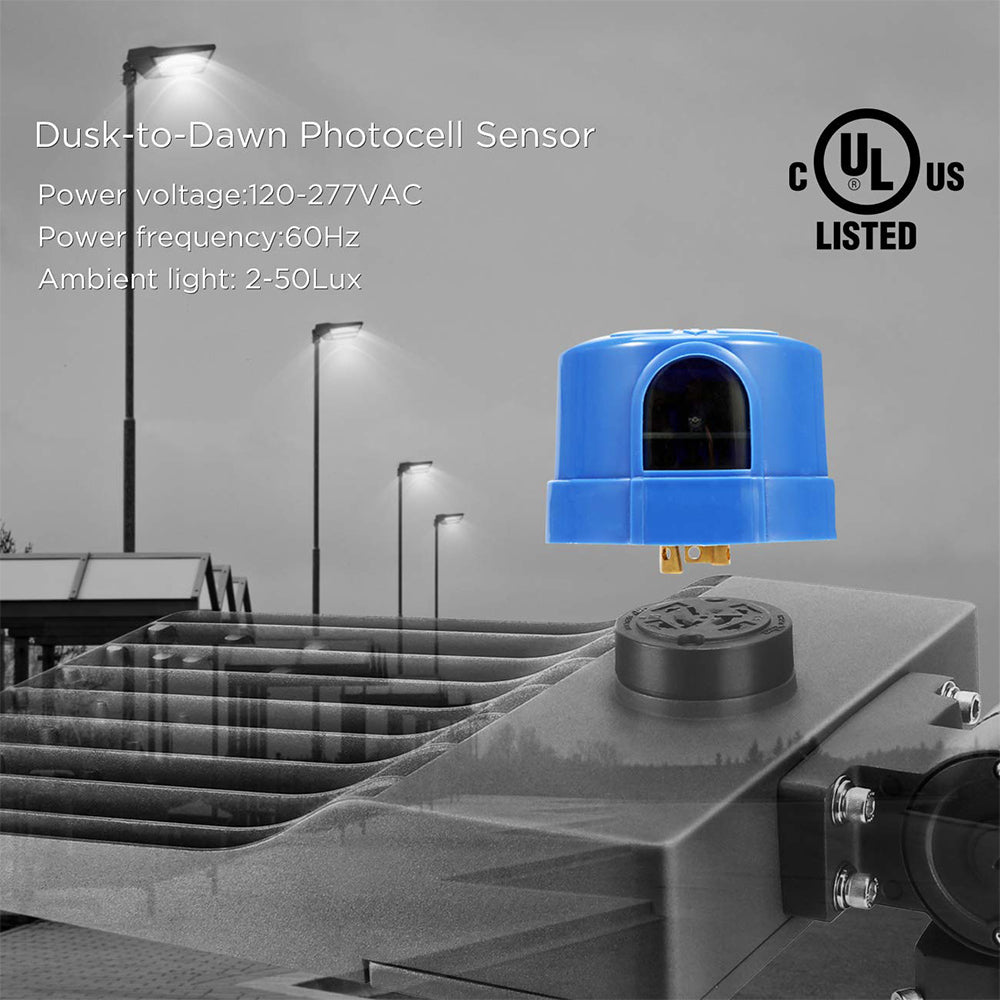

- 【AUTO ON/OFF】-With electrical specs of 120V-277VAC, 1000W Tungsten, 1800VA Ballast, our dusk to dawn sensor senses sunlight and automatically turns light on at dusk and off at dawn.

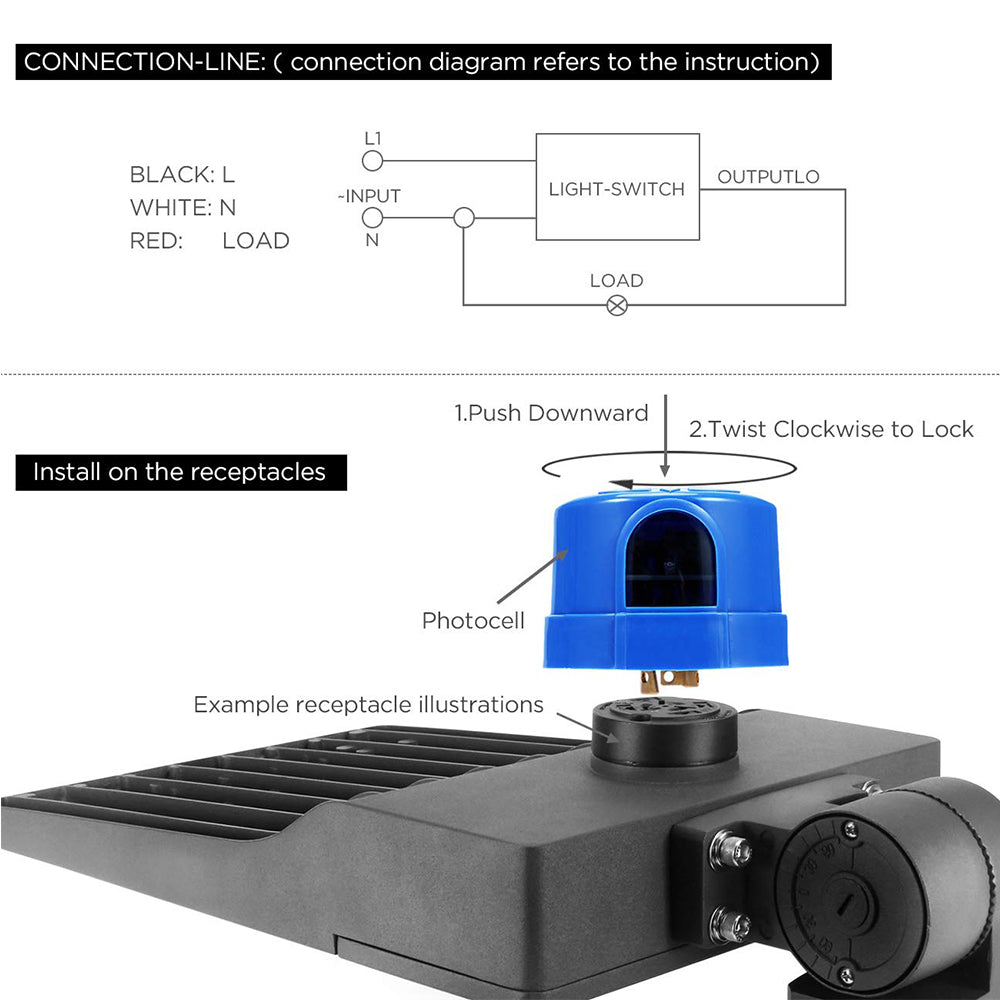

- 【EASY TO INSTALL】-The turn lock design makes this photocell easy to remove and install, just need to plug in a base, twist lock plug for quick installation. Standard prongs ensures this light switch lock could be compatiable with any standard twist lock receptacle base.
- 【TIME DELAY FEATURE】-A preset 2-8 seconds time-delay features avoid mis-operation due to spotlight or lightning or other temporary light during the night time.
- 【IP65 & SURGE PROTECTION】-IP65 waterproof rating and surge protection is available, helping to protect the light from the lightening and high quality material shell avoids the internal corroded or damaged by water or other things, assures long-term using.
