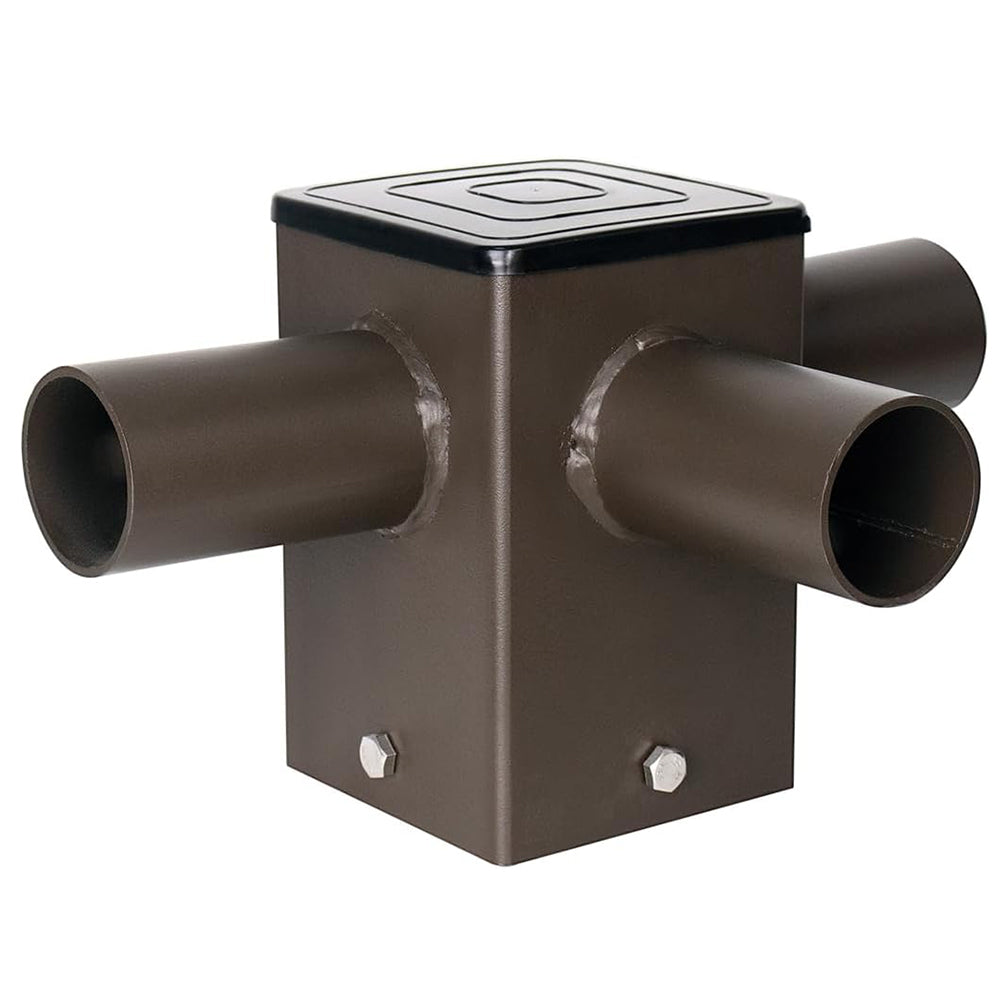

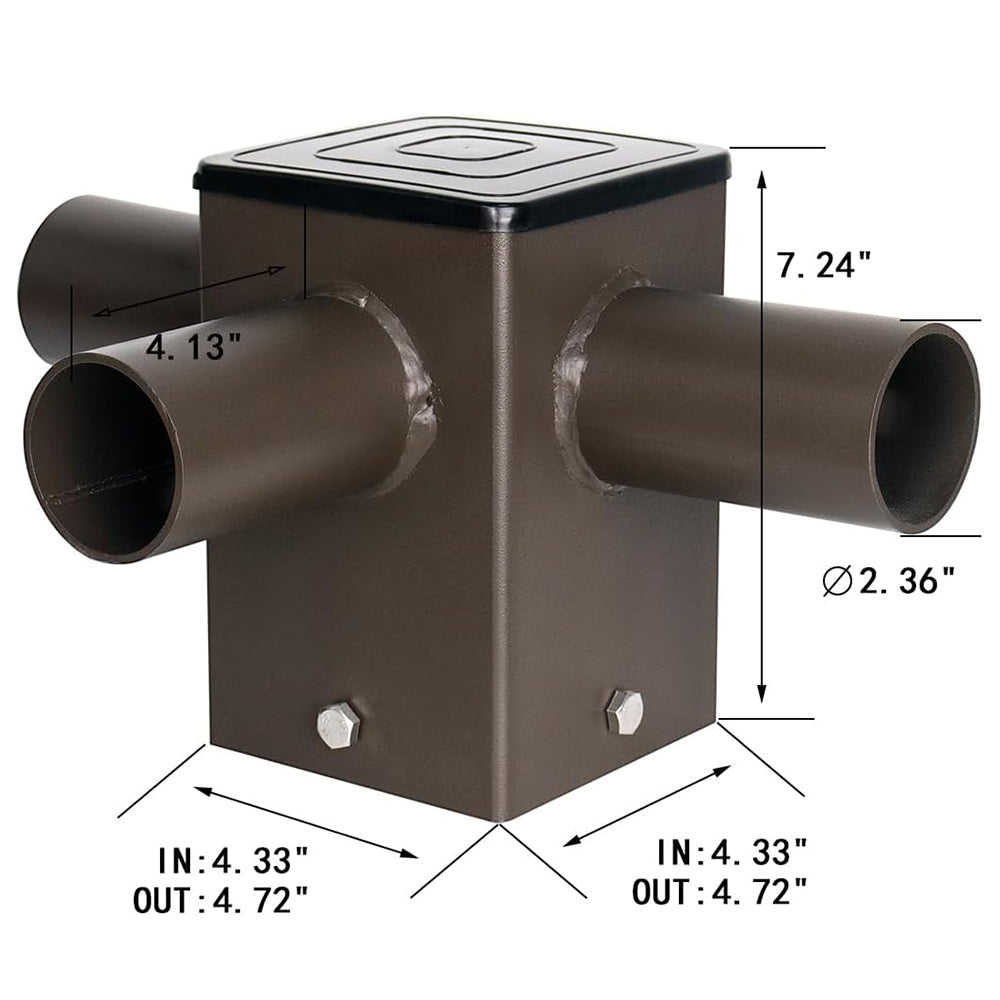

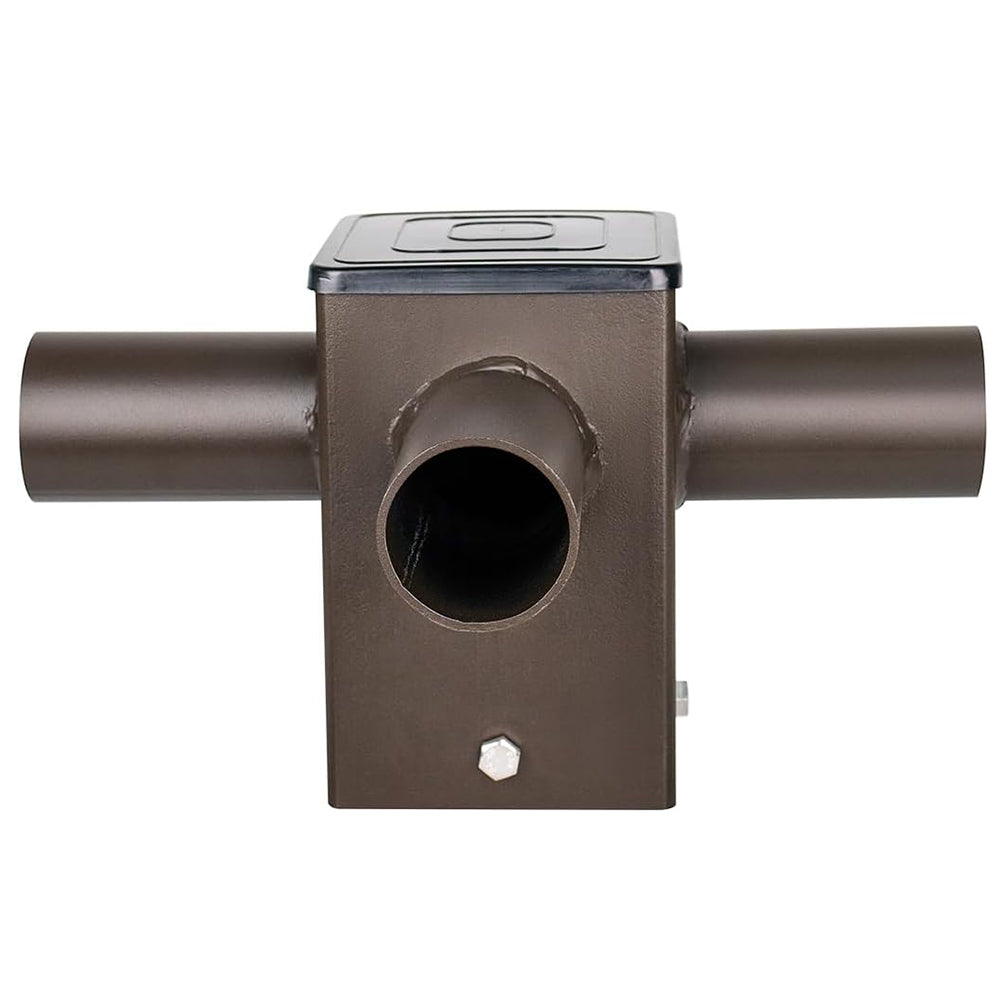

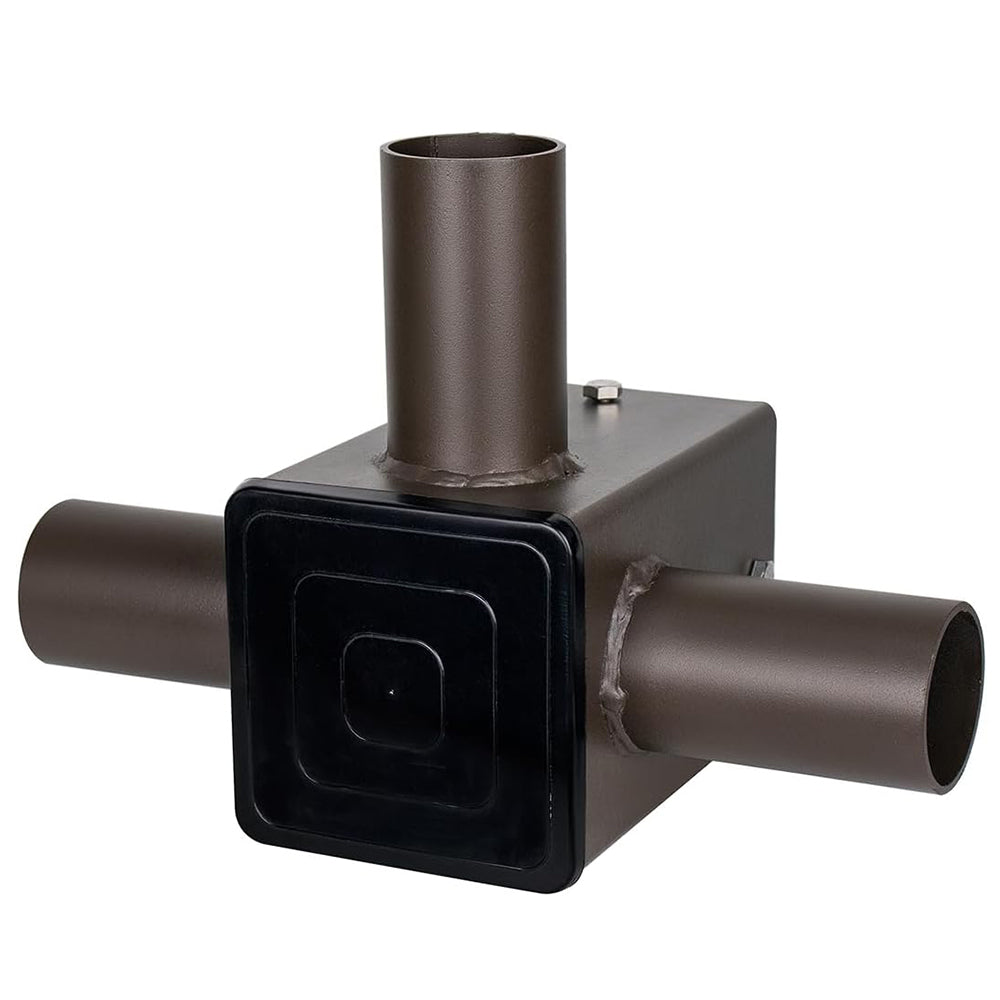

4" Square Pole 90° Triple Tenon Adapter for 2-3/8" Slip Fitter Lights

This heavy-duty 4-inch square pole 90° triple tenon adapter mounts externally over the top of a compatible 4" square light pole and provides three horizontal mounting positions for 2-3/8" slip fitter mount LED parking lot lights.

Designed for commercial parking lot and outdoor area lighting, the three-arm configuration allows up to three compatible LED parking lot lights or shoebox area lights to be installed from a single square pole top. The horizontal 90° configuration provides multi-directional lighting coverage for large outdoor areas.

Unlike an internal-fit adapter that inserts inside the pole opening, this model features an external-fit / over-the-pole design for compatible 4" square light poles.

Constructed from heavy-duty galvanized steel with a dark bronze finish for strength, durability, and dependable outdoor performance.

Ideal for parking lots, shopping centers, car dealerships, warehouse yards, industrial facilities, campuses, commercial properties, and other large outdoor areas requiring multiple LED parking lot lights on one pole.

Key Features:

External-Fit Design for 4" Square Poles
Designed to mount externally over the top of a compatible 4" square light pole for commercial parking lot lighting installations.

Triple Horizontal Tenon Configuration
Provides three horizontal fixture mounting positions from one square pole top, allowing up to three compatible LED parking lot lights to be installed on a single pole.

90° Multi-Direction Mounting
The three-arm configuration provides multi-directional fixture positioning for wider parking lot and outdoor area lighting coverage.

For 2-3/8" Slip Fitter LED Parking Lot Lights
Designed specifically for compatible LED parking lot lights and shoebox area lights equipped with 2-3/8" slip fitter mounts. The current page confirms 2-3/8" slip-fit fixture compatibility.

Three-Light Mounting Capacity
Converts one 4" square pole top into three fixture mounting positions for up to three compatible LED parking lot lights.

Heavy-Duty Galvanized Steel
Durable galvanized steel construction provides strength and long-term performance for commercial outdoor lighting installations.

Dark Bronze Finish
Professional dark bronze finish coordinates with common commercial light poles and LED parking lot fixtures.

Product Specifications:

Applications:

This 4" square pole 90° triple tenon adapter is designed for commercial outdoor lighting projects requiring up to three 2-3/8" slip fitter mount LED parking lot lights installed on a single square light pole.

Common applications include:

• LED parking lot lighting
• Shoebox area light installations
• Large commercial parking lots
• Parking lot intersections and perimeter areas
• Shopping centers and retail properties
• Car dealerships
• Warehouse and distribution center yards
• Industrial facilities
• School and university campuses
• Commercial property lighting
• Outdoor security lighting
• Parking lot lighting retrofit projects

The three-light configuration is especially useful for projects requiring multi-directional illumination from a single 4" square light pole, helping distribute LED parking lot lighting across multiple sections of a large outdoor area.

FAQ:

What is this triple tenon adapter used for?
This adapter allows up to three compatible 2-3/8" slip fitter mount LED parking lot lights to be installed on a single 4" square light pole.

What size light pole does this adapter fit?
This model is designed for a compatible 4" square light pole.

Is this an internal-fit or external-fit adapter?

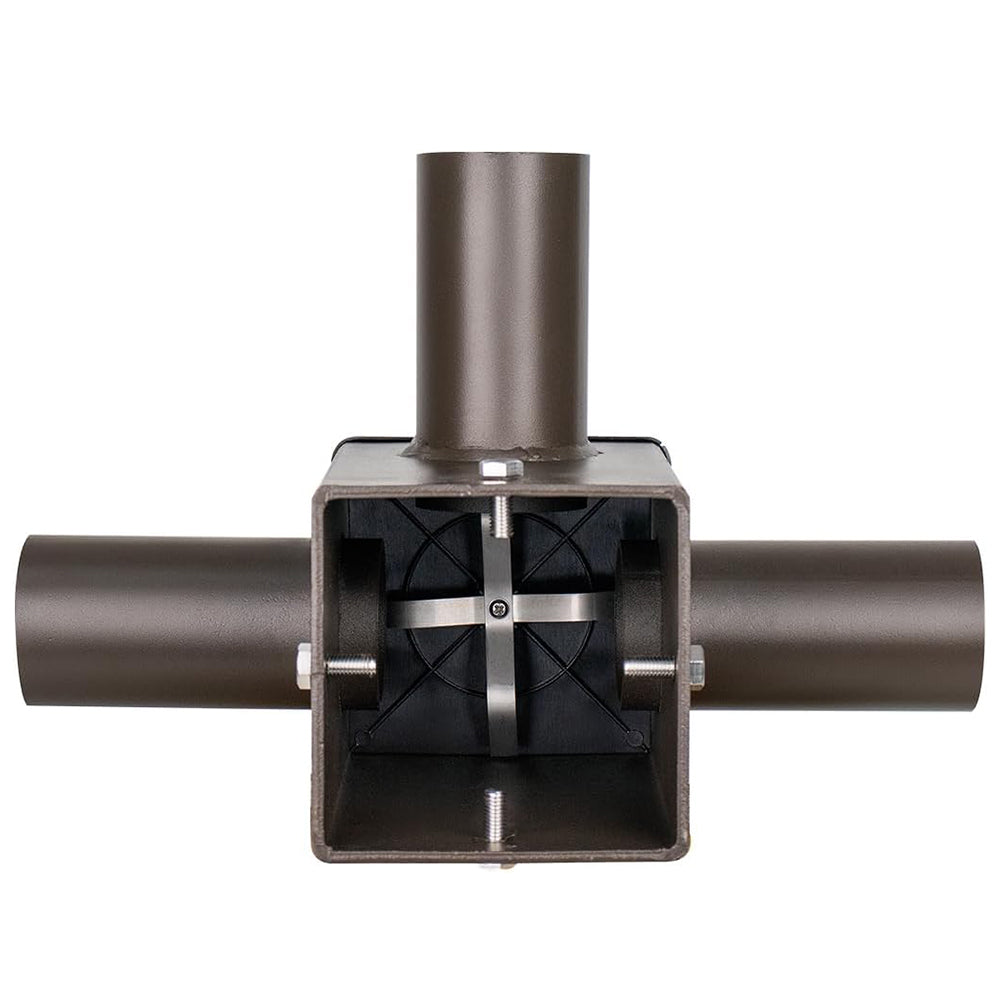

This model is an external-fit / over-the-pole adapter. It mounts over the outside of the 4" square pole top rather than inserting inside the pole opening.

How many LED parking lot lights can be installed?
The triple-tenon design provides three fixture mounting positions for up to three compatible LED parking lot lights.

What type of LED lights does this adapter fit?
It is designed for compatible LED parking lot lights and shoebox area lights equipped with 2-3/8" slip fitter mounts. The current product page confirms 2-3/8" slip-fit fixture compatibility.

What does the 90° triple configuration mean?
The adapter provides three horizontal fixture mounting positions in a multi-directional 90° configuration, allowing three lights to illuminate different sections of an outdoor area.

What is the difference between the Twin 90° and Triple 90° adapters?
The Twin 90° adapter provides two mounting positions for two 2-3/8" slip fitter LED parking lot lights. This Triple 90° adapter provides three mounting positions for up to three compatible lights.

Can I use direct-mount or arm-mount LED parking lot lights with this adapter?
This adapter is designed for 2-3/8" slip fitter mount LED parking lot lights. Direct-mount or arm-mount fixtures require the appropriate mounting hardware.

What material is the adapter made from?
It is constructed from heavy-duty galvanized steel with a dark bronze finish.

Are the LED lights included?
No. This product is the mounting adapter only. LED parking lot lights and the light pole are sold separately.
