Twin Spoke Bracket for 2-3/8" Tenon with 90° Horizontal Arms
Twin Spoke Bracket for 2-3/8" Tenon with 90° Horizontal Arms
In stock
Couldn't load pickup availability
Shipping: US free shipping
Shipping by: FedEx UPS
Delivery time: 2-4 business days after payment
Bigger Quantity Cheaper Price
| Minimum Same Variant Quantity | Discount |
| 20-49 | 3% |
| 50-99 | 5% |
| 100+ | 8% |
Product Description：

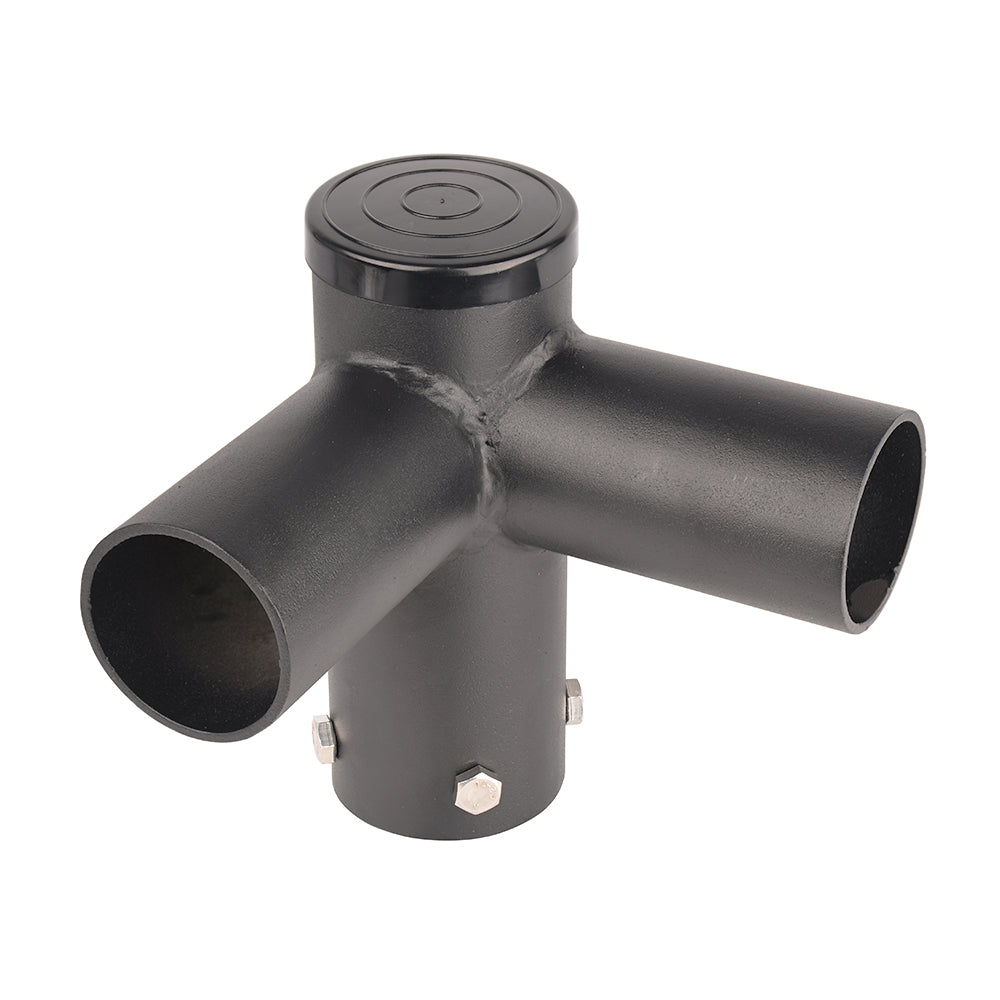

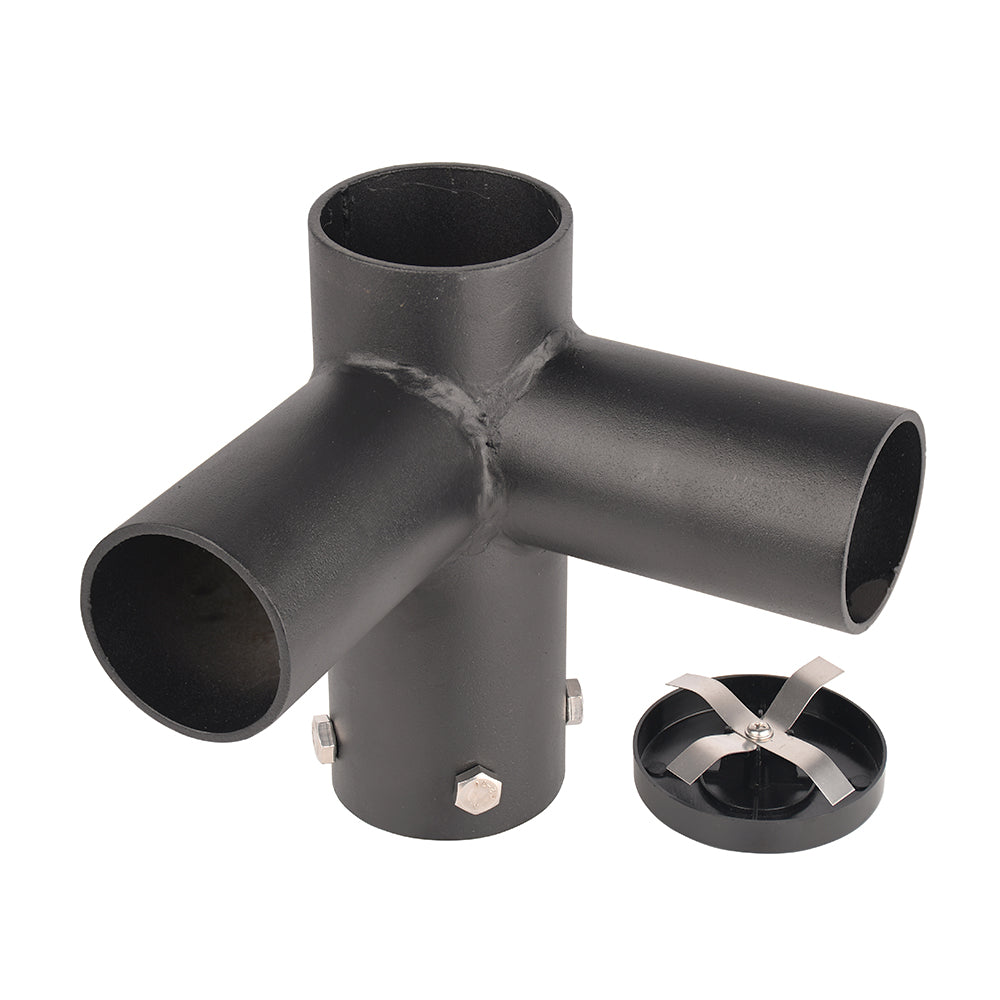

This heavy-duty twin spoke tenon bracket mounts onto an existing 2-3/8 inch tenon and provides two horizontal 2-3/8" tenons positioned at a 90-degree angle for mounting two compatible LED parking lot lights, shoebox area lights, or other commercial outdoor fixtures equipped with slip fitters.

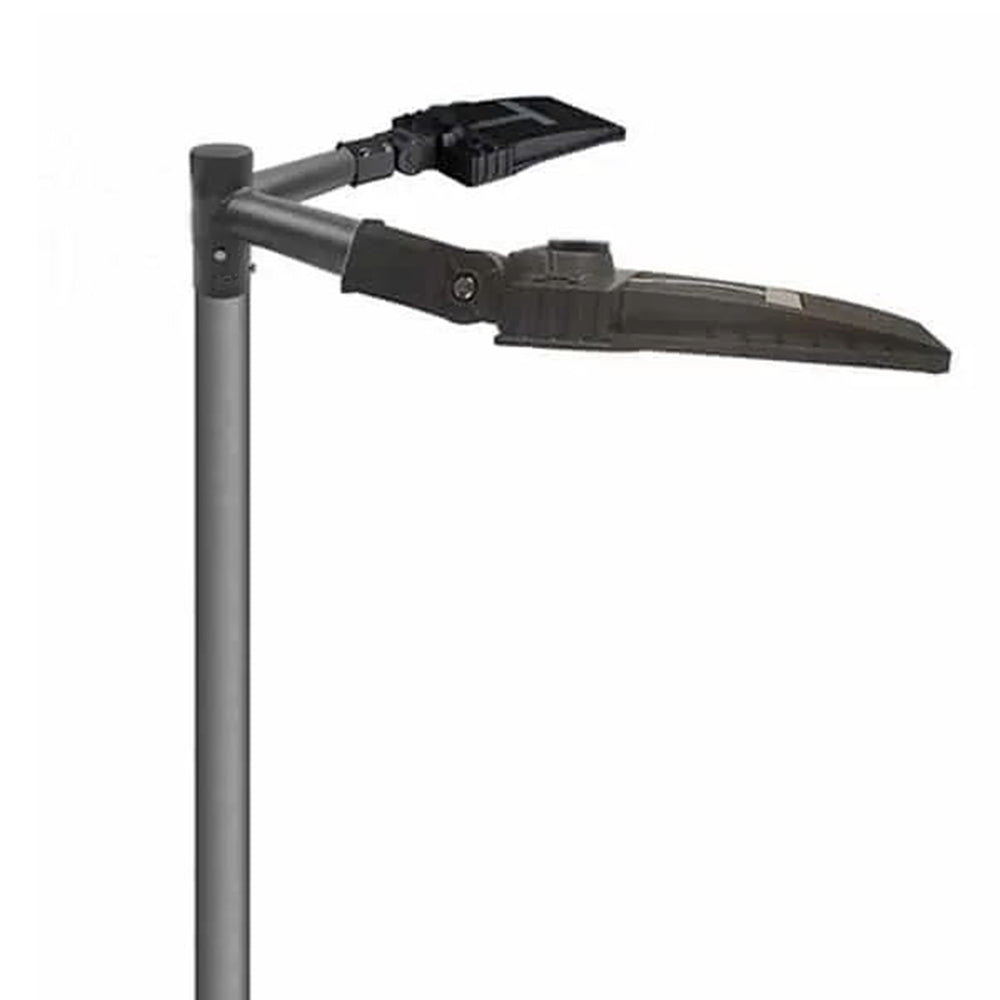

Designed for commercial outdoor lighting installations, this 90 degree double tenon adapter converts one existing vertical 2-3/8" tenon into two horizontal fixture mounting points. The twin spoke configuration allows two compatible LED fixtures to illuminate different directions from a single existing tenon.
Each horizontal arm provides a standard 2-3/8" OD tenon for compatible commercial LED fixtures using slip fitter mounts. This makes the bracket ideal for parking lot lighting, roadway lighting, commercial area lighting, and LED retrofit projects requiring two fixtures mounted at a 90-degree configuration.
Constructed from heavy-duty galvanized steel with a dark bronze finish, this double spoke mounting bracket provides strength, stability, and durability for demanding commercial outdoor environments.
Key Features
Mounts on an Existing 2-3/8" Tenon
Designed to install onto a compatible existing 2-3/8 inch tenon, creating two additional horizontal mounting points for commercial LED fixtures.
Twin Spoke 90 Degree Design
Two horizontal arms are positioned at a 90-degree angle, allowing two compatible LED fixtures to illuminate different directions.
Two 2-3/8" Horizontal Tenons
Provides two built-in 2-3/8" OD tenons for mounting two compatible LED parking lot lights, shoebox lights, area lights, or other fixtures equipped with slip fitters.
Mount Two LED Fixtures from One Tenon
Converts one existing tenon mounting location into a dual-fixture configuration for commercial outdoor area lighting projects.
Heavy-Duty Galvanized Steel Construction
Constructed from durable galvanized steel for strength, stability, and long-term outdoor performance.
Dark Bronze Finish
Coordinates with common commercial light poles, LED shoebox lights, parking lot fixtures, and outdoor area lighting systems.
Built-In Wiring Access
Provides wiring access for practical installation of compatible commercial LED fixtures. The current product page also identifies wiring access as a feature.

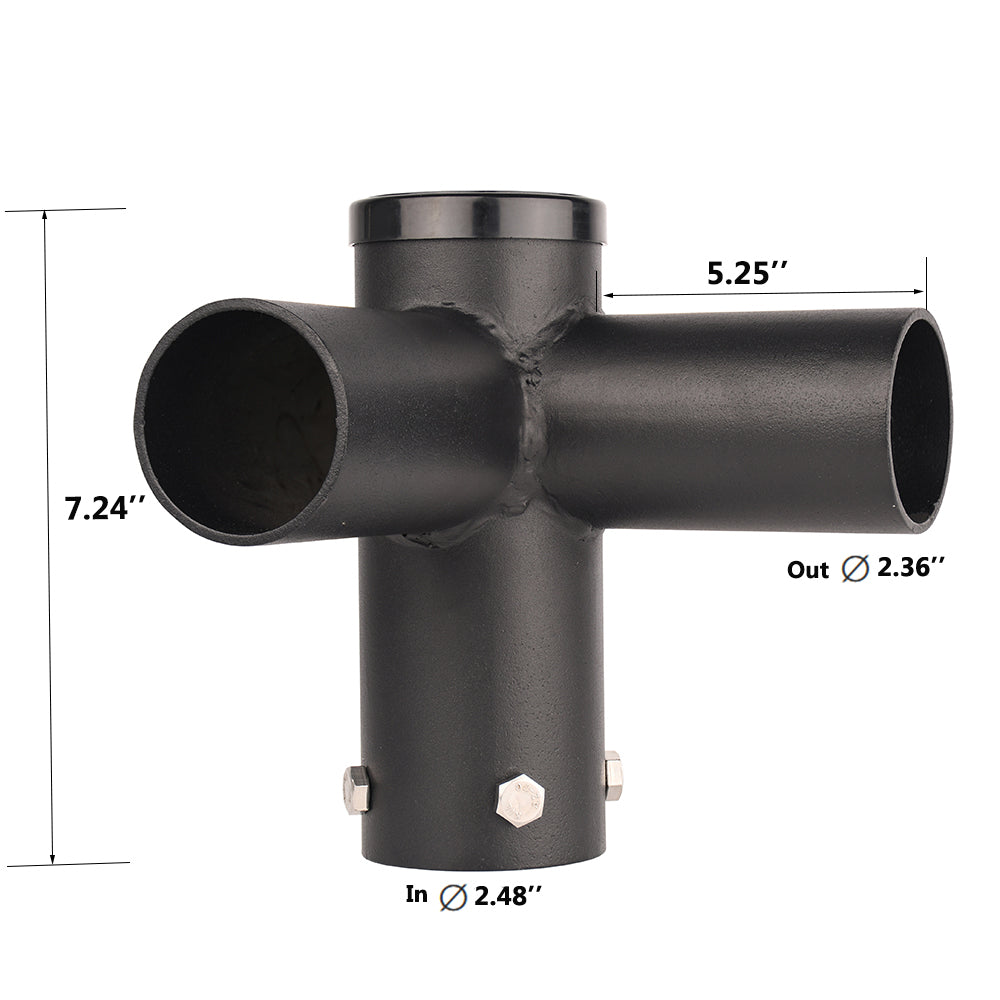

Product Specifications：
| Specification | Details |
|---|---|
| Product Type | Twin Spoke Tenon Mount Bracket |
| Input / Mounting Connection | Existing 2-3/8" Tenon |
| Configuration | Twin Spoke / Double Tenon |
| Number of Fixture Tenons | 2 |
| Fixture Tenon Size | 2-3/8 Inch OD |
| Fixture Tenon Orientation | Horizontal |
| Angle Between Arms | 90 Degrees |
| Fixture Mount | Slip Fitter |
| Fixture Capacity | 2 Compatible LED Fixtures |
| Wiring Access | Yes |
| Material | Heavy-Duty Galvanized Steel |
| Finish | Dark Bronze |
| Compatible Fixtures | LED Parking Lot, Shoebox & Area Lights |
| Application | Commercial Outdoor Lighting |
| Stock | U.S. Warehouse |
| Shipping | Free U.S. Shipping |
| Carrier | FedEx / UPS |
| Typical Delivery | 2–4 Business Days |
Applications：
This twin spoke tenon bracket is designed for commercial outdoor lighting installations requiring two LED fixtures mounted at a 90-degree configuration from an existing 2-3/8" tenon.
Common applications include:
- LED parking lot lighting
- Shoebox area light installations
- Parking lot corners and perimeter areas
- Commercial area lighting
- Street and roadway lighting
- Shopping center parking lots
- Car dealership lighting
- Warehouse exterior lighting
- School and university campuses
- Industrial facility lighting
- Security and perimeter lighting
- LED parking lot retrofit projects
FAQ：
What size tenon does this twin spoke bracket mount on?
This bracket is designed to mount onto a compatible existing 2-3/8 inch tenon.
How many LED lights can this bracket support?
The twin spoke bracket provides two horizontal tenons for mounting two compatible slip fitter LED fixtures.
What size are the two horizontal tenons?
Each horizontal arm provides a standard 2-3/8 inch OD tenon for a compatible slip fitter fixture.
What is the angle between the two arms?
The two horizontal mounting arms are positioned at a 90-degree angle.
Can I use this bracket with LED shoebox lights?
Yes. It is designed for compatible LED shoebox lights, parking lot lights, area lights, and similar commercial fixtures using 2-3/8" slip fitters.
What is the advantage of a 90-degree twin spoke bracket?
It allows two compatible LED fixtures to be mounted in different directions from one existing tenon, making it useful for corners, perimeter areas, and locations requiring lighting coverage in two directions.
What material is the bracket made from?
It is constructed from heavy-duty galvanized steel with a dark bronze finish.
Does the bracket provide wiring access?
Yes. The bracket provides wiring access for compatible LED fixtures.
Are the LED fixtures included?
No. This listing is for the twin spoke mounting bracket. Compatible LED fixtures are sold separately.
Do you offer quantity discounts?
Yes. The current page offers 3% off for 20–49 pieces, 5% for 50–99 pieces, and 8% for 100+ pieces.
