Product Description:

Mount LED parking lot lights, shoebox lights, street lights and area lights securely to large round wood or concrete poles with this heavy-duty wrap-around wood pole mounting bracket. Designed for 7–10 inch diameter round poles, the bracket features 2-3/8" O.D. tenons compatible with standard slip fitter mounted outdoor light fixtures.

Available in 1-arm, 2-arm, 3-arm and 4-arm configurations for single or multiple fixture installations. The wrap-around design mounts securely around the pole without requiring drilling or modification to the pole.

Key Features:

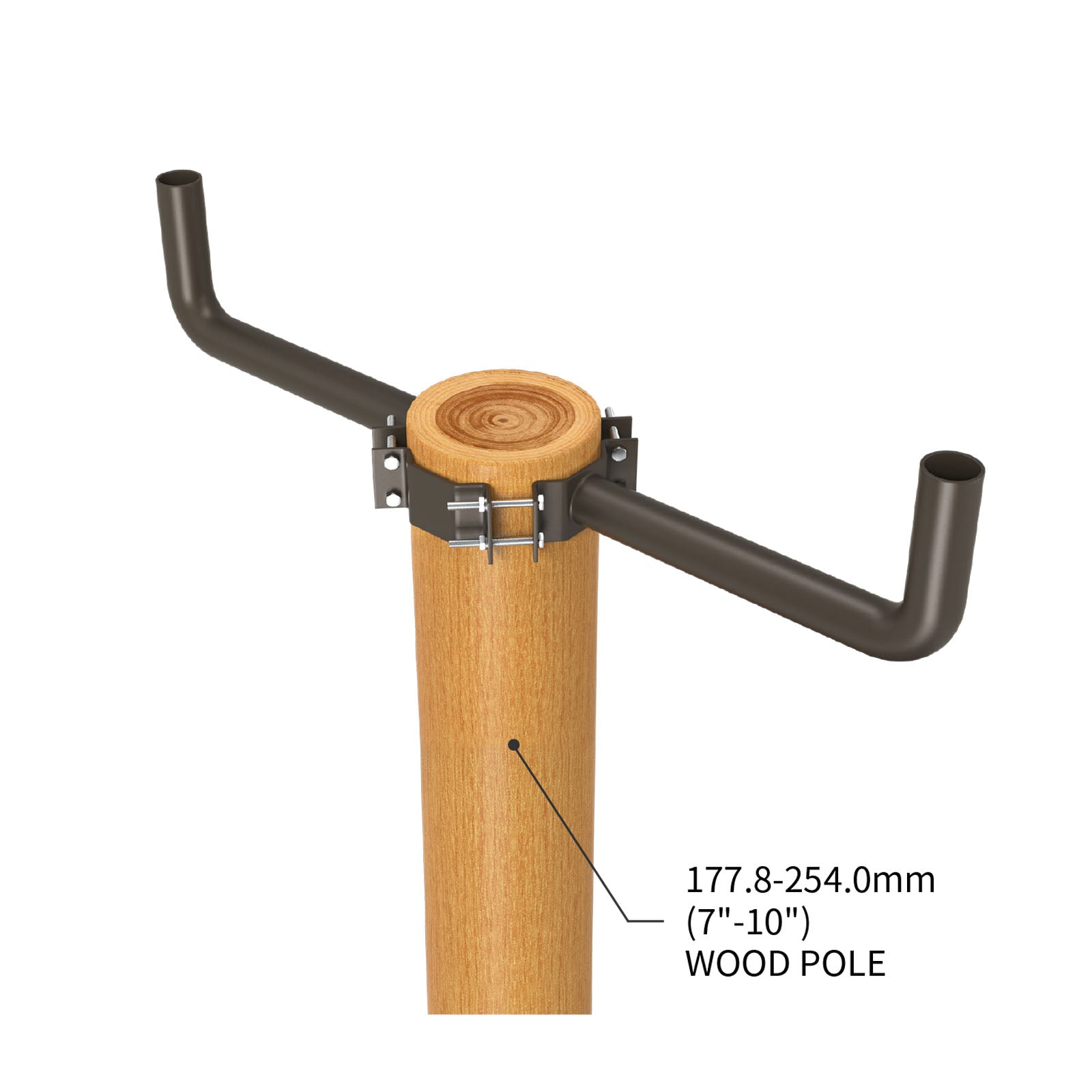

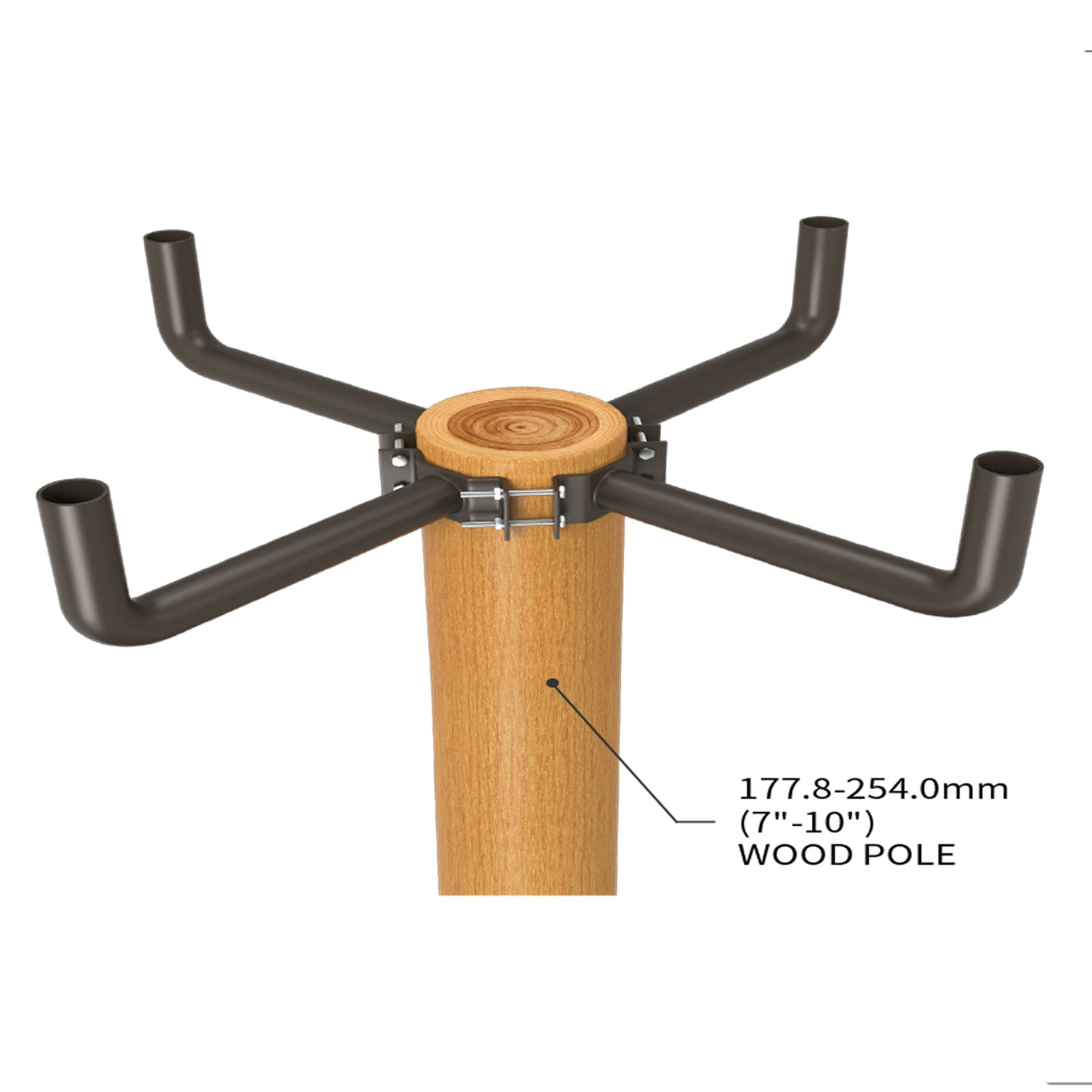

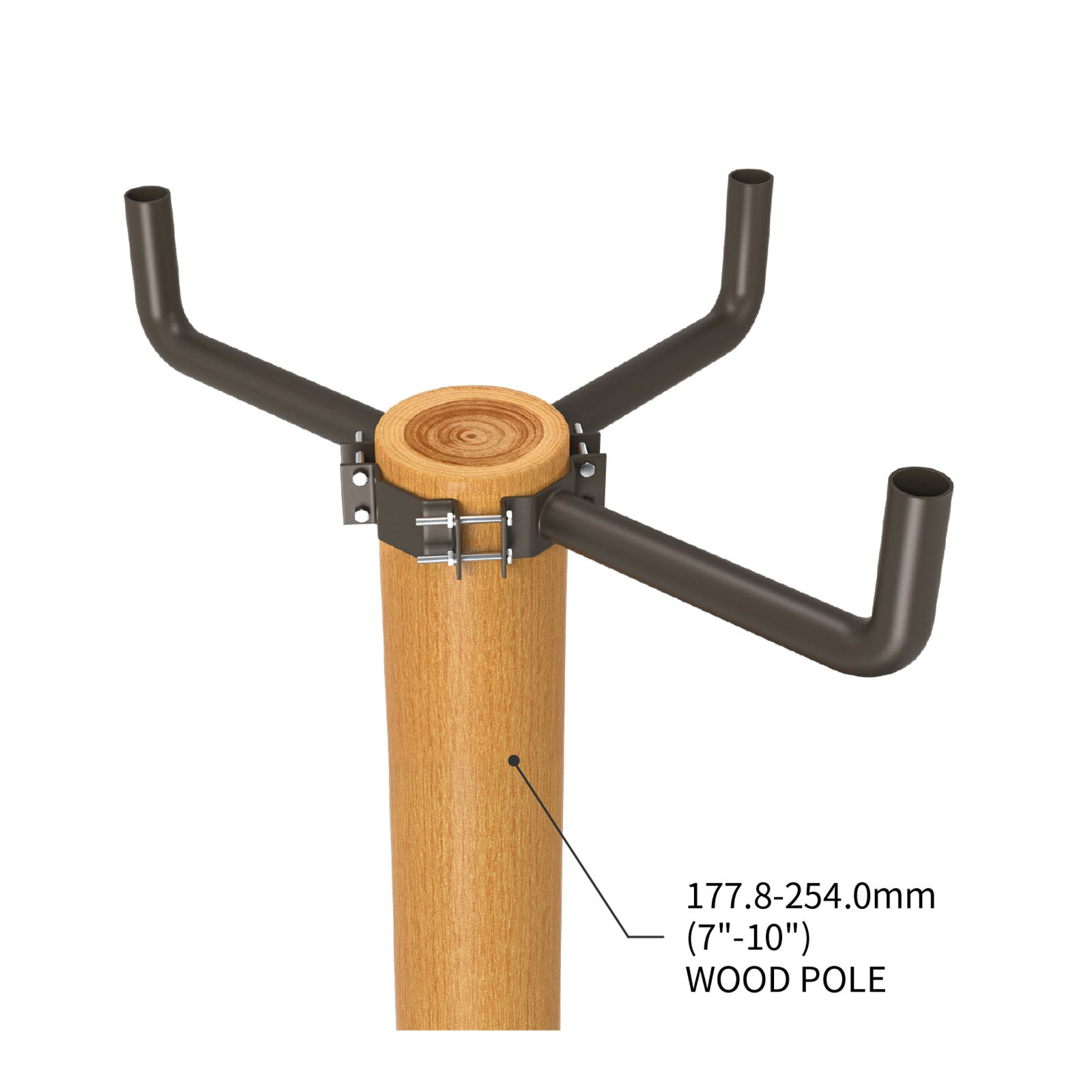

Designed for 7–10 Inch Wood & Concrete Poles

This wrap-around mounting bracket is specifically designed for round poles with diameters from 7" to 10".

The bracket clamps around the pole, eliminating the need to drill mounting holes directly into the wood or concrete pole. This makes it useful for both new outdoor lighting projects and retrofit installations where existing utility poles are being reused.

Standard 2-3/8" Tenon for Slip Fitter Lights

Each arm terminates in a 2-3/8" O.D. tenon, one of the common mounting sizes used with commercial outdoor LED lighting.

It can be paired with compatible:

• LED parking lot lights
• LED shoebox lights
• LED area lights
• LED street lights
• Roadway lights
• Commercial outdoor security lights
• Slip fitter mounted outdoor LED fixtures

Before ordering, verify that your light fixture's slip fitter is designed for a 2-3/8" O.D. tenon.

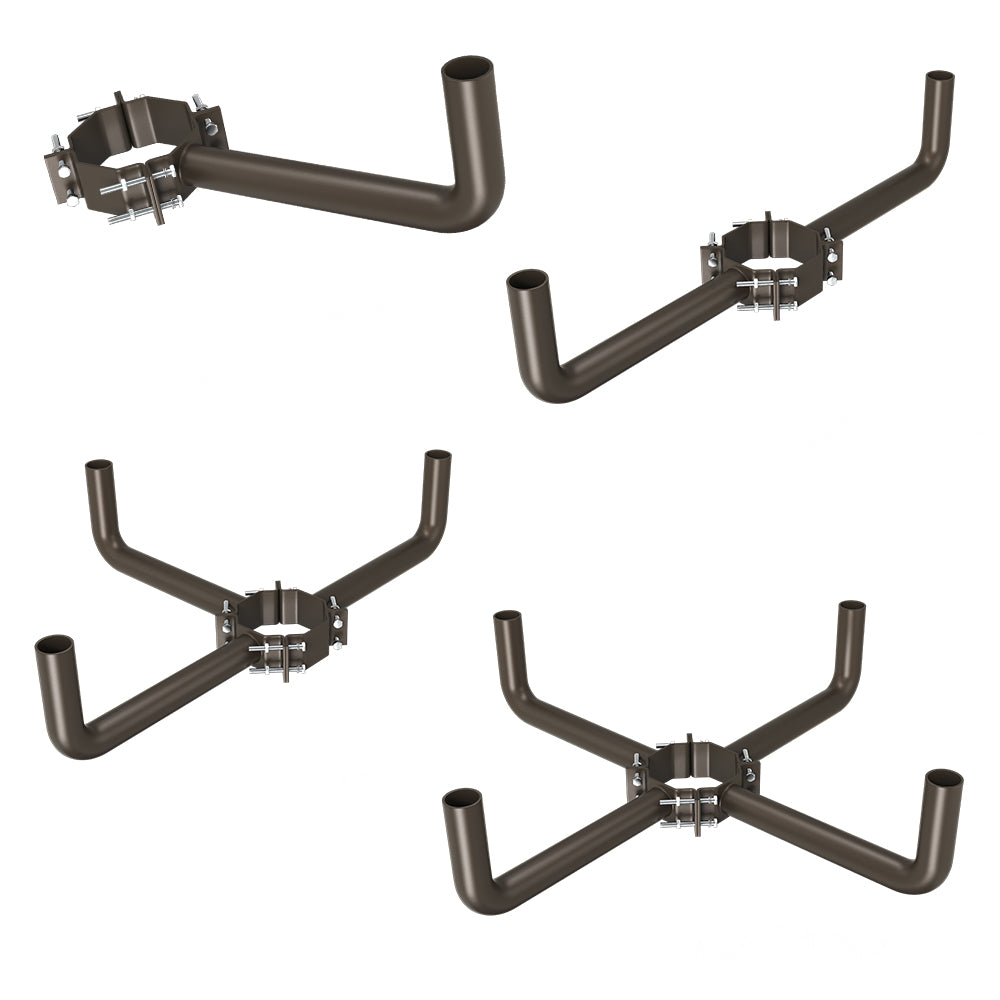

1, 2, 3 & 4 Arm Configurations

Choose the bracket configuration according to the number of fixtures required for your project.

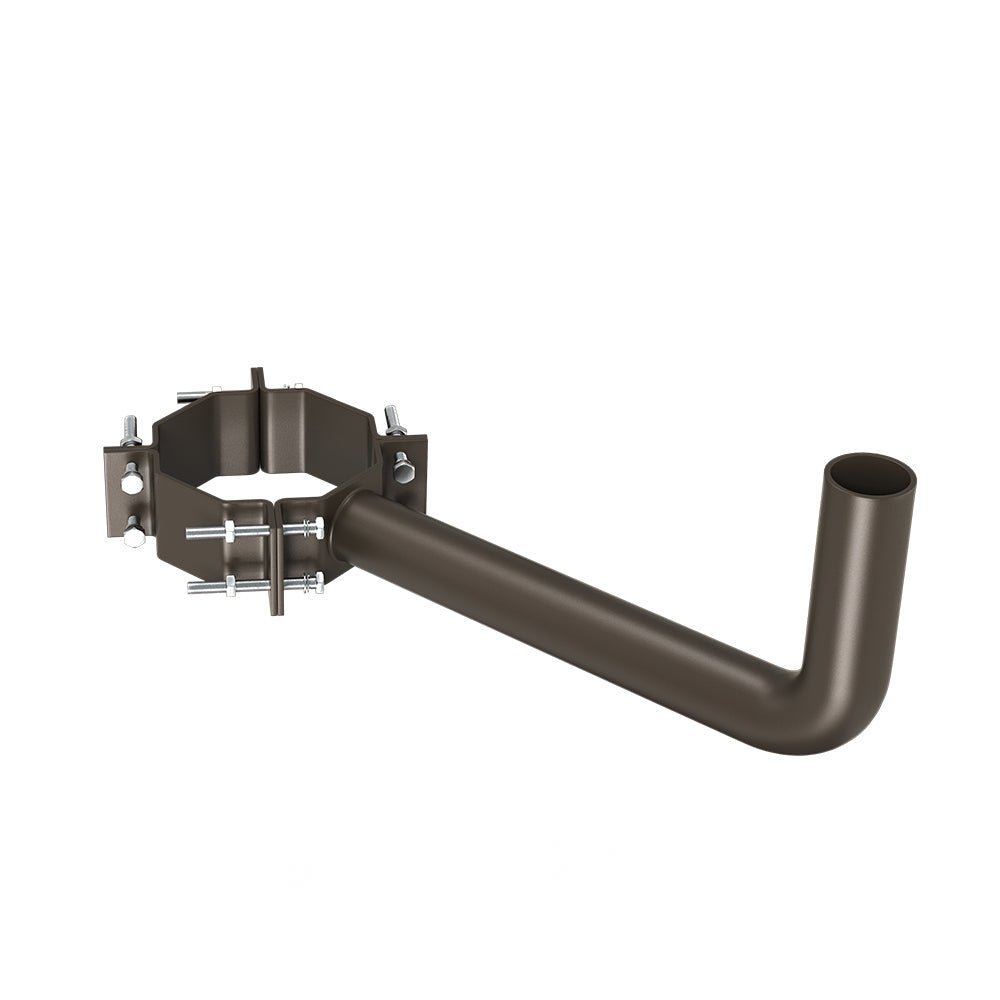

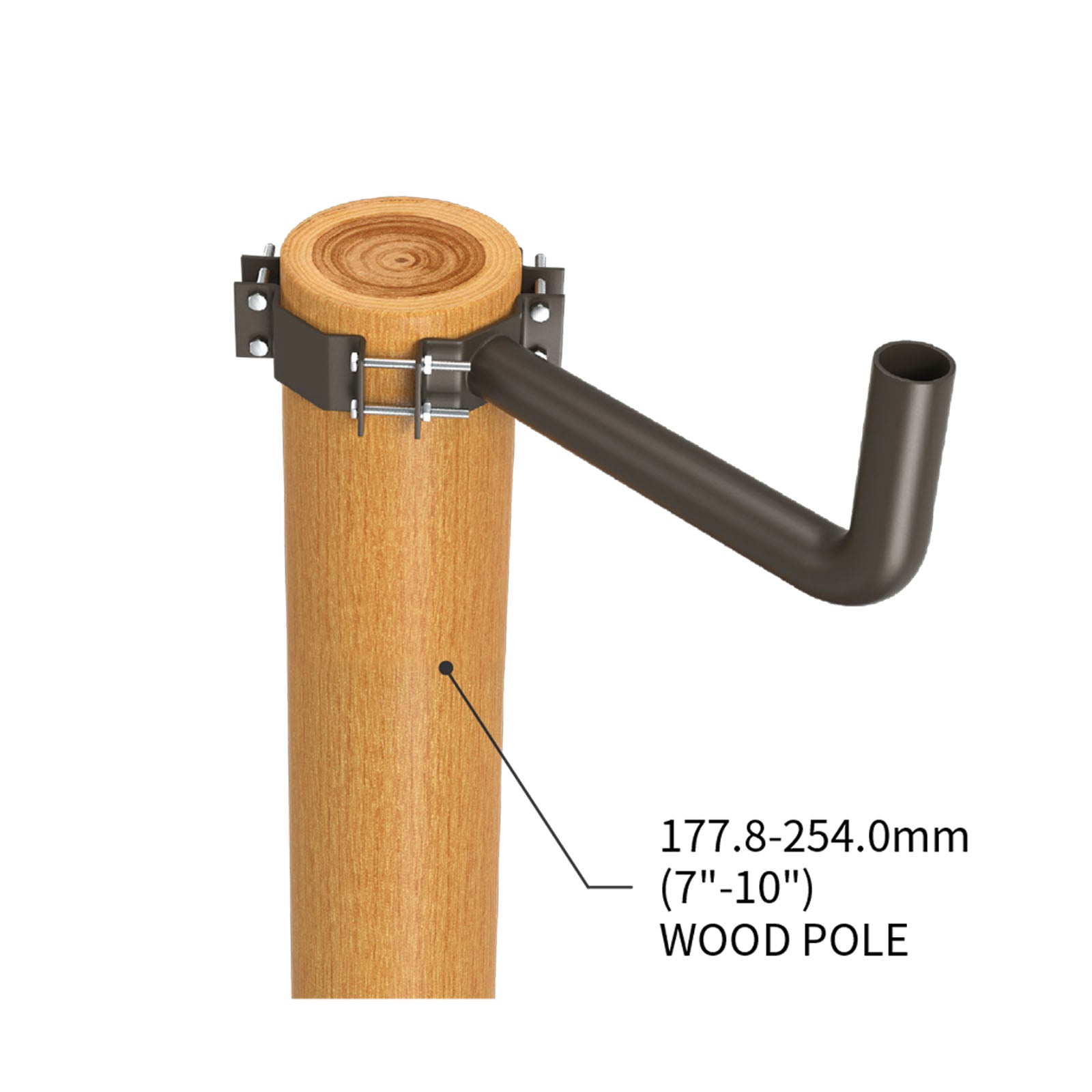

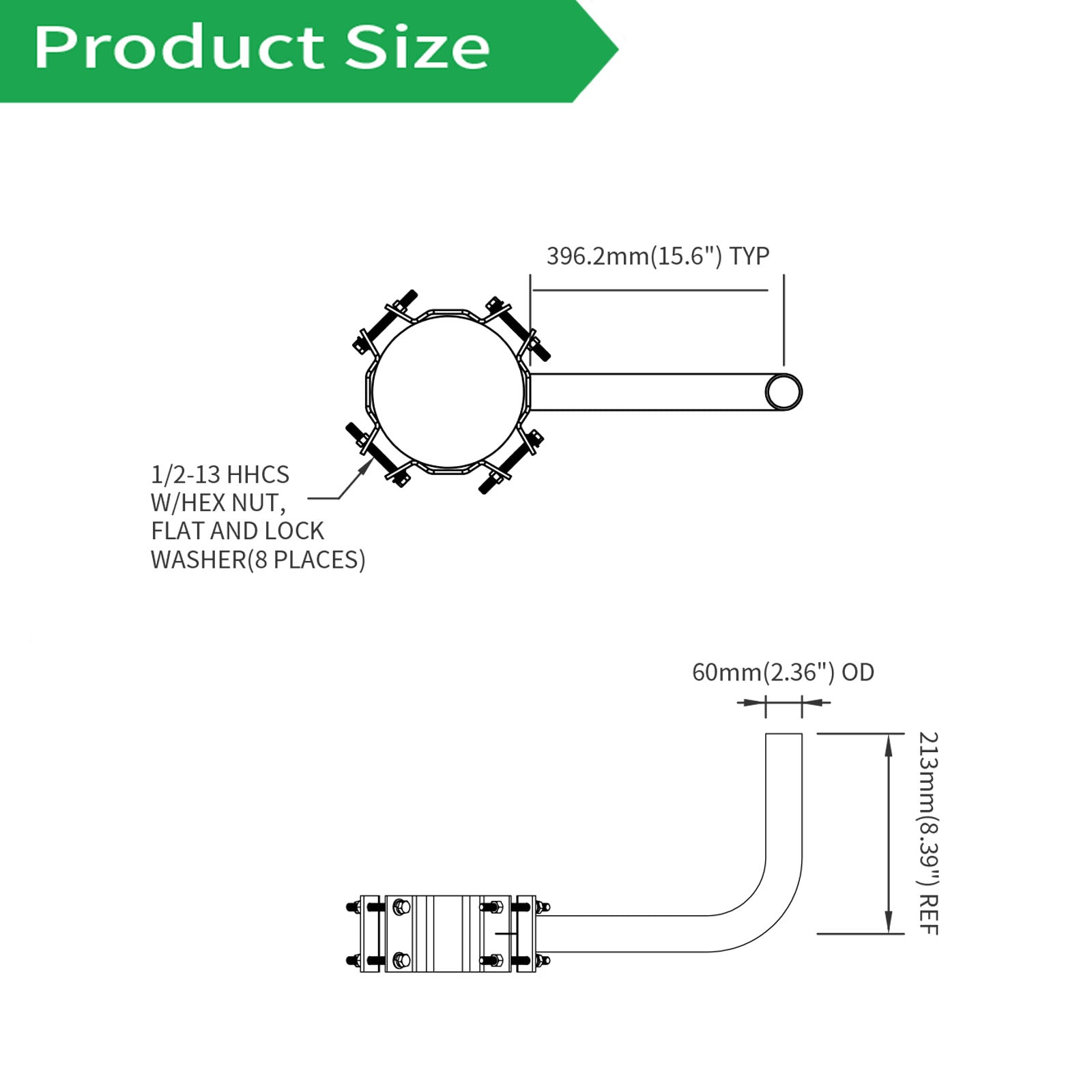

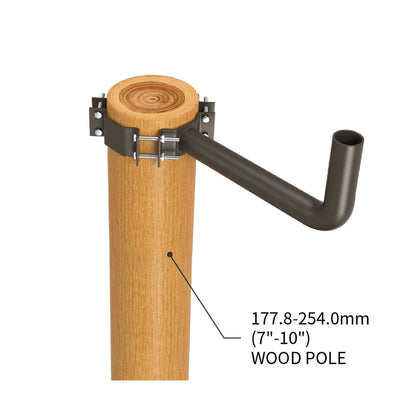

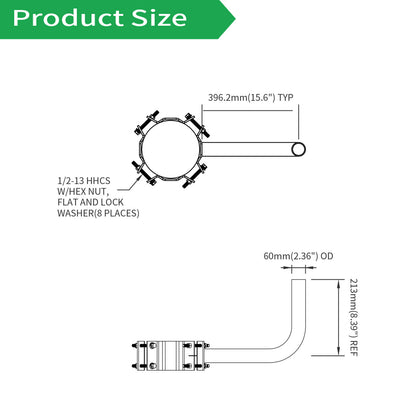

1 Arm – Mount one LED fixture to a wood or concrete pole.

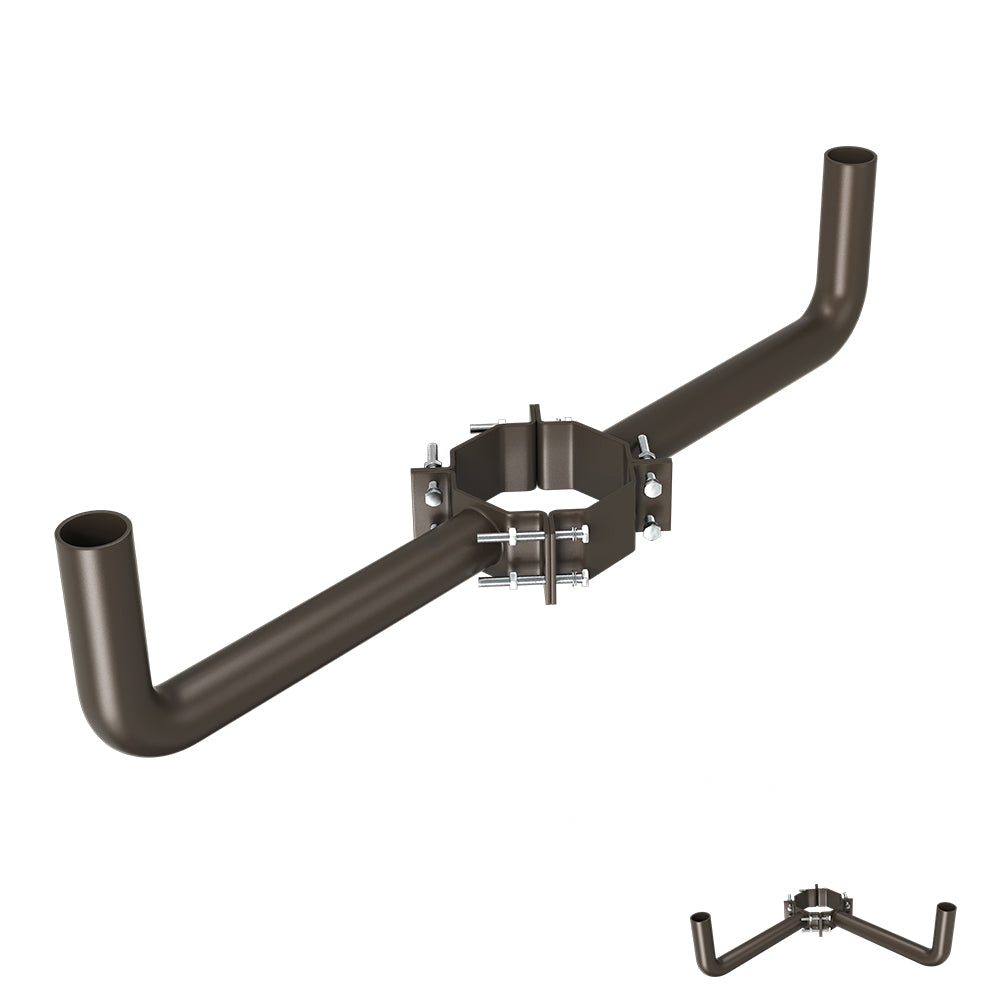

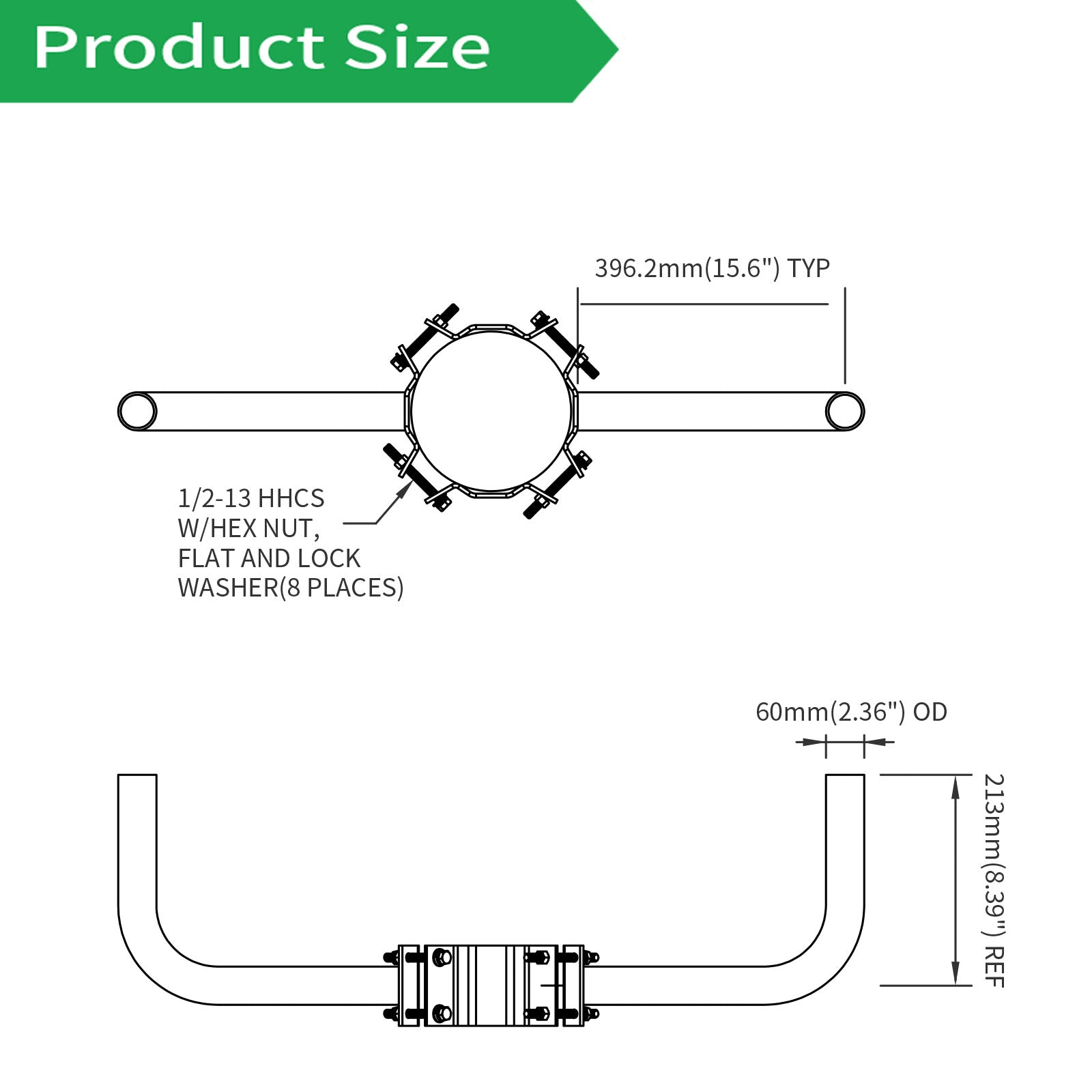

2 Arms – Mount two fixtures for broader lighting coverage.

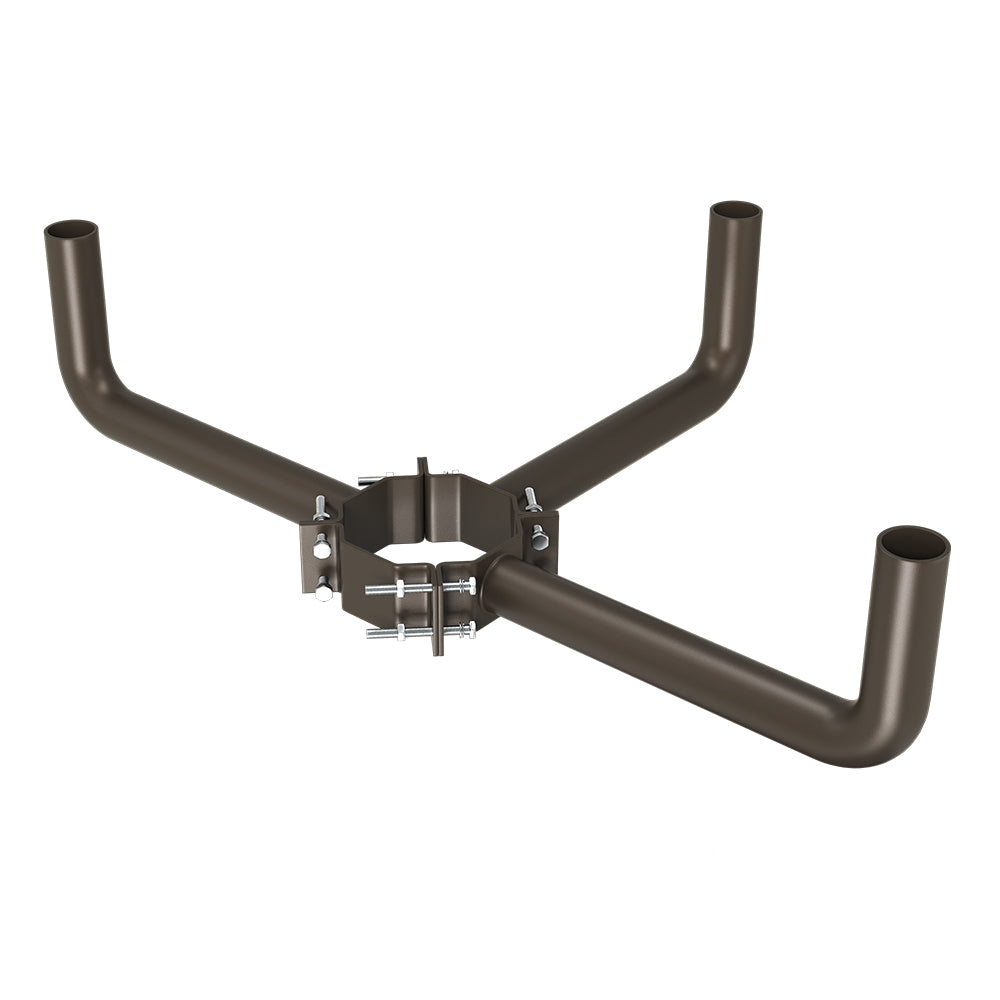

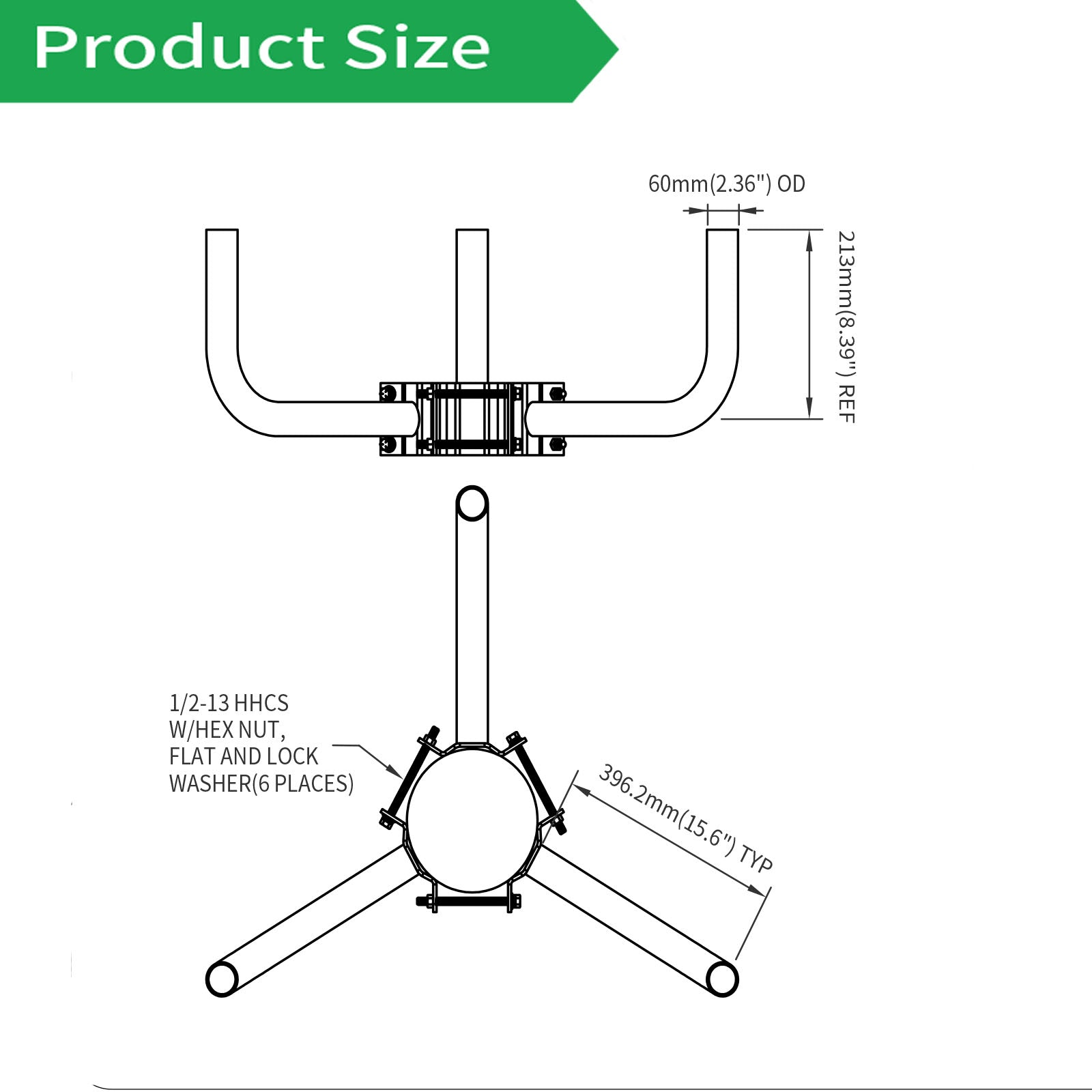

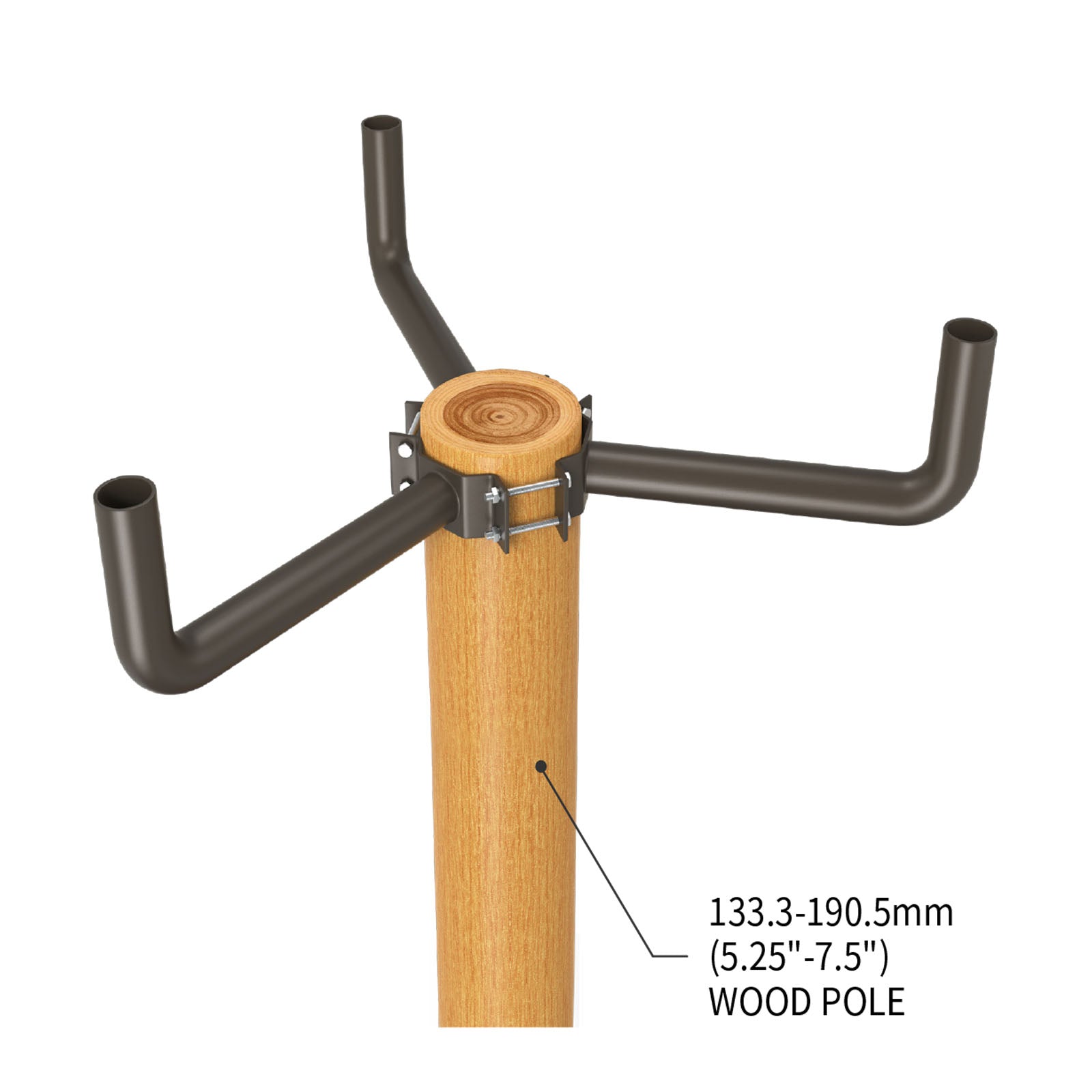

3 Arms – Install three outdoor fixtures from one pole.

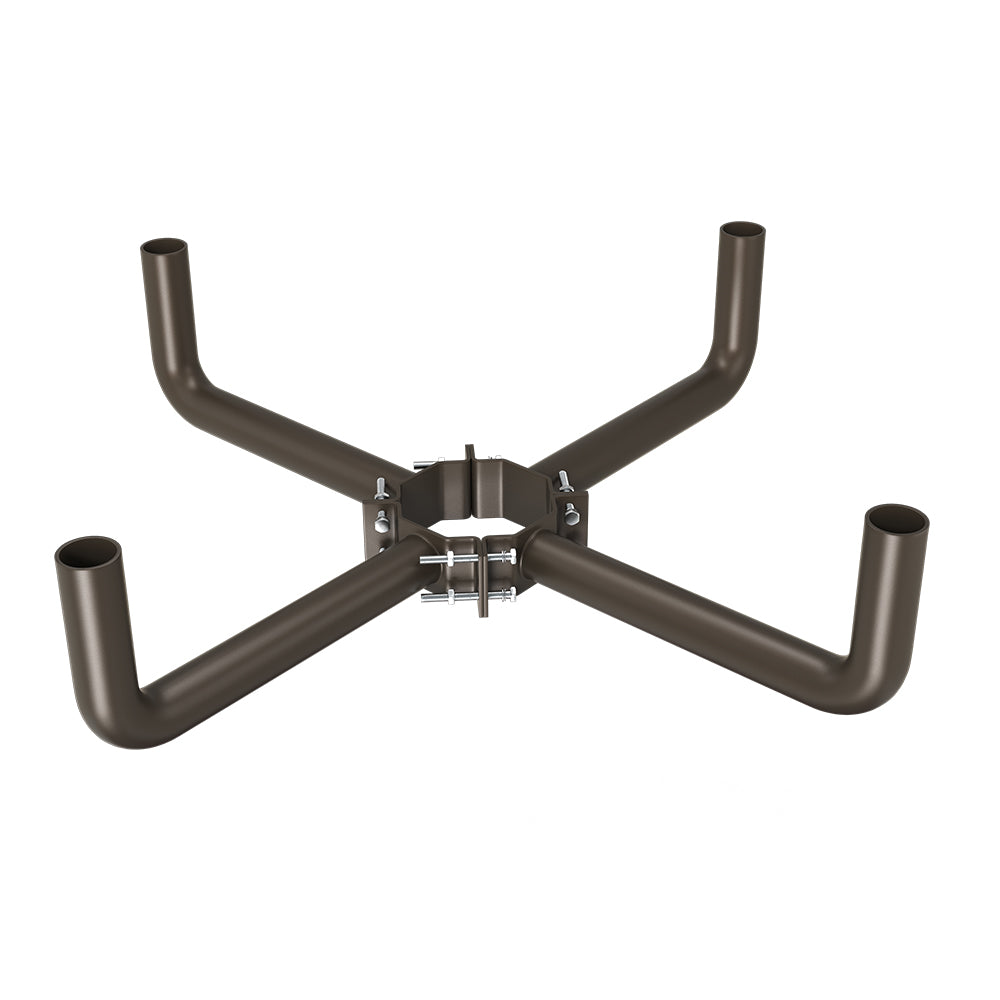

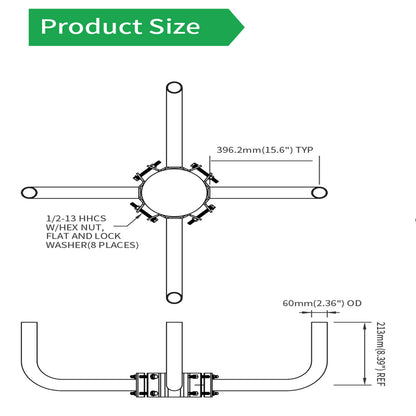

4 Arms – Mount four LED area or parking lot lights from a single pole for large-area illumination.

Choierlight's existing product information confirms these 1–4 arm options for this bracket family.

Heavy-Duty Outdoor Construction

The mounting bracket uses a durable steel construction designed for outdoor commercial lighting installations. The wrap-around structure distributes the mounting connection around the pole and provides a stable mounting point for compatible outdoor fixtures.

This makes the bracket suitable for commercial and industrial lighting projects where existing wooden or concrete poles need to support LED area lighting.

No Pole Drilling Required

One of the major advantages of this wood pole wrap-around bracket is installation without drilling directly into the pole.

The bracket wraps around the existing round pole and is secured with the supplied mounting hardware. This can simplify installation compared with mounting methods that require modifying the existing pole.

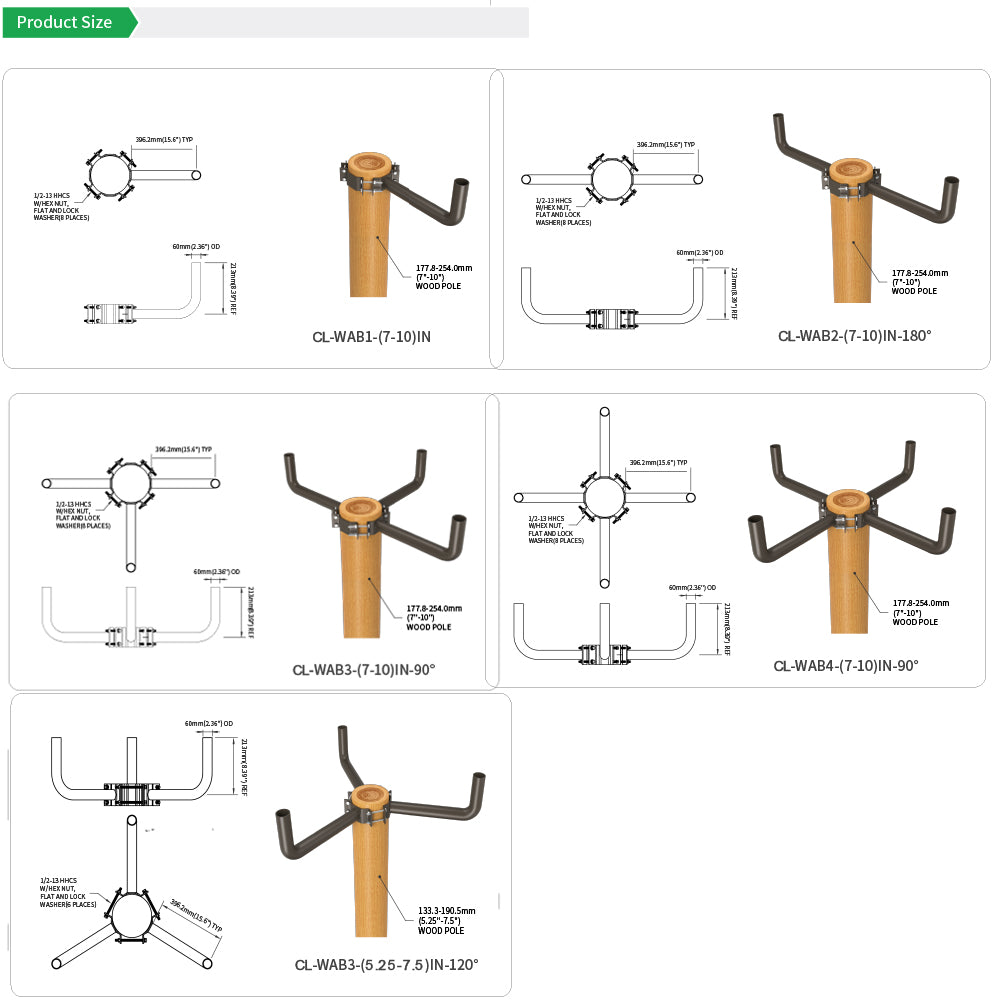

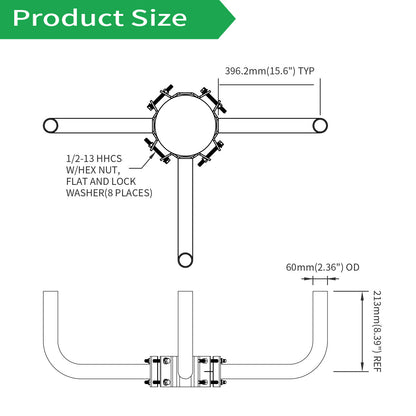

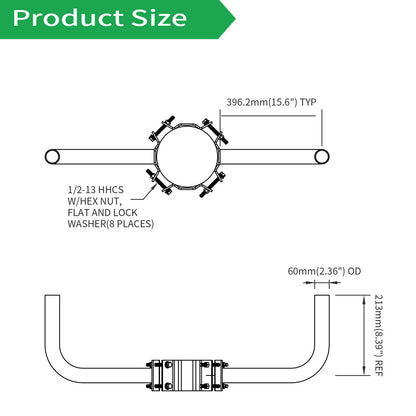

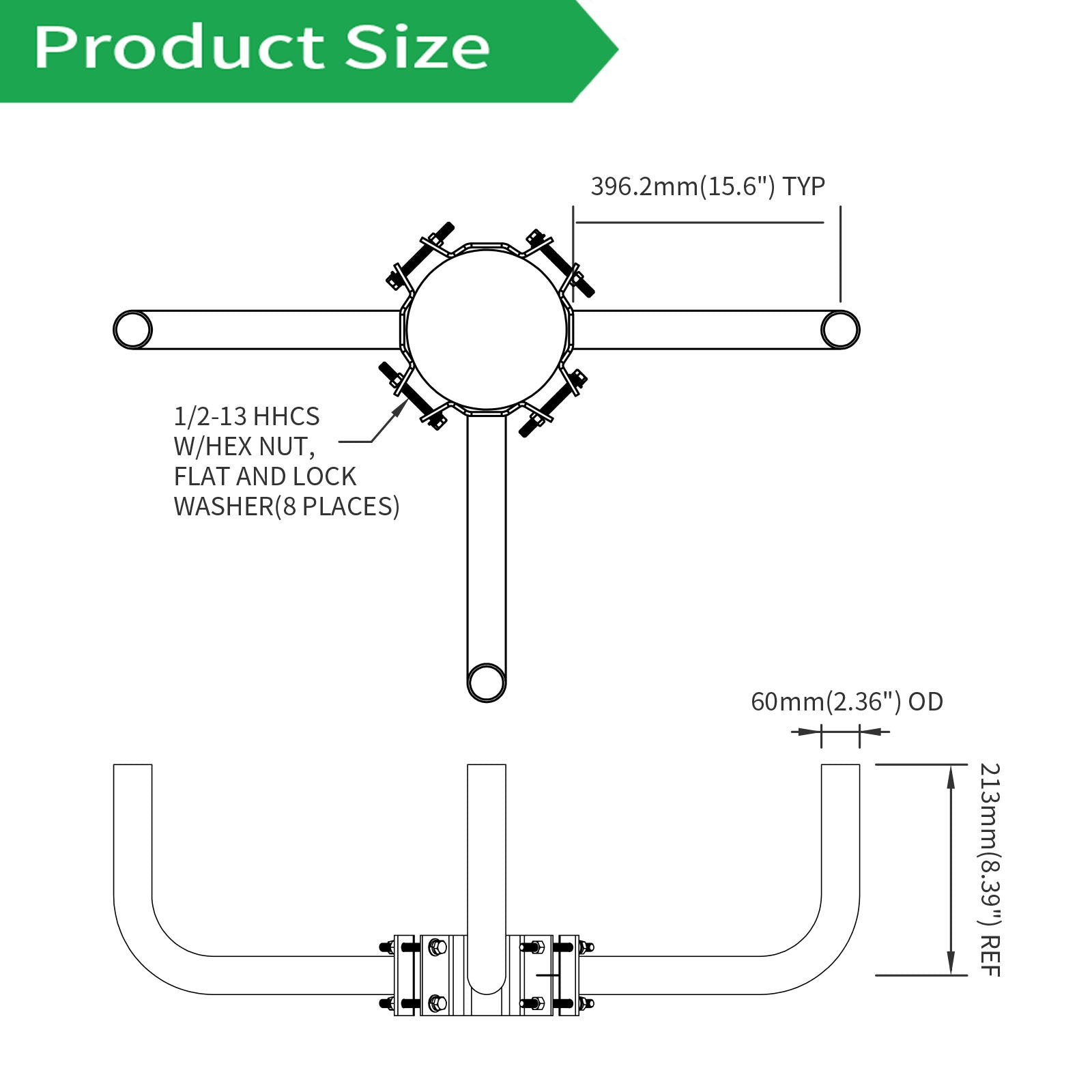

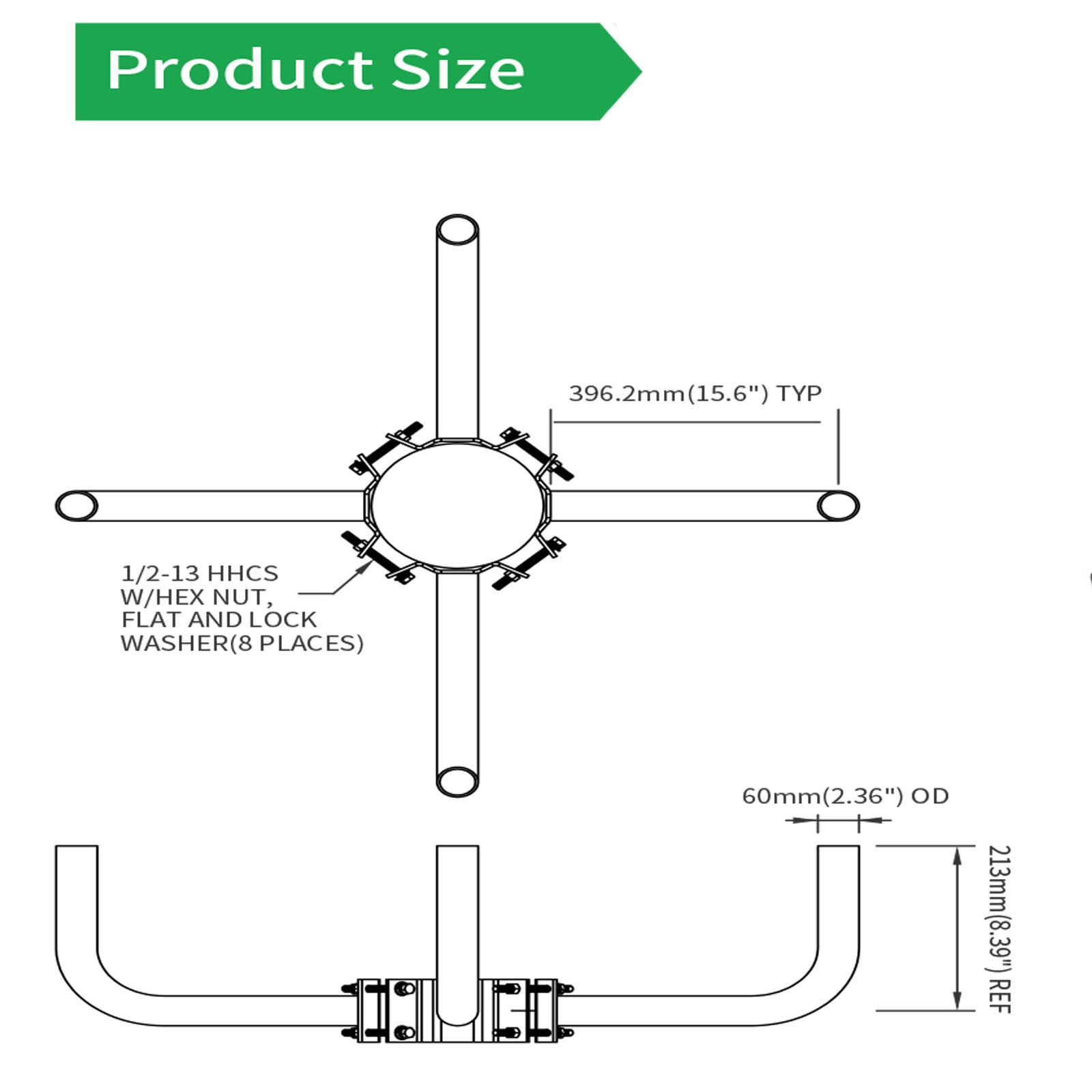

Product Specifications:

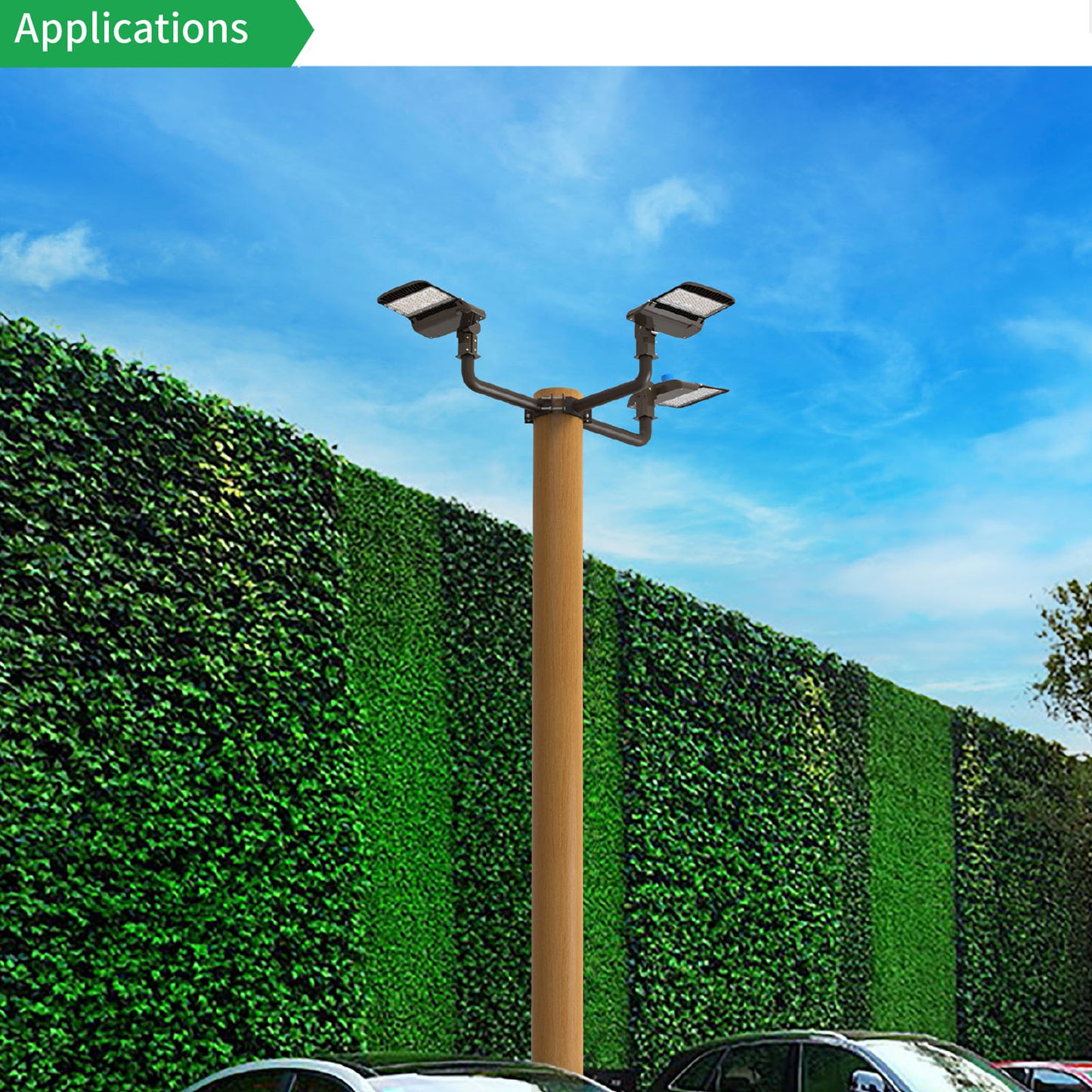

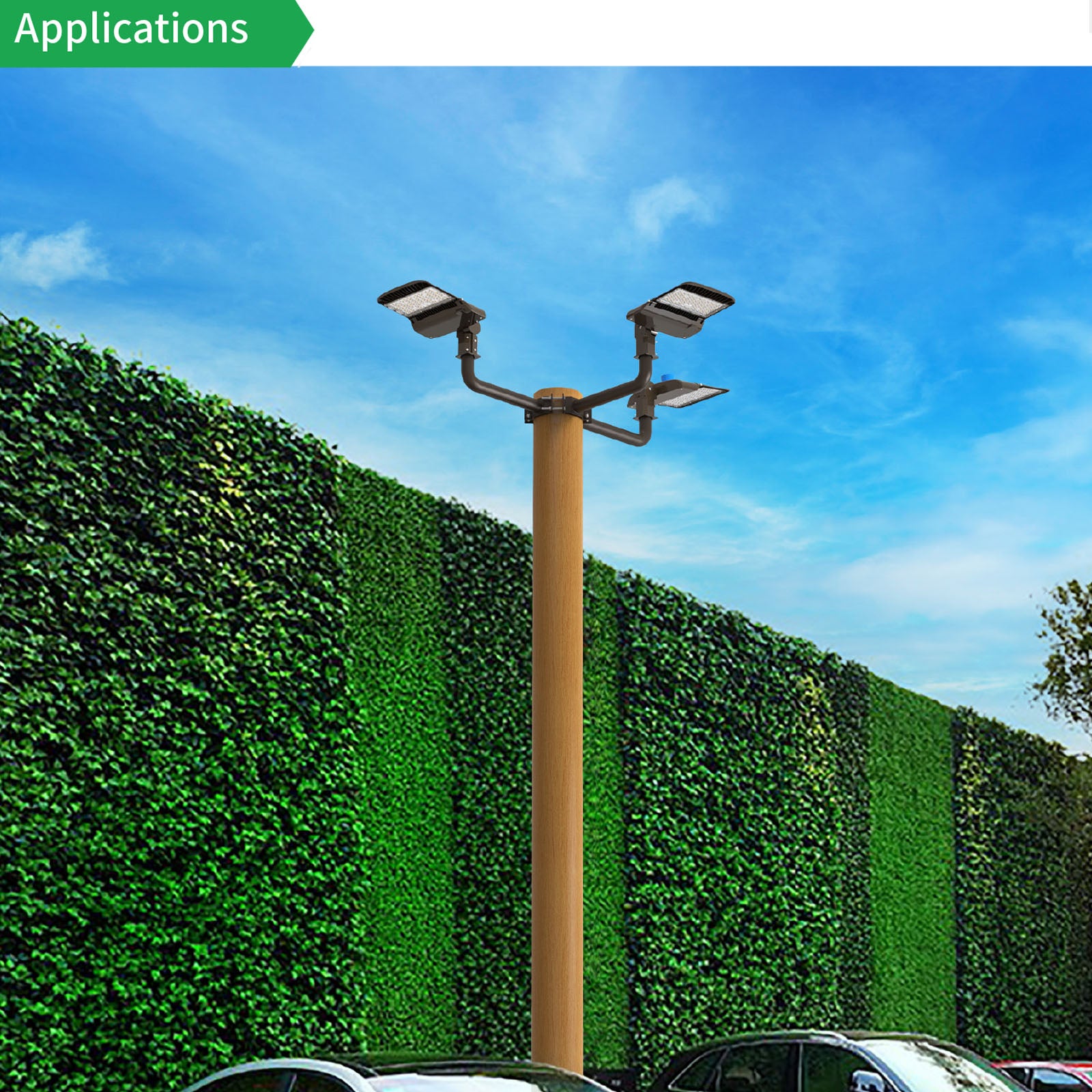

Applications:

This commercial wood pole light bracket is suitable for a wide range of outdoor lighting projects, including:

Parking lots · Roadways · Streets · Driveways · Farms · Commercial properties · Industrial facilities · Warehouses · Utility poles · Rural properties · Security lighting · Outdoor area lighting

It is especially useful when installing LED parking lot lights on existing wood utility poles where a conventional pole-top mounting adapter cannot be used.

How to Choose the Correct Wood Pole Bracket:

Before ordering, check these three dimensions:

1. Measure the pole diameter.
This model is designed for round poles measuring 7"–10" in diameter.

2. Check your fixture mounting method.
Your LED light should use a compatible slip fitter mount.

3. Confirm the tenon size.
This bracket provides a 2-3/8" outside-diameter tenon.

If your pole measures more than 10 inches in diameter, Choierlight also has a separate bracket family for 10–13 inch poles.

FAQ:

What size wood pole does this mounting bracket fit?

This model fits round wood or concrete poles from 7 inches to 10 inches in diameter.

Will this bracket fit a 7-inch wood utility pole?

Yes. The bracket is designed for round poles with diameters starting at approximately 7 inches.

Can I use this bracket on a concrete pole?

Yes. It is designed for compatible round wood or concrete poles within the 7–10 inch diameter range.

What size tenon does the bracket have?

The mounting arm uses a 2-3/8 inch O.D. tenon, designed for compatible slip fitter mounted LED outdoor lights.

Can I mount an LED shoebox light on it?

Yes, provided your LED shoebox or parking lot light uses a slip fitter compatible with a 2-3/8" O.D. tenon.

Do I need to drill holes into the wood pole?

No. The wrap-around bracket is designed to secure around the pole without drilling or modifying the pole. Mounting hardware is included.

Can this bracket hold more than one parking lot light?

Yes. The product is available in 1-arm, 2-arm, 3-arm and 4-arm configurations, allowing multiple compatible fixtures to be mounted to one pole.

Is this wood pole bracket in stock in the USA?

Yes. Choierlight stocks this product in the United States for fast domestic fulfillment.

Is shipping free?

Yes. Free shipping is available within the contiguous United States.

Need a Quote or Have a Product Question?

Not sure whether this bracket fits your wood pole or LED light?

Send us your pole diameter, light fixture model and mounting size, and our team can help you identify the correct mounting bracket.

For contractors, electricians, distributors and commercial lighting projects, contact Choierlight for bulk pricing and project support.
