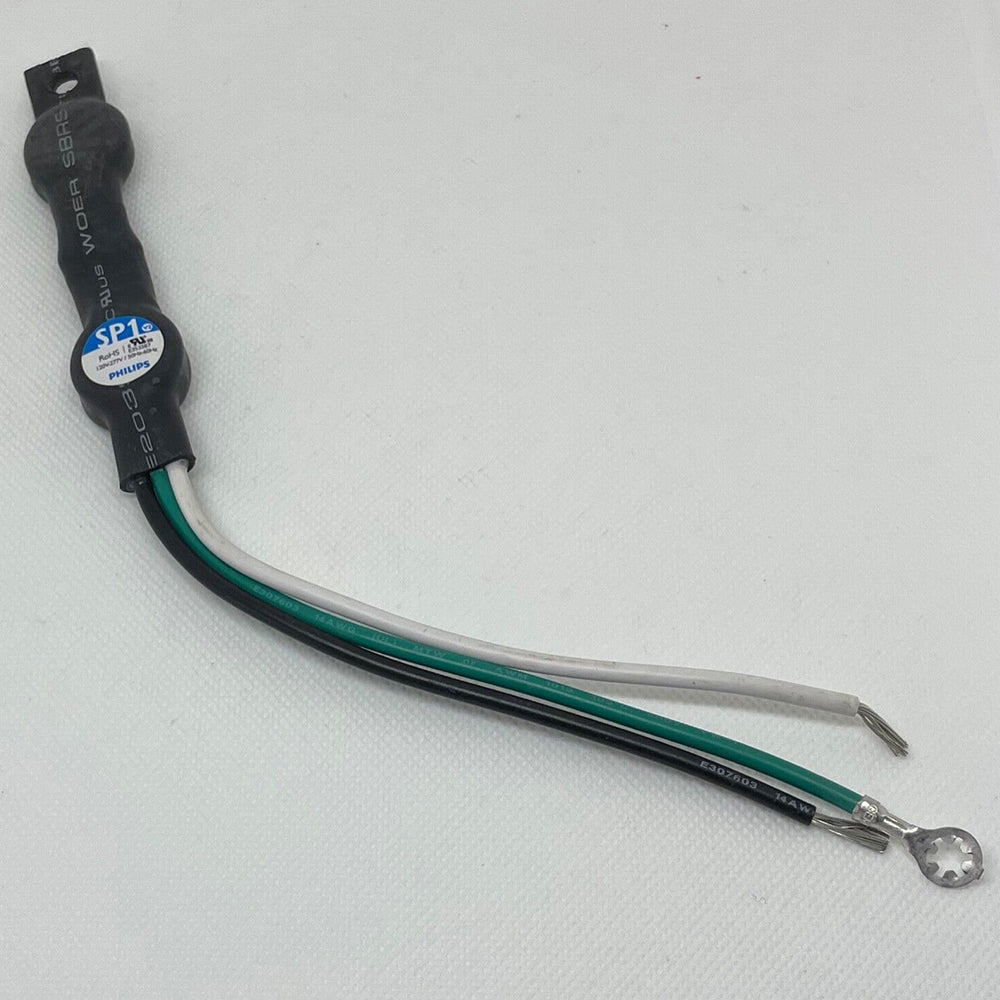

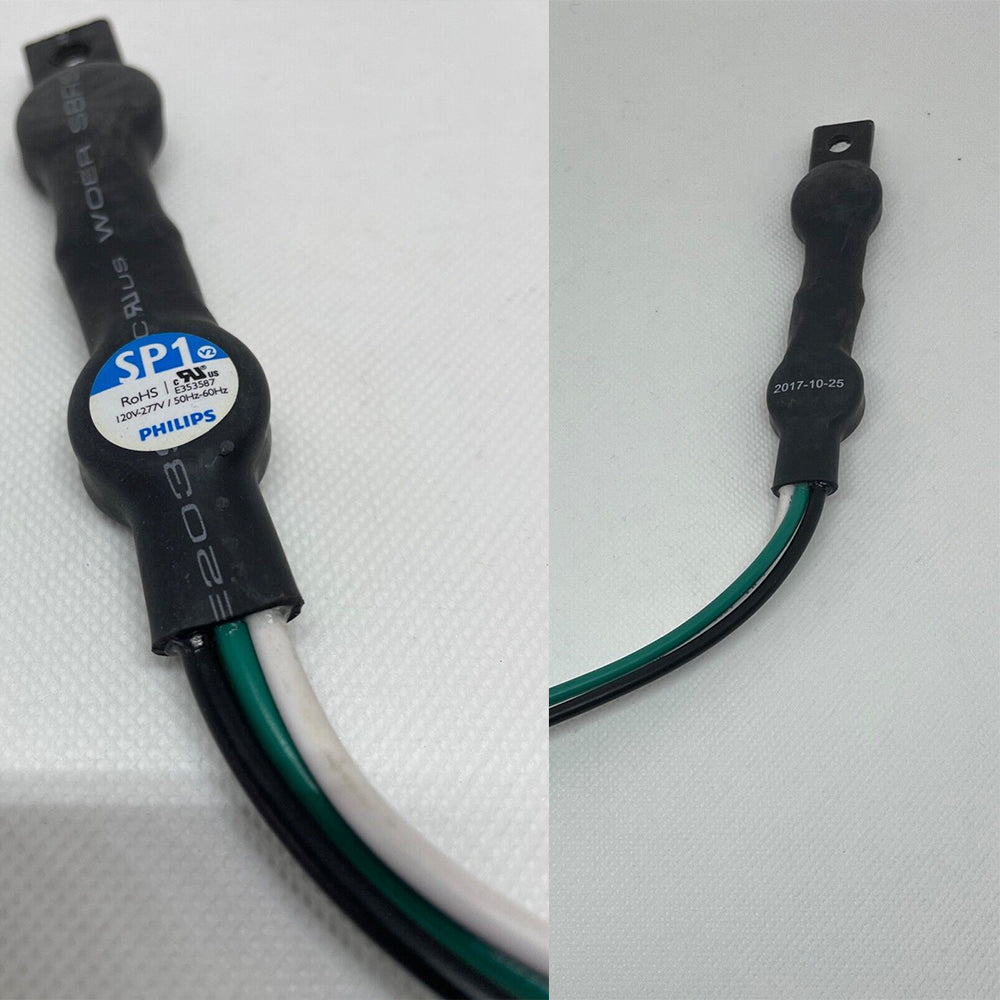

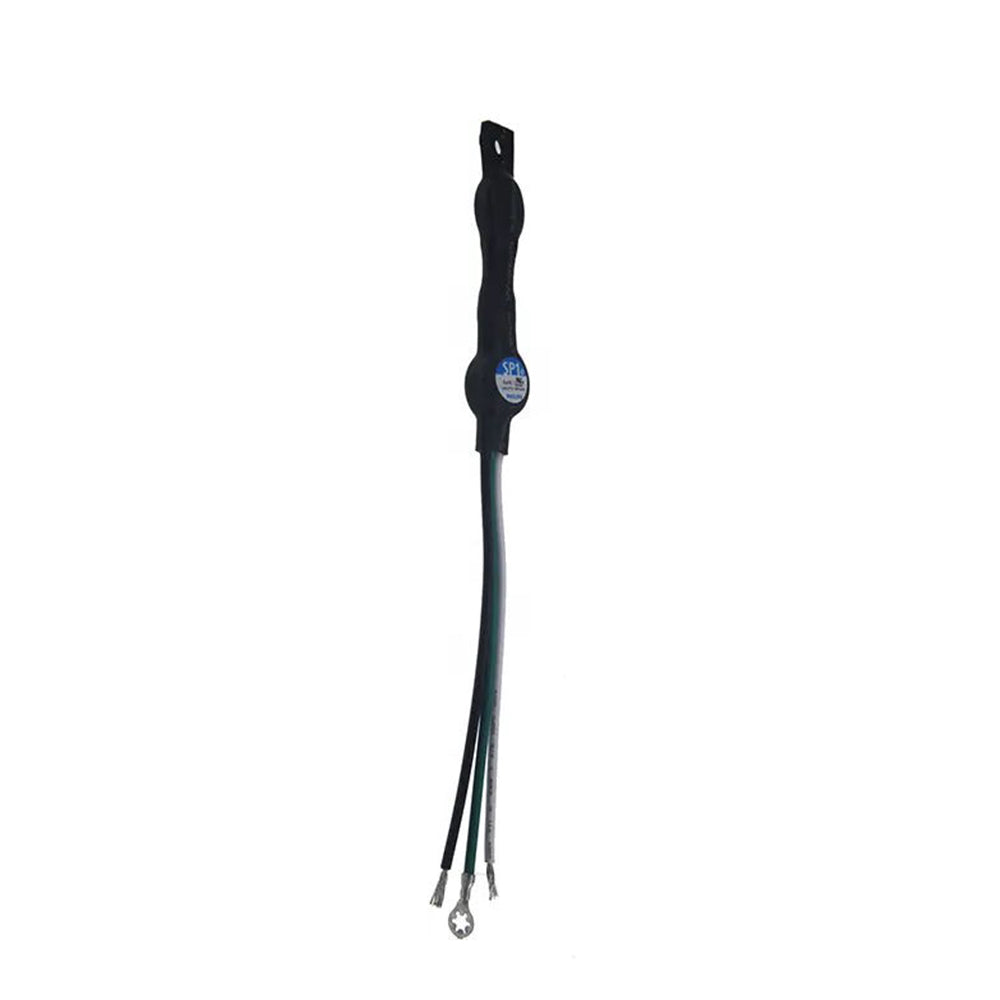

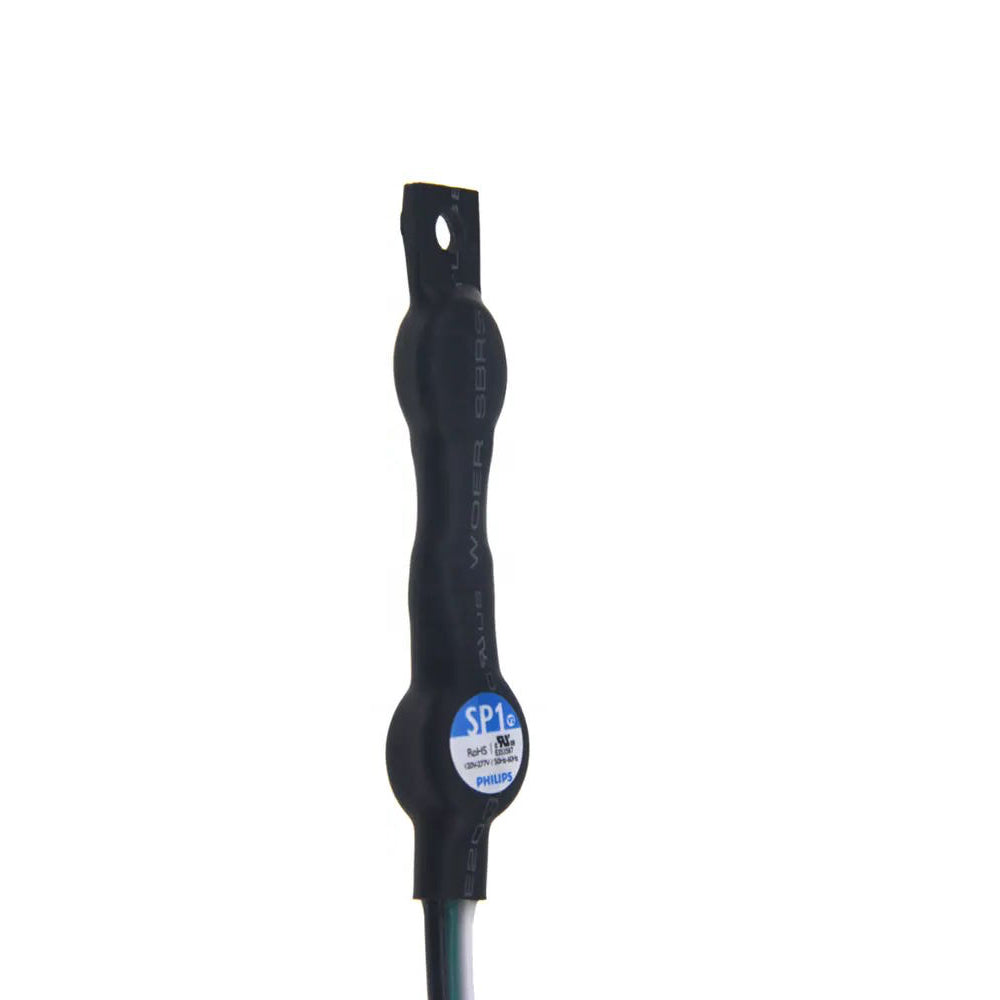

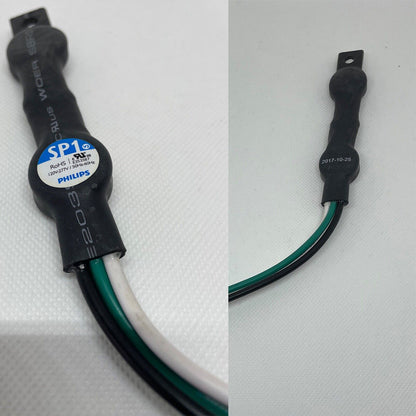

Philips SP1 10KA 120V-277V Surge Protectors for Outdoor LED Luminaires, Category C Type 5 Single Phase Surge Protective Device

Shipping:  US free shipping
Shipping by:  FedEx UPS
Delivery time:  2-4 business days after payment

Bigger Quantity Cheaper Price

LED Surge Protector Spec:

• SP1 Uc 120V-277V
• 10KA/KV ratings(8/20μs standard wave)

• Surge location rated Category C
• Operating ambient temperature: -35°C~+85°C
• Storage Temperature and Humidity Range: -35°C~+85°C
• 120-277VAC mains 14 Gauges stranded wires, 105°C, 600V
• Agency Approval: UL1449, Type 5
• Up to IP65 rated enclosure for wet locations

https://cdn.shopify.com/s/files/1/0692/4245/4334/files/Temporary-Work-Light-V4.9.pdf?v=1

Surge Protective Device Features:

• Works with LED drivers, fluorescent ballasts, HID ballasts, and induction lighting ballasts.
• These devices protect Line-Neutral, Line-Ground, and Neutral-Ground in accordance with IEEE/ANSI 62.41.2
• Thermally protected for field installation
• For use with 120-277V LED drivers
• 10KA/KV ratings
• Up to IP65 rated enclosure for wet locations
• High temperature / flameproof enclosure
  (105°C max surface rating)
• Adapted to SSL outdoor lighting, the Philips SP1 surge protection device provides single phase protection for line/neutral, line/ground and neutral/ground in accordance with IEEE C62.41 2002 C High

Download Spec Sheet
