LED Street Light 70W 100W 150W 200W Wattage & 3CCT 3000K/4000K/5000K Selectable with Photocell

Product Description:

Upgrade roadway, street, parking lot and commercial outdoor lighting with this high-performance LED Street Light with selectable wattage and CCT. Available in four wattage ranges from 28W to 200W, each fixture provides four field-selectable power settings and three selectable color temperatures of 3000K, 4000K and 5000K.

Designed for professional roadway lighting applications, the fixture operates on 100-277VAC and includes a surge protector and 3-pin photocell for reliable dusk-to-dawn operation. Its heavy-duty die-cast aluminum housing, sealed LED optical system and 0-10V dimming capability make it an efficient replacement for traditional HID, HPS and metal halide roadway fixtures.

Choose from 70W/56W/42W/28W, 100W/80W/60W/40W, 150W/120W/90W/60W, or 200W/160W/120W/80W configurations to match different roadway, parking lot and outdoor area lighting requirements.

Key Features:

4-Level Wattage Selectable

One fixture provides four field-adjustable wattage settings, giving contractors and facility managers greater flexibility for different mounting heights and lighting requirements.

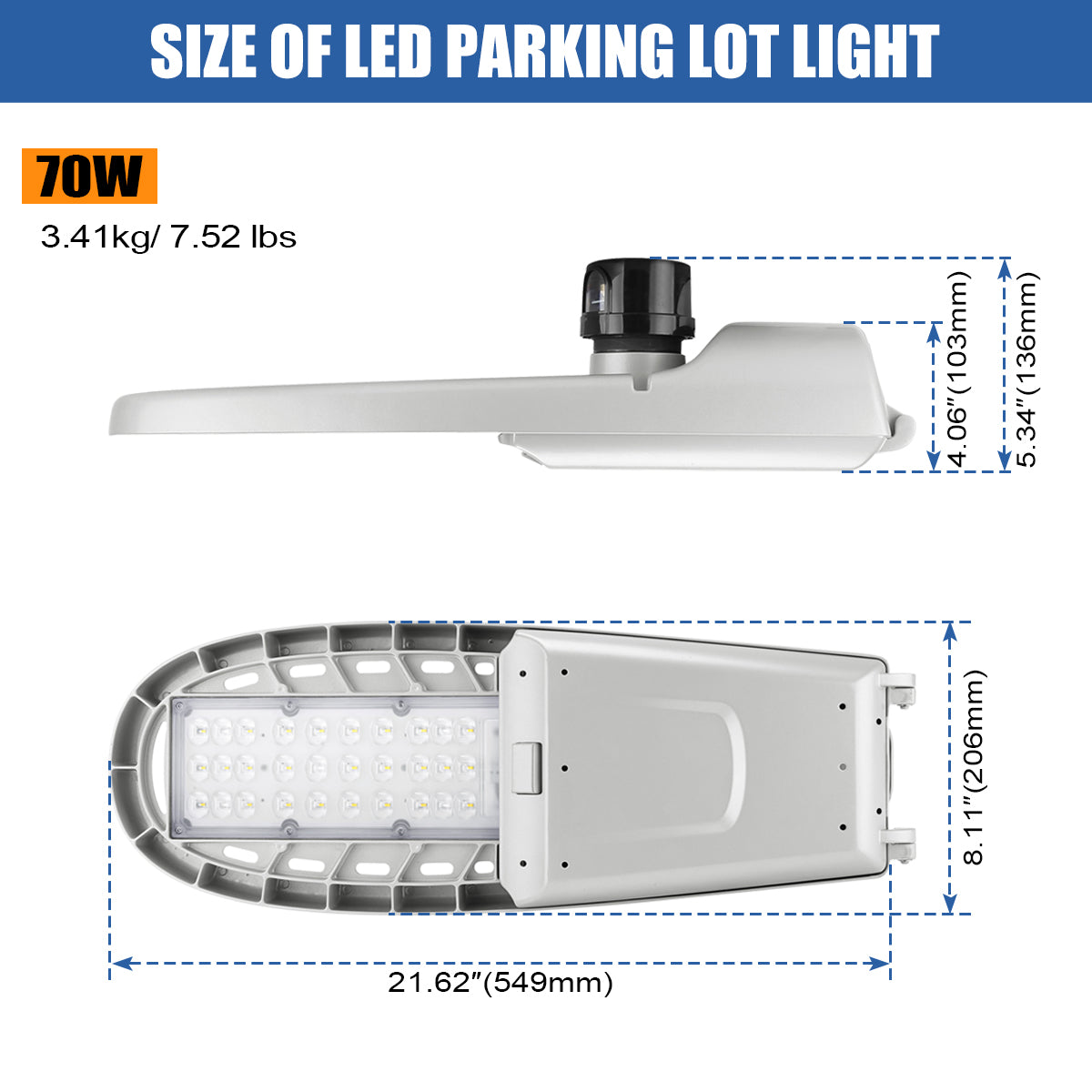

• 70W Model: 70W / 56W / 42W / 28W

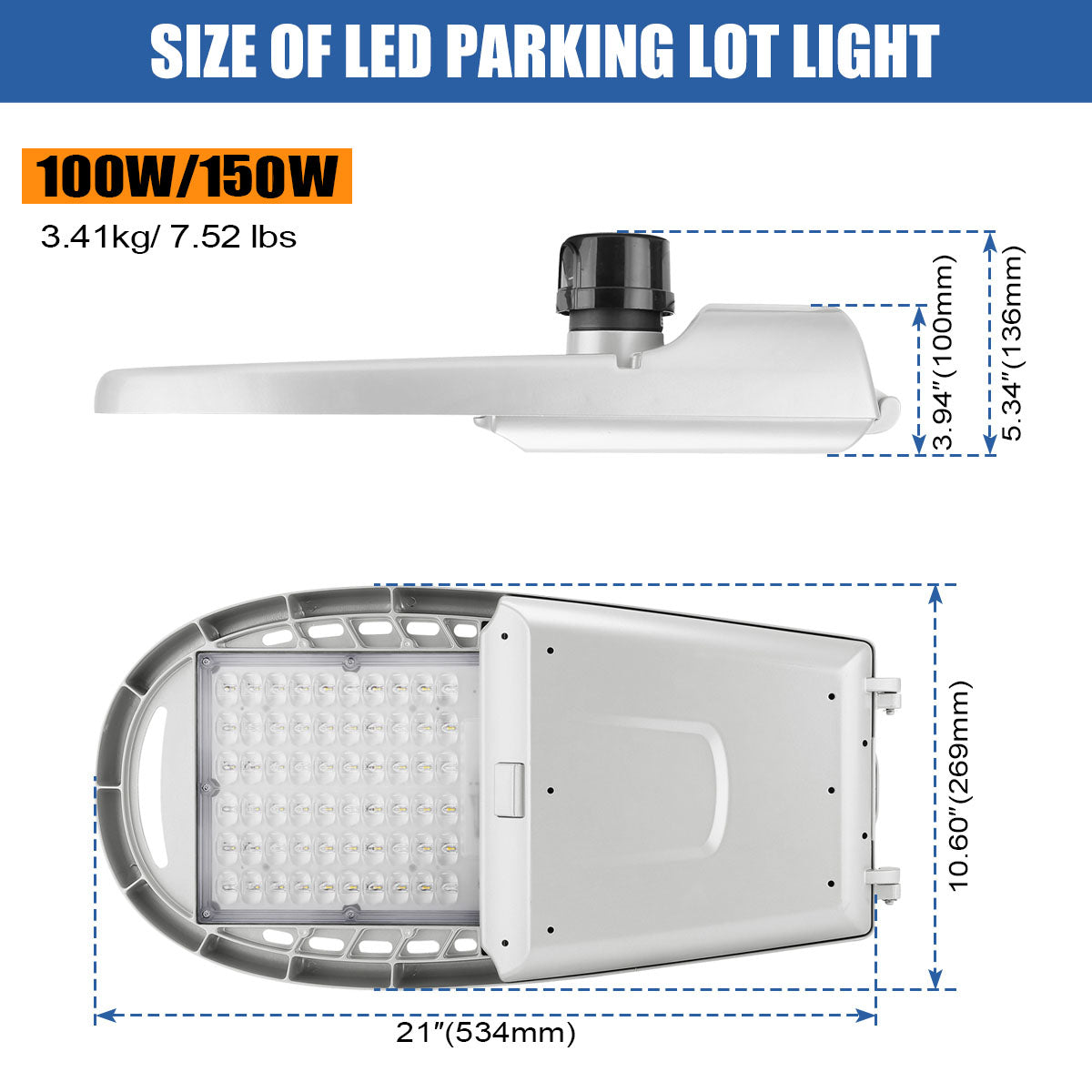

• 100W Model: 100W / 80W / 60W / 40W
• 150W Model: 150W / 120W / 90W / 60W

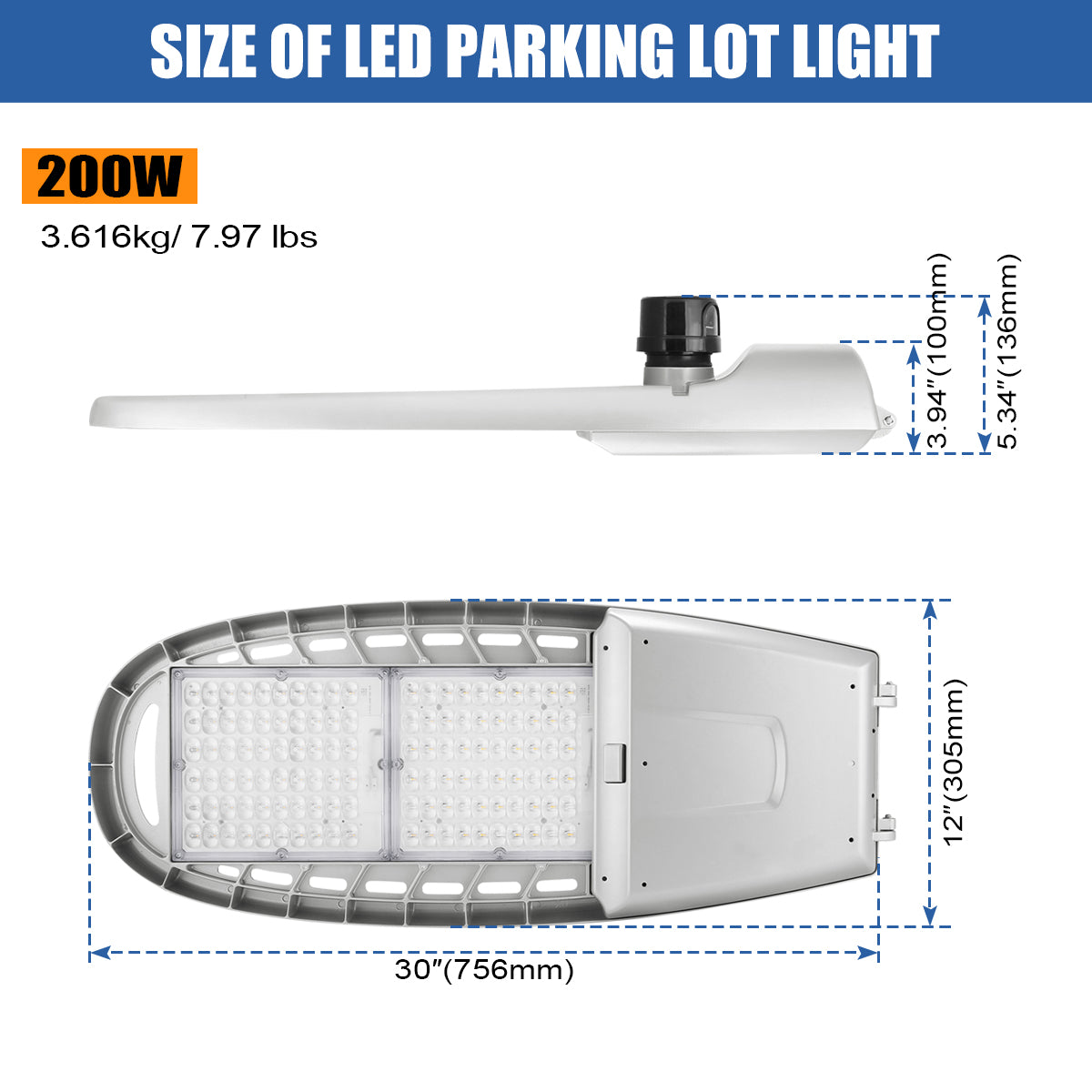

• 200W Model: 200W / 160W / 120W / 80W

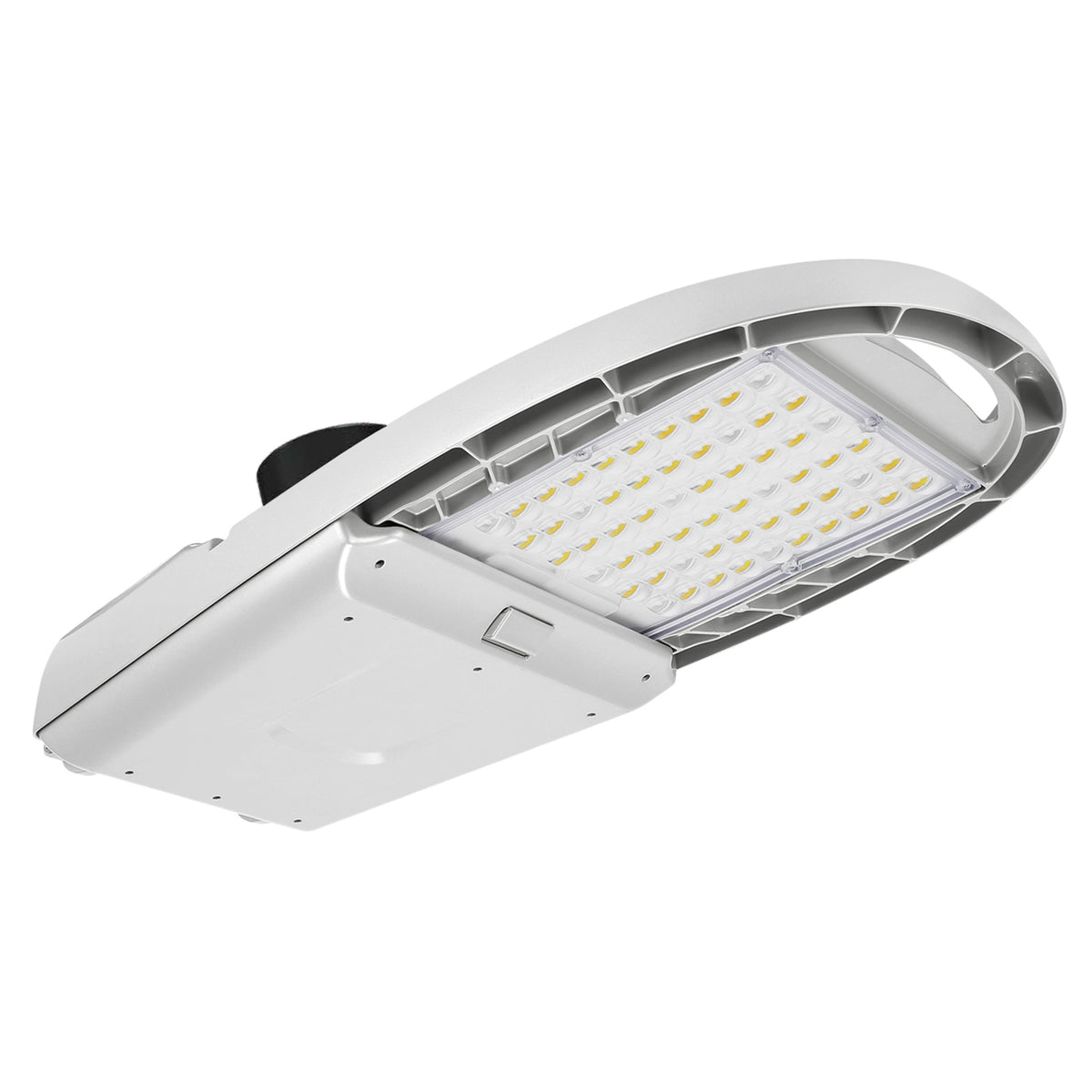

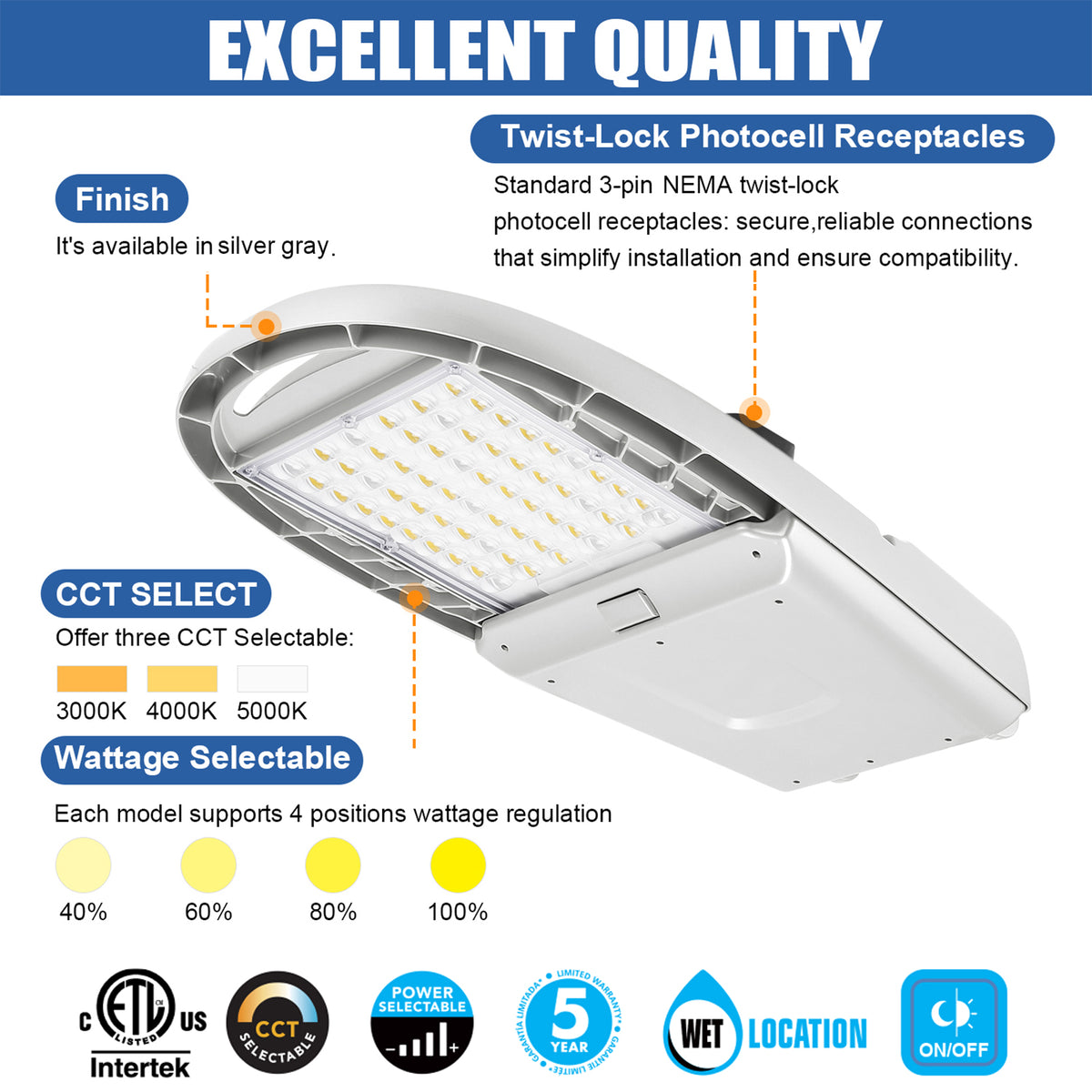

3000K / 4000K / 5000K CCT Selectable

Select the desired color temperature during installation:

3000K Warm White / 4000K Neutral White / 5000K Daylight

One fixture can accommodate different roadway, parking lot and commercial outdoor lighting preferences without stocking separate CCT models. The specification sheet confirms all three selectable color temperatures.

3-Pin Photocell Included

The included 3-pin photocell enables automatic dusk-to-dawn operation, turning the street light on at night and off during daylight to reduce unnecessary energy use and maintenance.

The fixture uses a NEMA twist-lock photocell receptacle design for convenient installation and servicing.

Built-In Surge Protection

Designed for outdoor electrical environments, the street light includes surge protection to help protect the fixture and LED driver against transient voltage spikes.

High-Efficiency LED Roadway Lighting

The ST03 platform delivers up to approximately 33,000 lumens, depending on wattage and CCT configuration. The 200W model reaches 33,000 lumens at the 4000K setting according to the photometric performance data.

Type III Optical Distribution

Type III – Provides broader forward and side distribution for streets, parking areas and general outdoor applications.

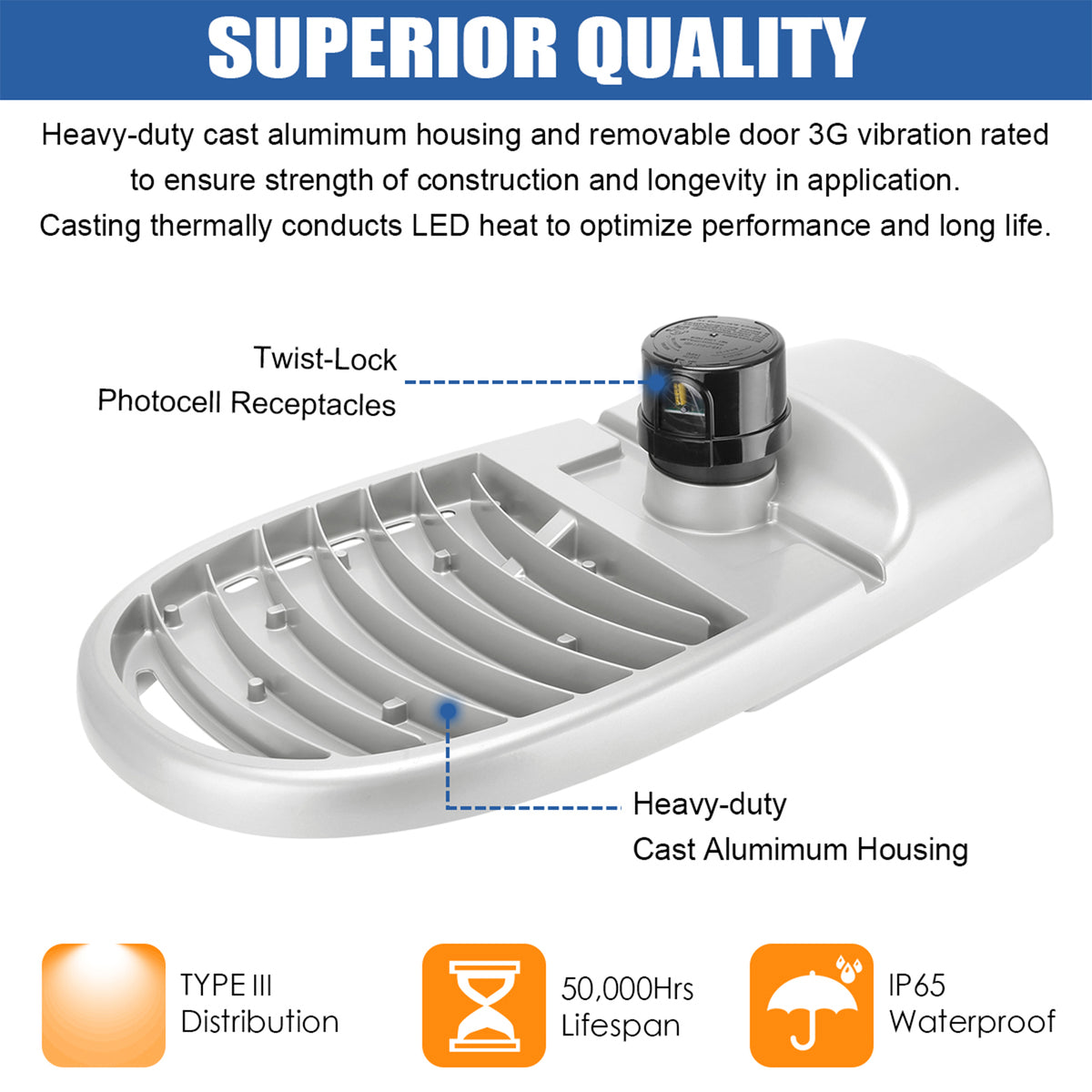

Heavy-Duty Die-Cast Aluminum Construction

The durable cast aluminum housing provides effective thermal management while the sealed LED lens housing protects internal components against moisture and environmental contaminants. The fixture is also designed with a 3G vibration-rated construction.

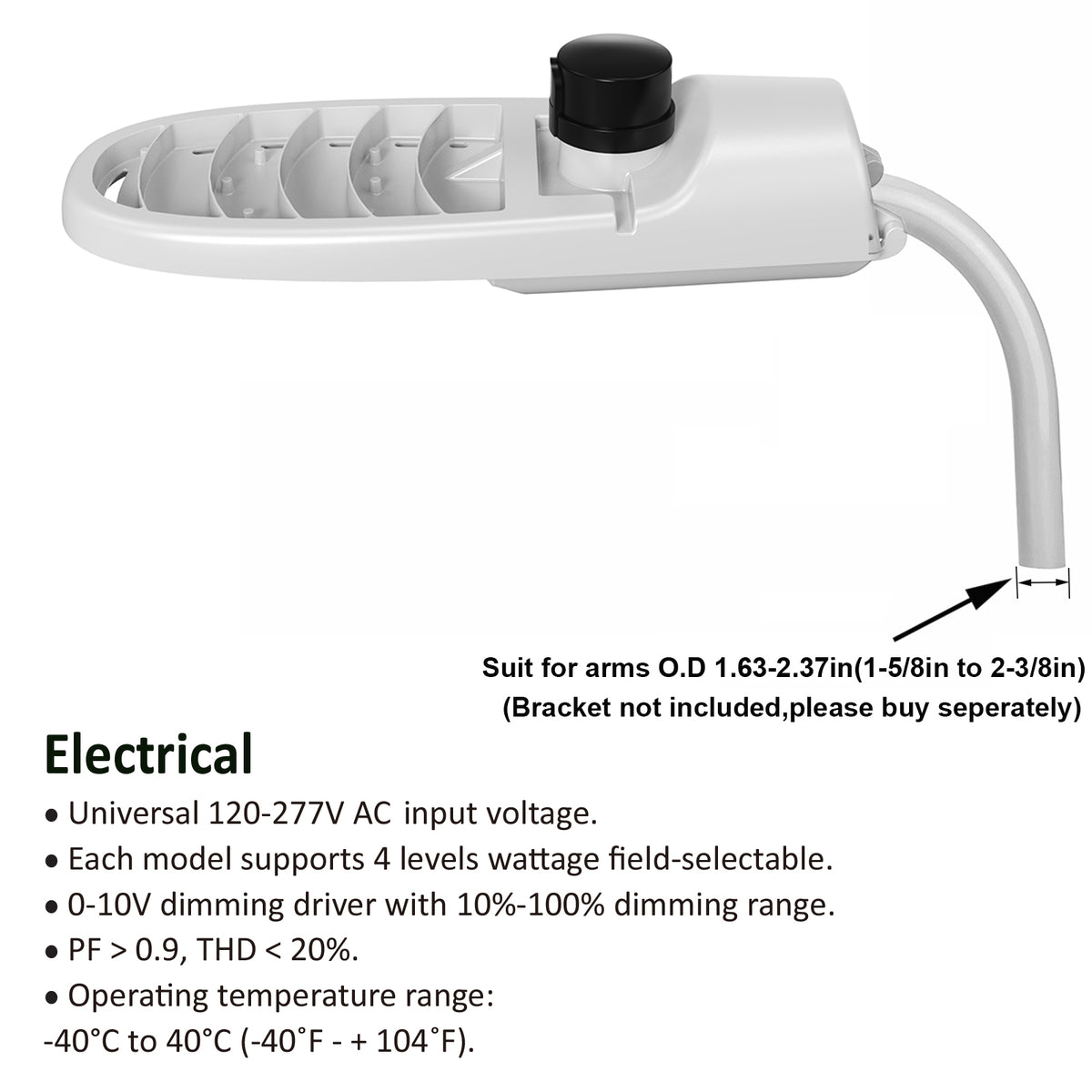

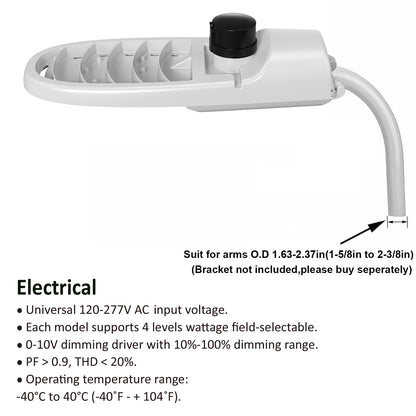

Adjustable Mast Arm Mount

Designed for standard roadway lighting installations, the mast arm mounting system accommodates arms from 1-5/8" to 2-3/8" O.D., providing compatibility with common street and roadway lighting poles.

0-10V Dimming

The integrated 0-10V dimming driver supports approximately 10%-100% dimming, allowing integration with compatible commercial lighting control systems.

Product Specifications：

Available Wattage Options：

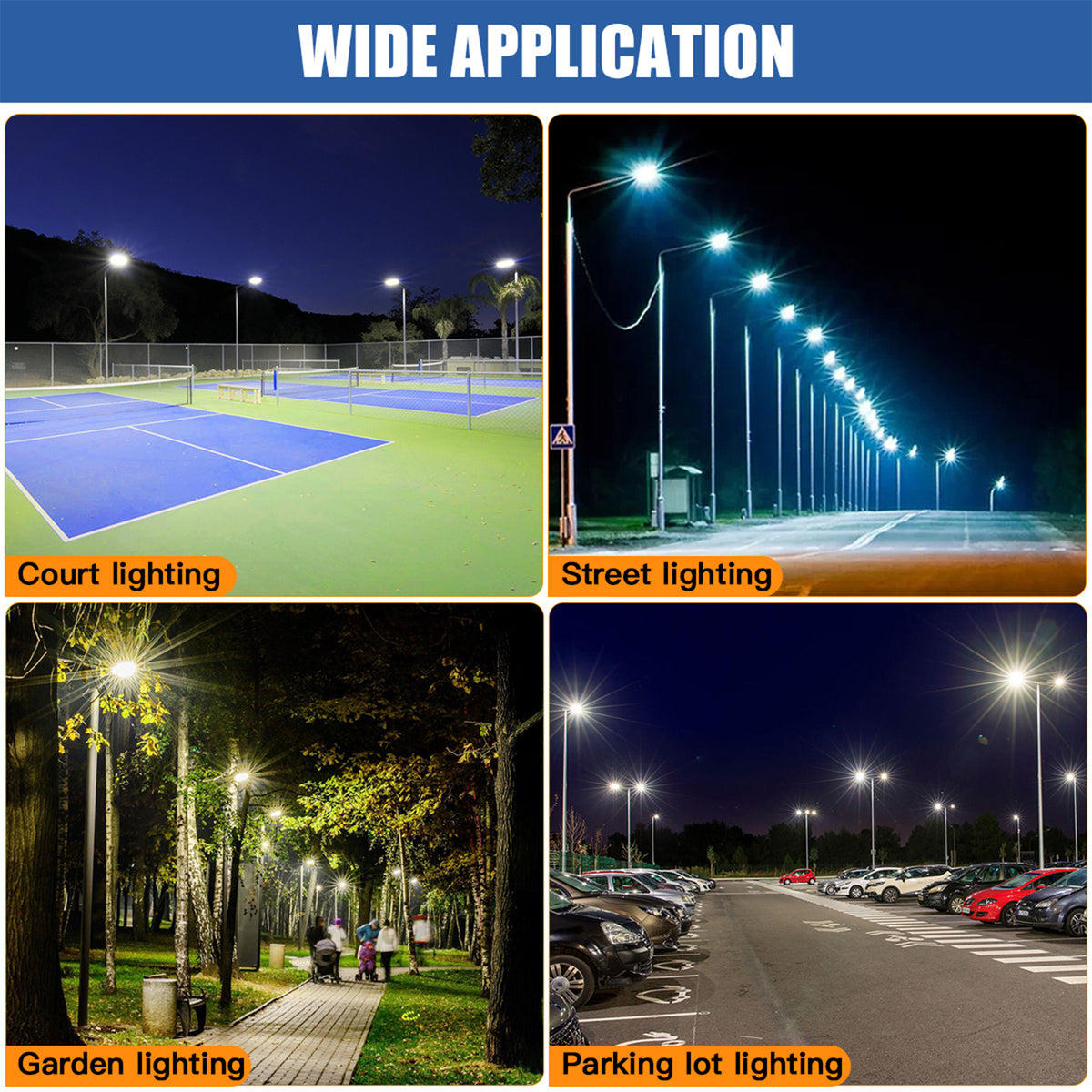

Applications：

This commercial LED street light is designed for a wide range of outdoor roadway and area lighting projects, including:

• City streets and roadways
• Commercial parking lots
• Residential streets and communities
• Industrial parks
• Driveways and access roads
• Campuses and business parks
• Perimeter lighting
• Municipal roadway lighting
• Walkways and pedestrian areas
• Commercial and industrial outdoor areas

Why Choose This Selectable LED Street Light?

Instead of stocking separate fixtures for every wattage and color temperature, one selectable LED roadway light can cover multiple project requirements. Contractors can select the appropriate wattage and CCT during installation, while the included photocell provides convenient automatic dusk-to-dawn operation.

With multiple optical distributions, 0-10V dimming, surge protection and mast arm compatibility, this fixture is designed for both new roadway lighting projects and commercial LED lighting upgrades.

FAQ：

What wattages are available for this LED street light?

Four selectable-wattage models are available: 70W/56W/42W/28W, 100W/80W/60W/40W, 150W/120W/90W/60W, and 200W/160W/120W/80W.

Is the color temperature adjustable?

Yes. The fixture provides 3000K, 4000K and 5000K selectable CCT, allowing the color temperature to be selected during installation.

Does this LED street light include a photocell?

Yes. This Choierlight configuration includes a 3-pin photocell for automatic dusk-to-dawn operation.

Does the fixture have surge protection?

Yes. The product configuration includes a surge protector to help protect the fixture against transient voltage events.

What size mast arm does this street light fit?

The mast arm mount is designed for 1-5/8" to 2-3/8" O.D. arms.

What light distributions are available?

The ST03 roadway light platform supports Type III optical distributions for roadway and outdoor area lighting layouts.

Is this LED street light dimmable?

Yes. It uses a 0-10V dimming driver with approximately 10%-100% dimming range.

What is the warranty?

The fixture comes with a 5-year limited warranty.
