Specification:

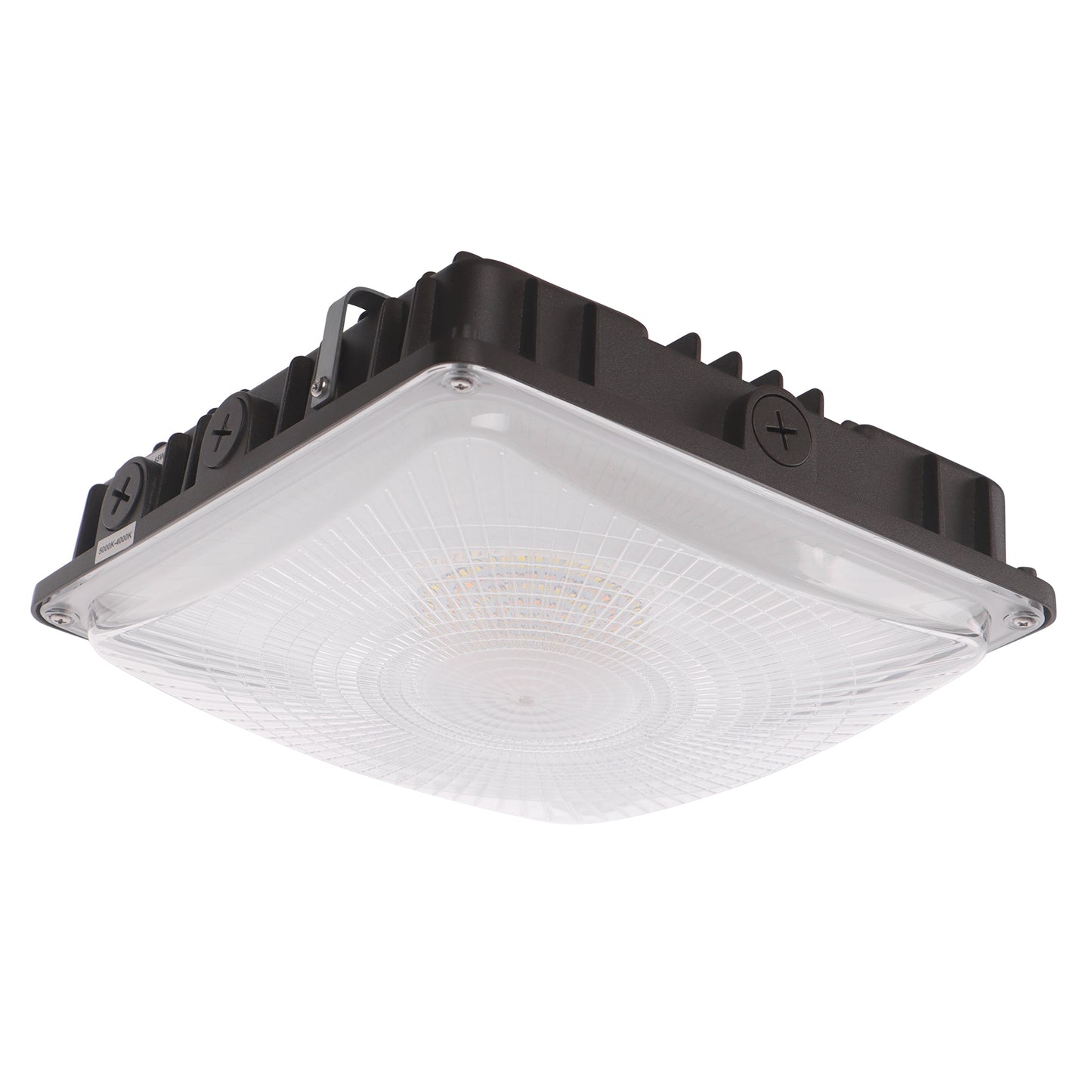

LED Canopy Light Spec:

• Wattage: 63W / 45W / 30W Selectable
• Lumens: Up to 9400 LM
• Efficacy: Up to 150 LM/W
• Voltage: 120-277V
• CCT: 4000K / 5000K Selectable
• Dimming: 0-10V

• CRI: >80
• Power Factor: >0.9
• IP Rating: IP65 (Wet Location Rated)
• Lifespan: 50,000+ Hours
• Certification: UL Listed
• Warranty: 5 Years

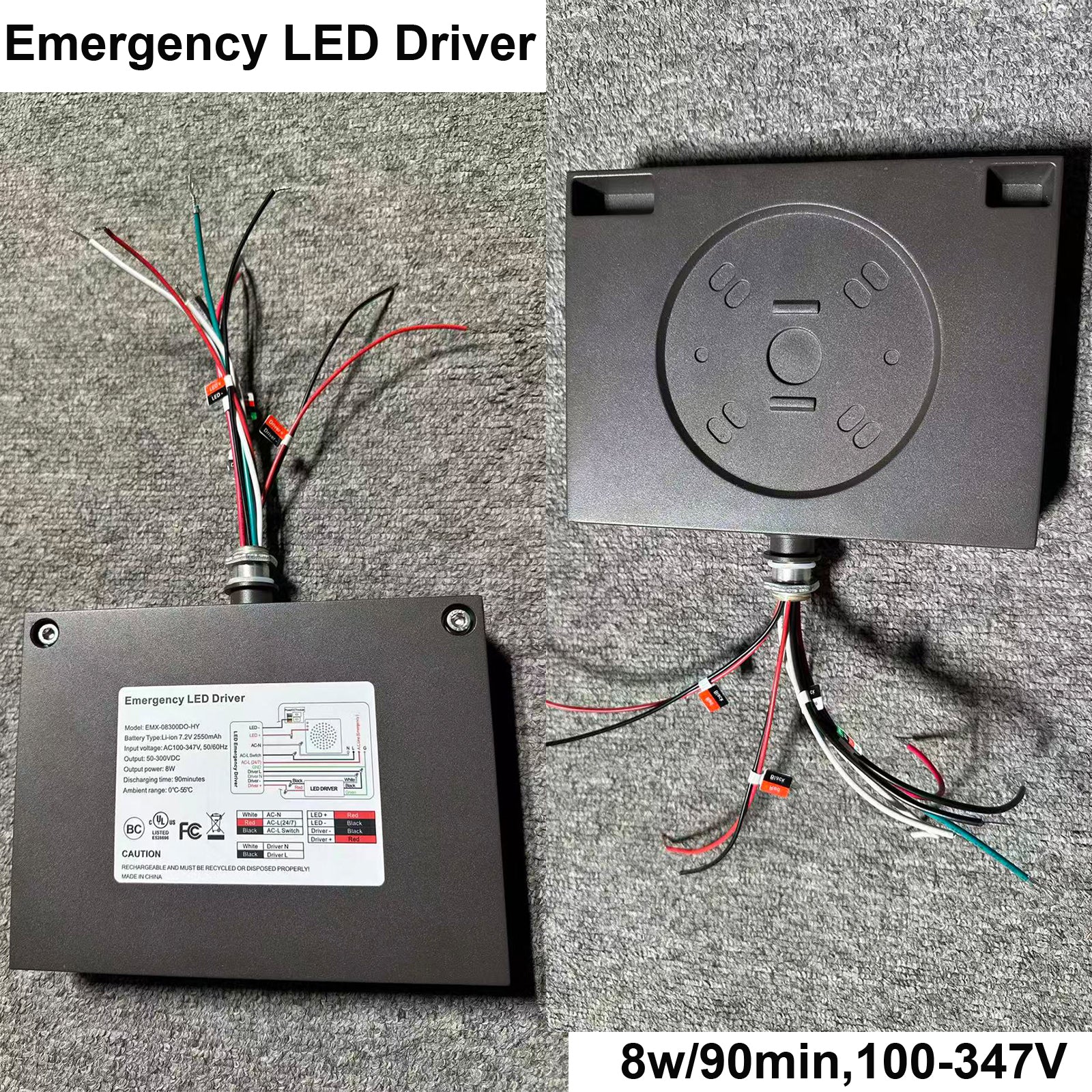

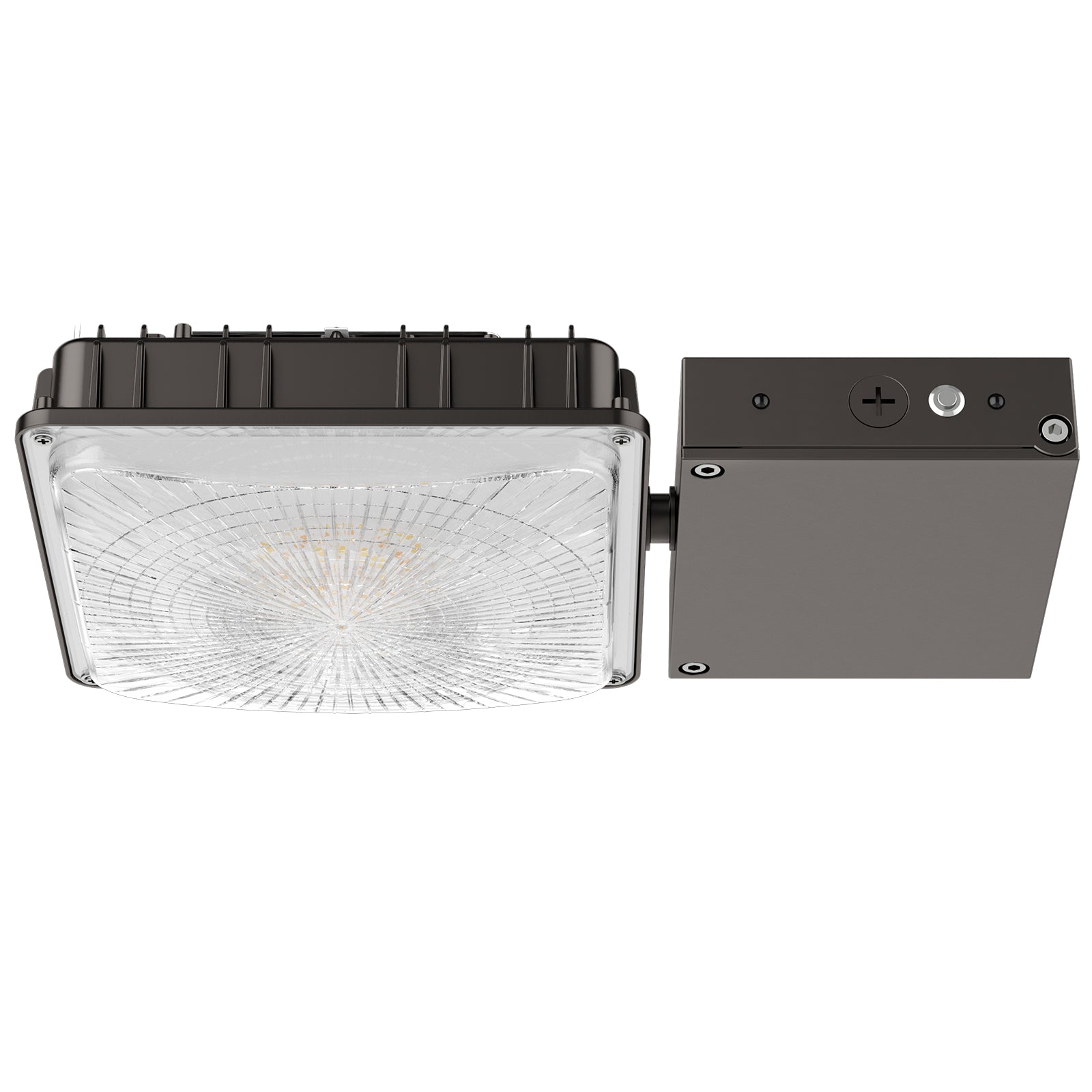

Emergency Battery Backup Spec:

• Battery Type: Li-ion 7.2V 2550mAh
• Input Voltage: AC100-347V, 50/60Hz
• Output Voltage: 50-300VDC
• Output Power: 8W (1200LM)
• Discharging time: 90minutes

Product Description:

Upgrade your commercial lighting system with this high-efficiency LED canopy light with emergency battery backup, engineered for U.S. electrical contractors, facility managers, and commercial lighting projects.

Designed to replace traditional HID fixtures, this wattage selectable LED canopy light (63W/45W/30W) delivers up to 9,400 lumens with superior energy savings, long lifespan, and reliable emergency operation.

With built-in battery backup (90 minutes), this fixture ensures uninterrupted illumination during power outages—ideal for code-compliant safety lighting in parking garages, gas stations, and commercial buildings.

Key Features :

✔ Emergency Battery Backup (Code-Compliant Safety Lighting)
Integrated 8W battery provides up to 90 minutes of emergency lighting (1200 lumens) during power outages—perfect for NEC compliance and safety-critical applications.

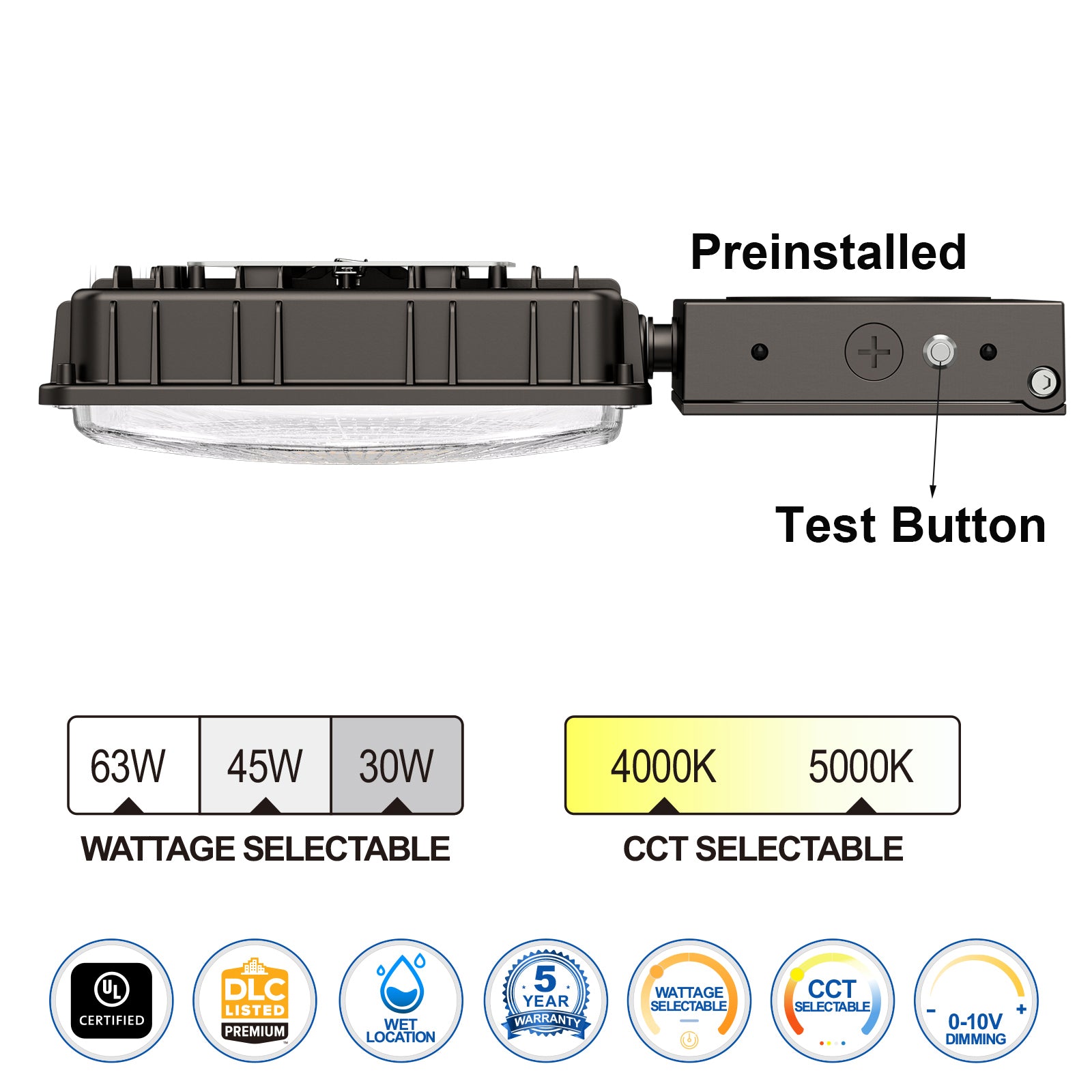

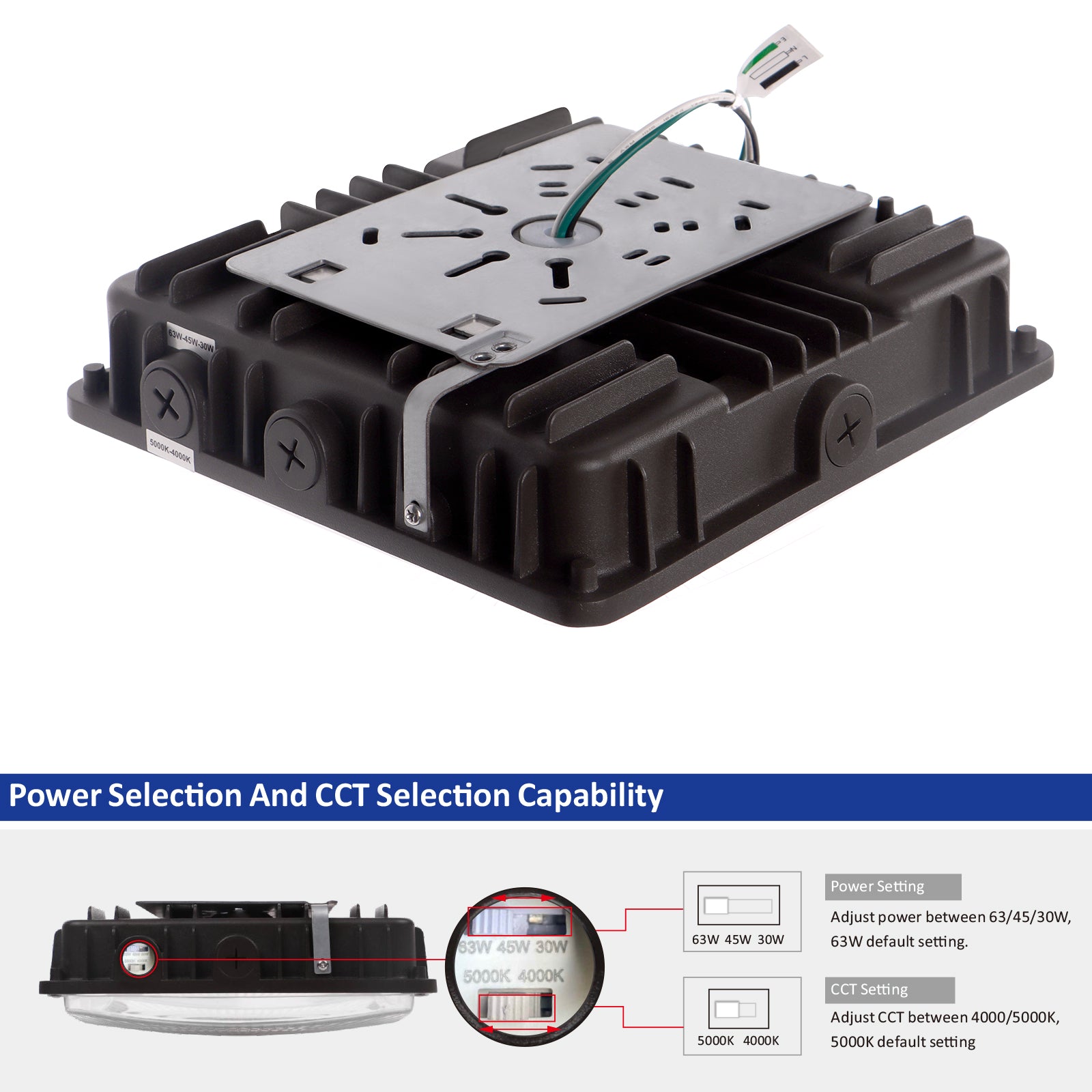

✔ Wattage Selectable (63W / 45W / 30W)
Flexible power settings allow contractors to adjust lumen output on-site, reducing SKU complexity and inventory costs.

✔ High Lumen Efficiency – Up to 150 LM/W
Delivers up to 9400 lumens, ensuring bright, uniform illumination while cutting energy consumption by up to 60%.

✔ CCT Selectable (4000K / 5000K)
Switch between neutral white (4000K) and daylight (5000K) to meet project requirements and regional lighting standards.

✔ 0-10V Dimmable (Commercial Grade Control)
Compatible with commercial dimming systems, ideal for energy-saving and smart lighting integration.

✔ UL Listed
Eligible for utility rebates across the U.S., meeting strict safety and efficiency standards.

✔ IP65 Waterproof & Dustproof

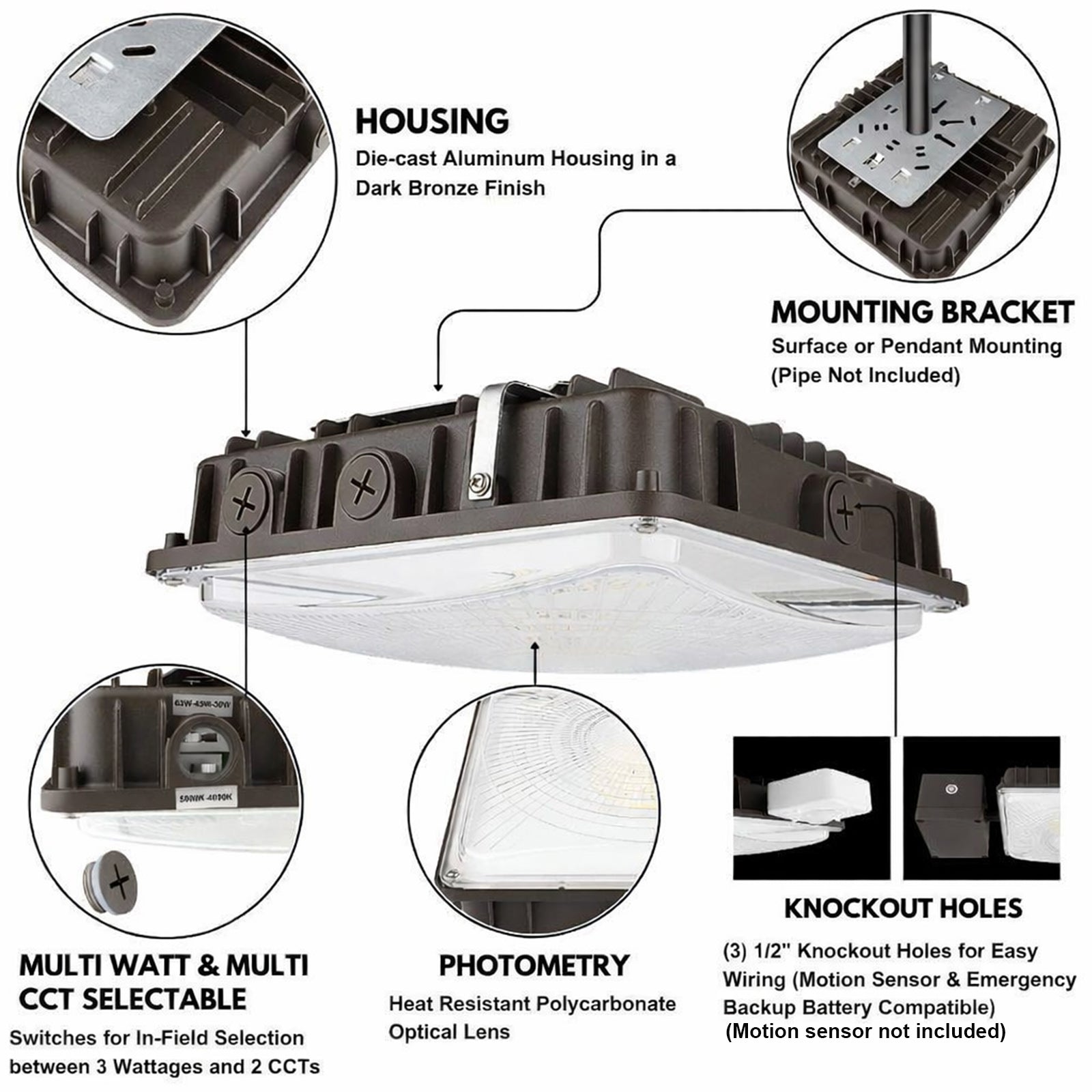

Sealed die-cast aluminum housing withstands harsh outdoor environments including gas stations, parking garages, and loading docks.

✔ Long Lifespan – 50,000+ Hours
Reduce maintenance costs with extended LED lifespan and durable construction.

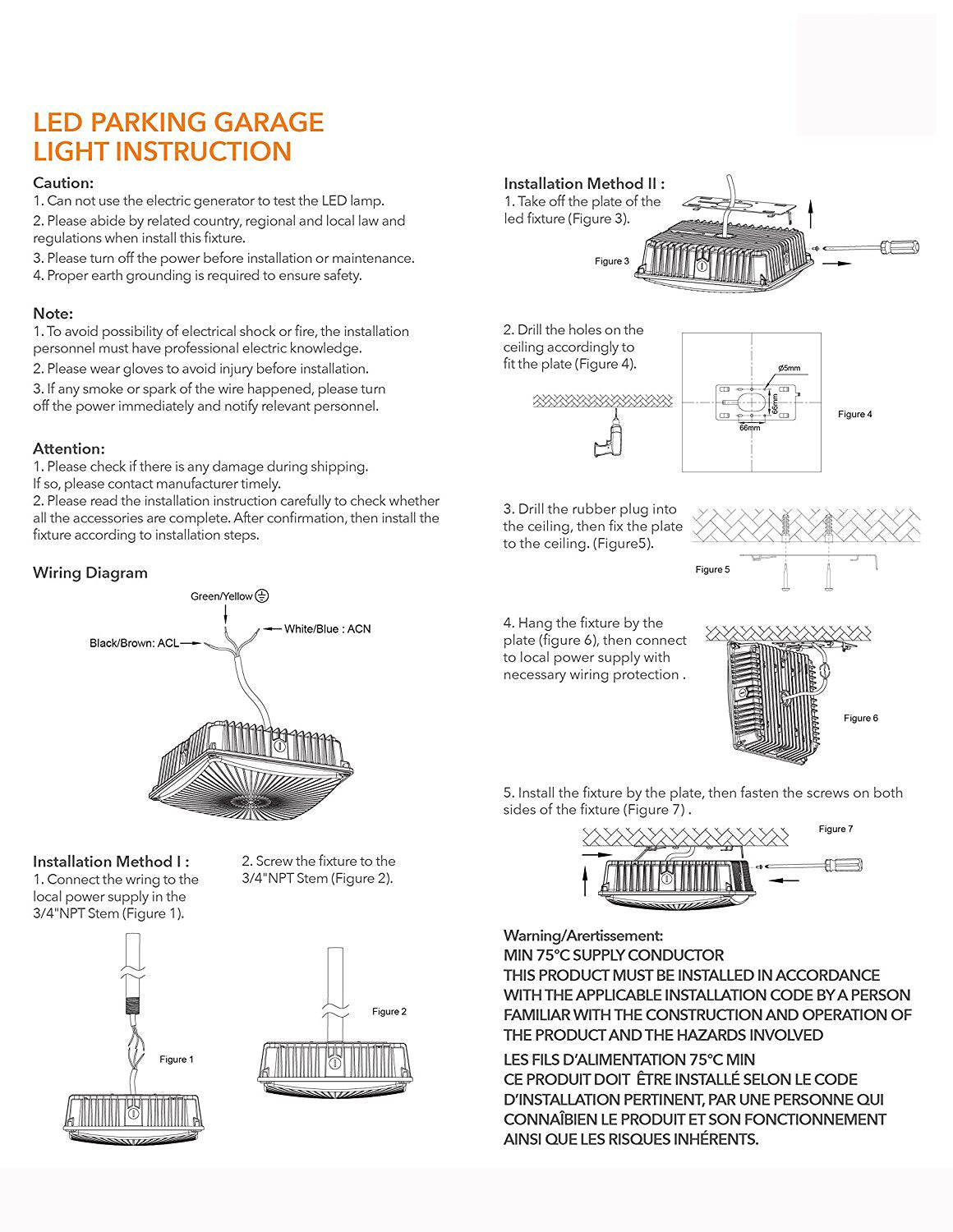

✔ Easy Installation (Contractor Friendly)
Surface mount design with no need to open fixture, reducing labor time and installation cost.

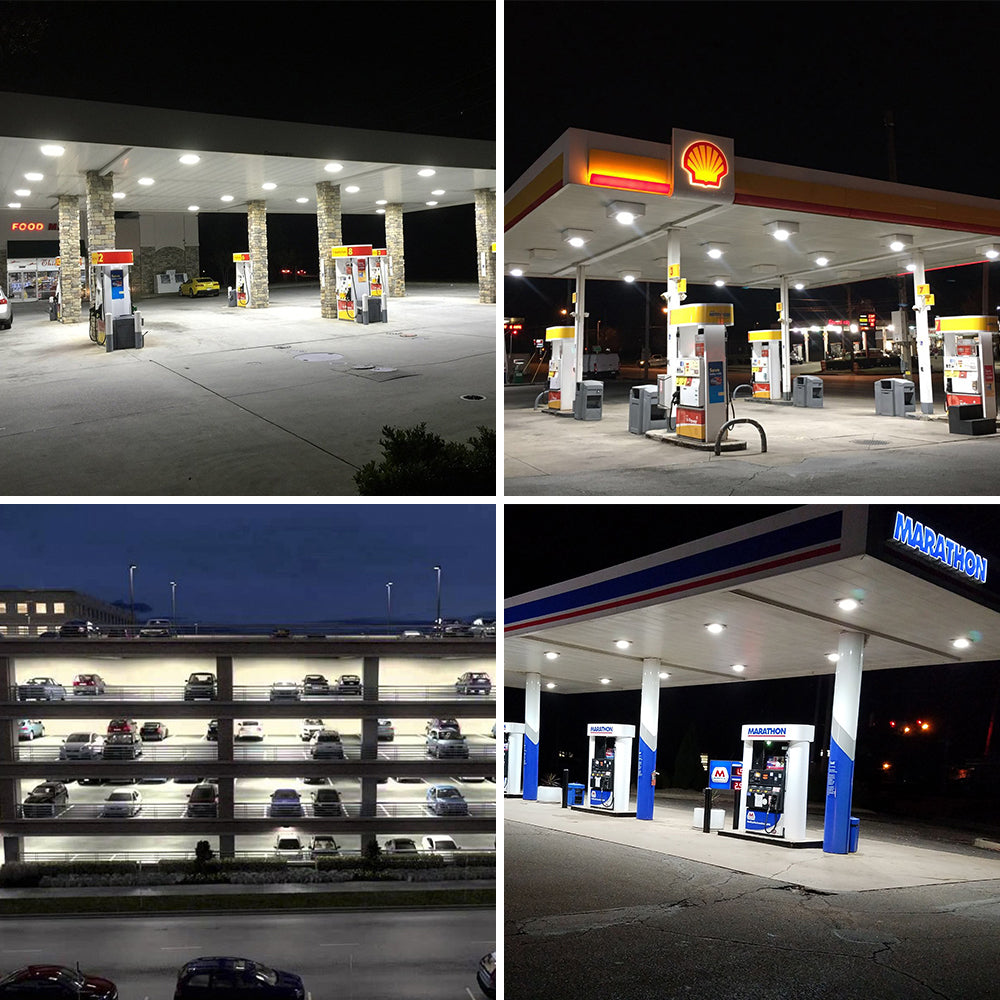

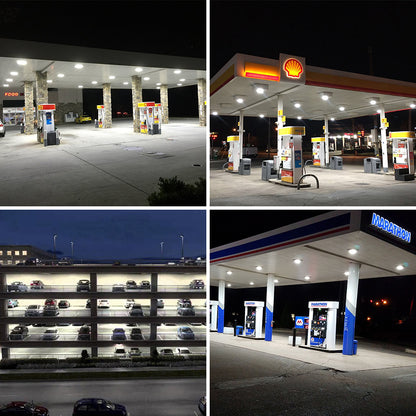

Applications:

• Gas Station Canopy Lighting
• Parking Garage Lighting
• Parking Lot Canopy Lights
• Commercial LED Ceiling Lighting
• Loading Dock Lighting
• Walkway & Entryway Lighting
• Warehouse Canopy Lighting
• Convenience Store Exterior Lighting

Why Contractors Choose This Product

• ✔ Reduces SKUs with wattage + CCT selectable design
• ✔ Meets U.S. safety codes with emergency backup
• ✔ Eligible for rebates
• ✔ Fast install saves labor cost
• ✔ Reliable for retrofit & new construction

👉 Upgrade your lighting today with energy-efficient, code-compliant LED canopy lights—built for performance, reliability, and long-term savings.

LED canopy light with emergency battery backup, commercial canopy lighting, gas station LED canopy light, parking garage lighting fixture, 120-277V canopy light, canopy light, UL canopy light, dimmable canopy light, IP65 LED canopy, wattage selectable canopy light, retrofit canopy lighting, outdoor ceiling LED light commercial, LED canopy light 150W equivalent.

FAQ:

1. What is an LED canopy light with emergency battery backup?

An LED canopy light with emergency battery backup is a commercial lighting fixture that includes a built-in backup power system. When normal power fails, the emergency battery provides temporary lighting to improve safety and visibility.

2. Where can this commercial LED canopy light be used?

This LED canopy light is commonly used for gas stations, parking garages, warehouses, loading docks, car washes, commercial buildings, covered walkways, and outdoor ceiling lighting applications.

3. Can I adjust the brightness or wattage of this LED canopy fixture?

Yes. The wattage selectable design allows installers to adjust light output according to different project requirements, making it suitable for various commercial lighting applications.

4. Is this LED canopy light waterproof for outdoor installation?

Yes. The durable waterproof housing makes it suitable for outdoor and semi-outdoor environments such as gas station canopies, parking structures, and covered commercial areas.
