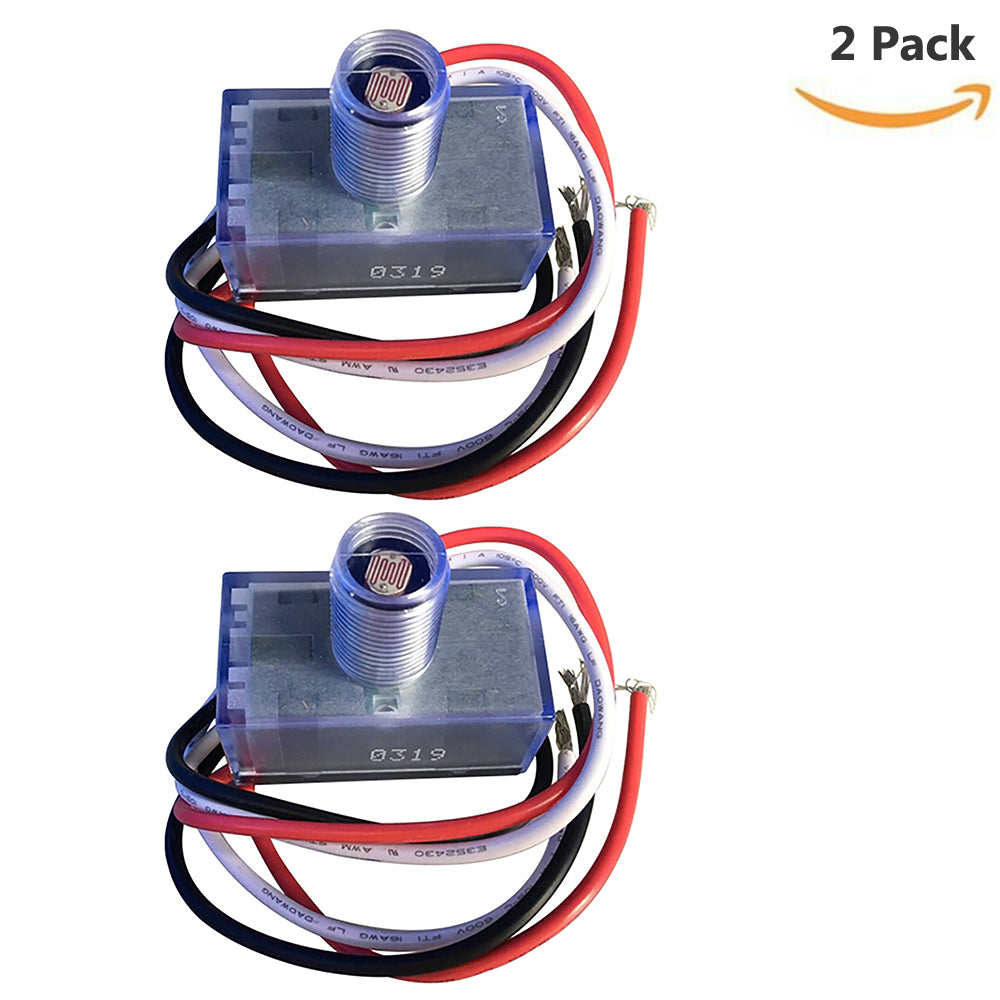

Hard-Wired Light Sensor for Outdoor Lighting, Dawn to Dusk Sensor, Photocell Sensor, Post Eye Light Sensor for Outdoor Light Fixture, UL Listed-2 Pack
Hard-Wired Light Sensor for Outdoor Lighting, Dawn to Dusk Sensor, Photocell Sensor, Post Eye Light Sensor for Outdoor Light Fixture, UL Listed-2 Pack
In stock
Regular price
$25.00
Regular price
Sale price
$25.00
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Shipping: US free shipping
Shipping by: FedEx UPS
Delivery time: 2-4 business days after payment
Bigger Quantity Cheaper Price
For Wholesale and Custom Order, Please Contact sales@choierlight.com
| Minimum Same Variant Quantity | Discount |
| 10-29 | 3% |
| 30-99 | 5% |
| 100+ | 8% |
Photocell Spec:
- Model: JL-413C
- Rated Voltage: 120-277VAC
- Rated Frequency: 50/60Hz
- Relative Humidity: 99%RH
- On/Off Level: 10-20Lx On(at Dusk), 30-80Lx Off (at Dawn)
- Rated Loading: 500W Tungsten, 850VA Ballast, 5A E-Ballast
- Power consumption: 0.4W max
- Operating Temp: -40°C to +70°C (-40°F to +158°F)
- Leads length: 180mm (AWG#18)
- Certification: UL listed
https://cdn.shopify.com/s/files/1/0692/4245/4334/files/Temporary-Work-Light-V4.9.pdf?v=1
Photocell Sensor Installation:
Disconnect power, remove junction box cover, place the SWITCH in knockout hole and fasten with locknut. Wire according to the diagram in right hand. Do not install the switch with the Photocell facing artificial or reflected light. This will cause the unit to cycle on and off at night.
