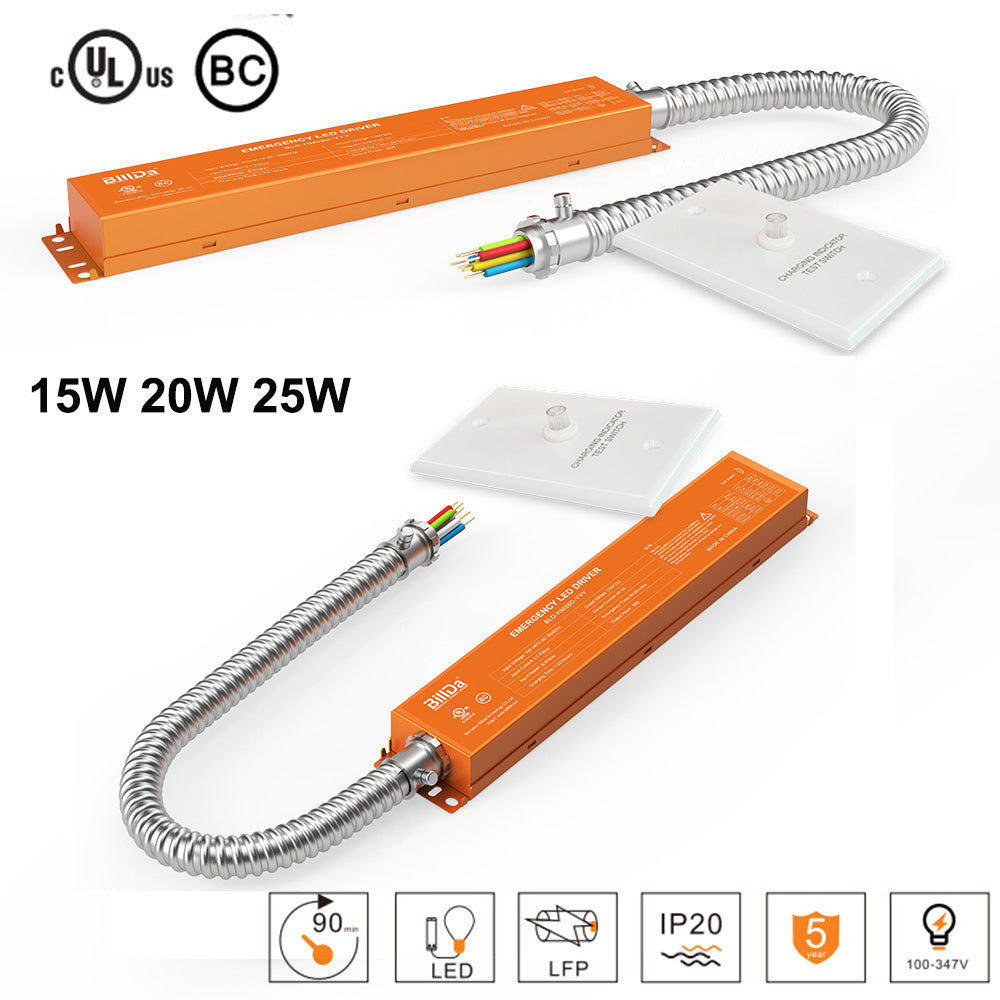

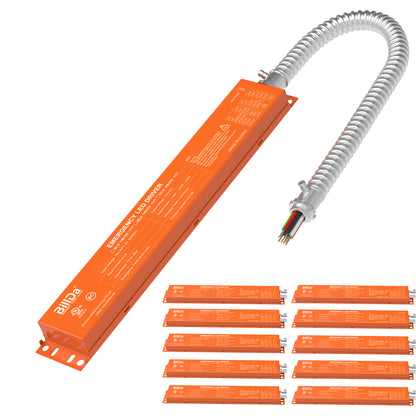

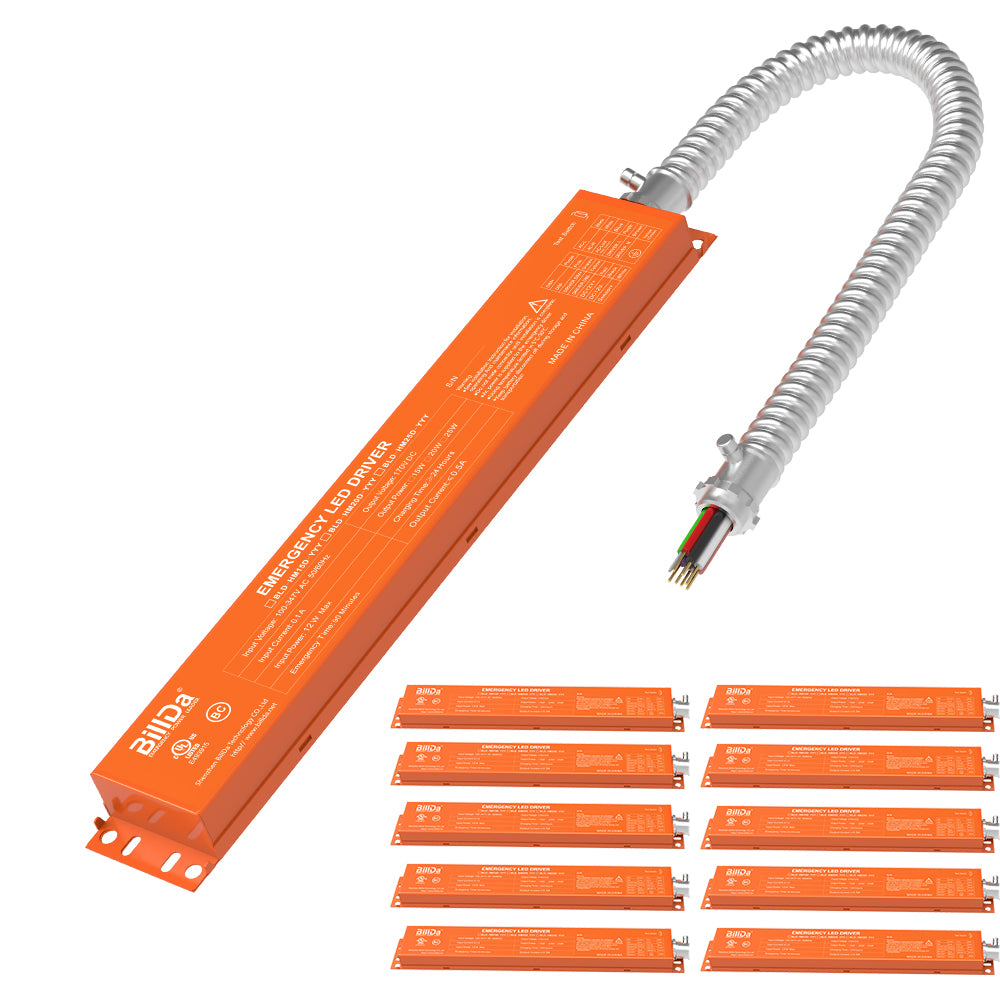

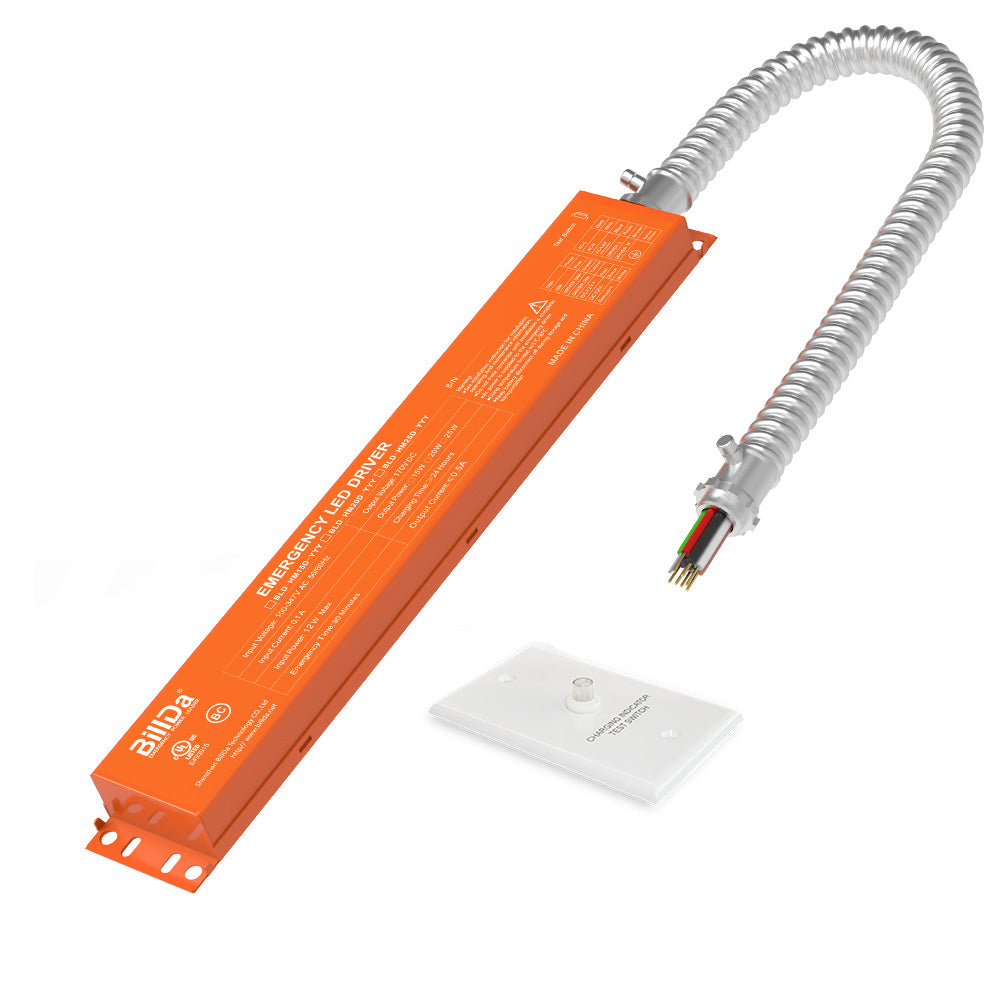

LED Emergency Backup Driver 8W 15W 20W 25W 100V-347V Rechargeable Backup Battery, Over 90mins EMT for LED Troffer, Panel and Tubes UL Listed

Shipping:  US free shipping
Shipping by:  FedEx UPS
Delivery time:  2-4 business days after payment

Bigger Quantity Cheaper Price

LED Emergency Backup Battery Spec:

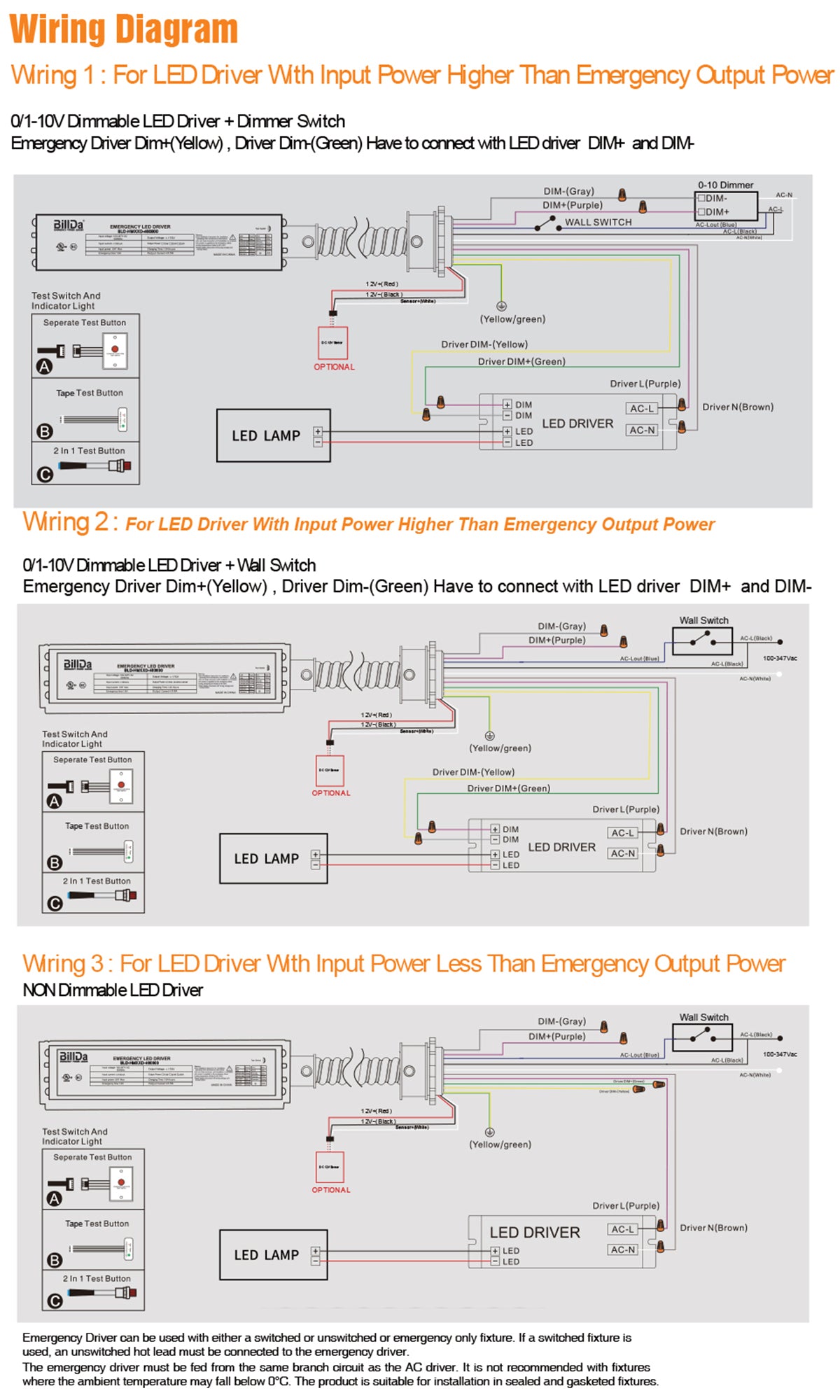

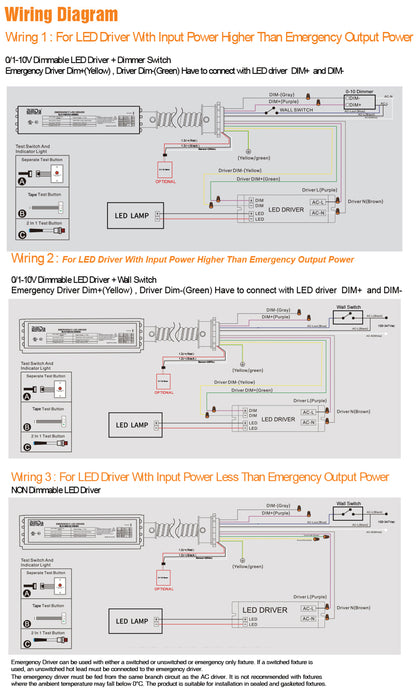

• Easy wiring: directly connect to AC input
• This emergency power bank is ideal for indoor led fixtures<=150W with 0/1-10V dimming wires.
• This emergency power also can work with up to 8-25W led lamps without dimming function
• UL listed for US and Canada.
• Constant power output
• Emergency LED driver lasting time can be 90min at least.
• Charging time is >= 24 hours
• Input voltage: 100-347VAC, 50/60HZ
• Output voltage: <=170V DC
• 8W is for led light<=80W, 15W is for led light<=150W, 20W is for led light<=150W, 25W is for led light<=150W. And need to have 0-10V dimming function.
• Emergency battery protection: overload protection, over-voltage protection, open circuit protection, short circuit protection.
• This emergency battery backup power supply can do self testing monthly / yearly.
• 5 years warranty

Product Description:

Ensure uninterrupted lighting and safety with our Emergency LED Driver Retrofit Kit, designed for reliable backup power in commercial and industrial LED lighting systems. This AC 100-347V universal input emergency LED driver automatically activates during power failure, providing dependable emergency illumination for critical environments.

Built for compliance and performance, this UL certified emergency LED power supply is compatible with a wide range of LED fixtures including panel lights, troffers, downlights, high bays, and commercial retrofit lighting systems. It is an ideal solution for contractors, facility managers, and lighting installers looking for a safe and code-compliant emergency lighting upgrade.

Engineered with advanced dimmable emergency backup technology, this driver ensures smooth operation and optimized light output during both normal and emergency modes. Its wide voltage compatibility (100-347V AC) makes it suitable for North American commercial and industrial applications.

Key Features:

• Universal Input Voltage 100-347V AC – Compatible with most commercial LED lighting systems in the US and Canada
• Emergency Backup Power Supply – Automatically activates during power outages for reliable safety lighting
• UL Certified Safety Compliance – Meets strict safety and performance standards for commercial installations
• Dimmable Emergency Function – Supports smooth transition and controlled light output in emergency mode

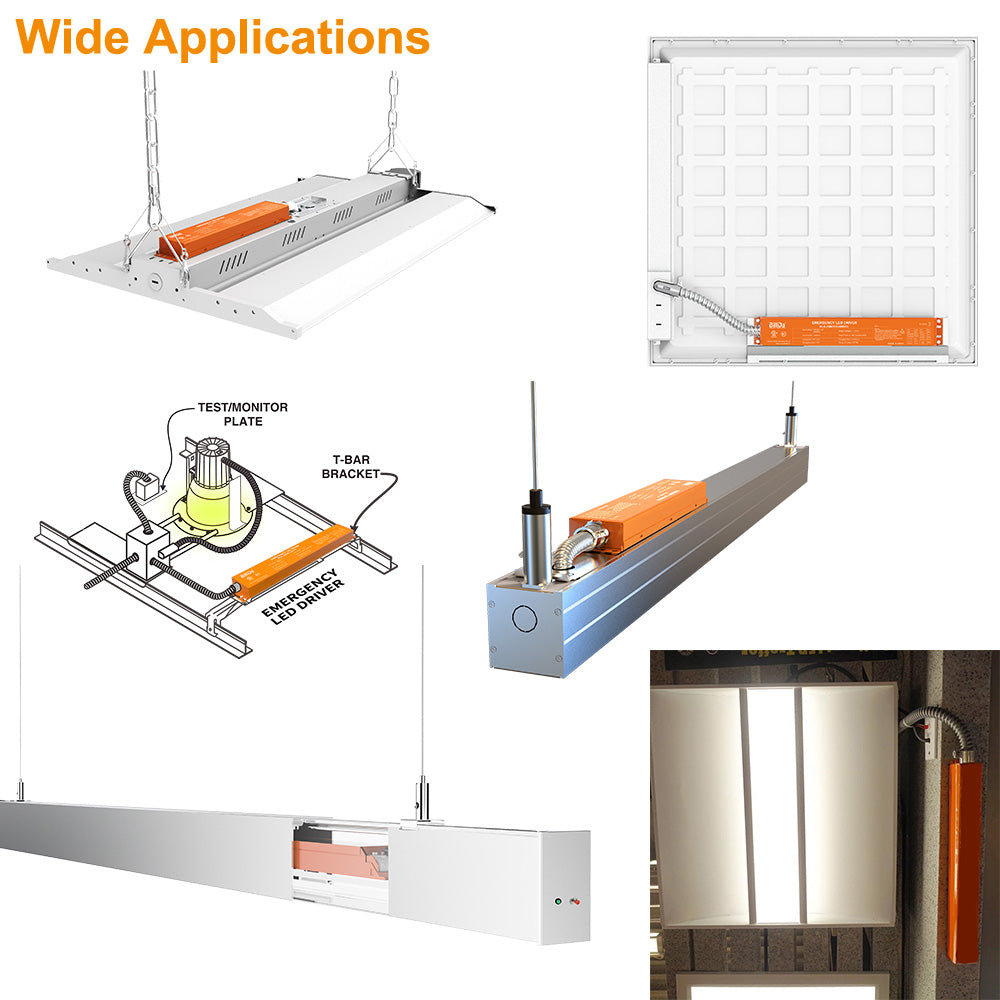

• Wide LED Fixture Compatibility – Works with LED panel lights, troffers, downlights, high bay fixtures, and retrofit kits
• Energy Efficient & Reliable – Low standby consumption with long service life for commercial applications
• Easy Retrofit Installation – Ideal for upgrading existing LED fixtures without full replacement
• Commercial Grade Performance – Designed for offices, schools, hospitals, warehouses, and retail spaces

Applications:

Perfect for:

• Commercial office lighting emergency backup systems
• LED troffer and panel light retrofit projects
• Warehouse and industrial facility lighting safety compliance
• Hospital, school, and public building emergency lighting
• Retail stores and shopping centers
• Parking structures and stairwell lighting systems

emergency LED driver, LED emergency power supply, 100-347V LED driver, UL listed emergency driver, dimmable LED emergency kit, retrofit emergency LED driver, commercial emergency lighting backup, LED fixture emergency power module, emergency lighting driver for troffer panel lights, LED backup battery driver

 Download Spec Sheet
