Wide Double Bullhorn Bracket for 2-3/8" Tenon, 29-15/16" Wide

Shipping:  US free shipping
Shipping by:  FedEx UPS
Delivery time:  2-4 business days after payment

Bigger Quantity Cheaper Price

Product Description：

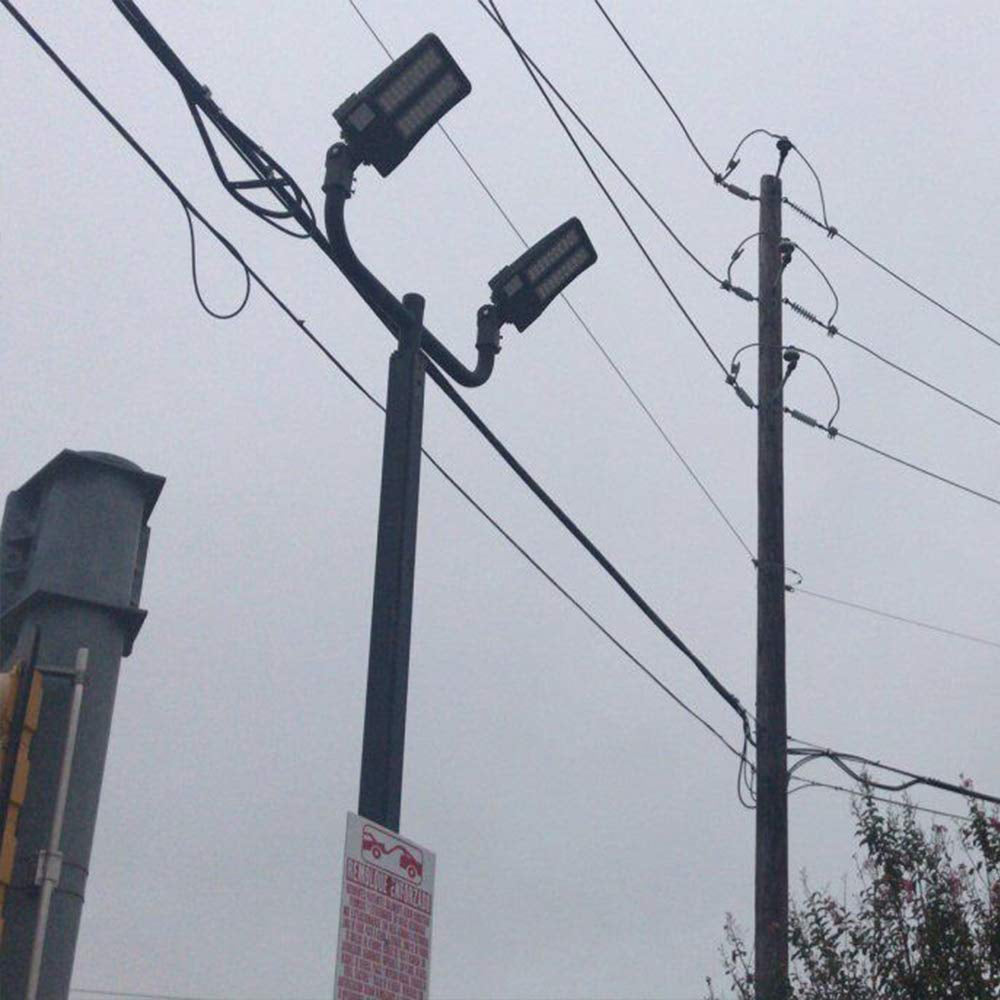

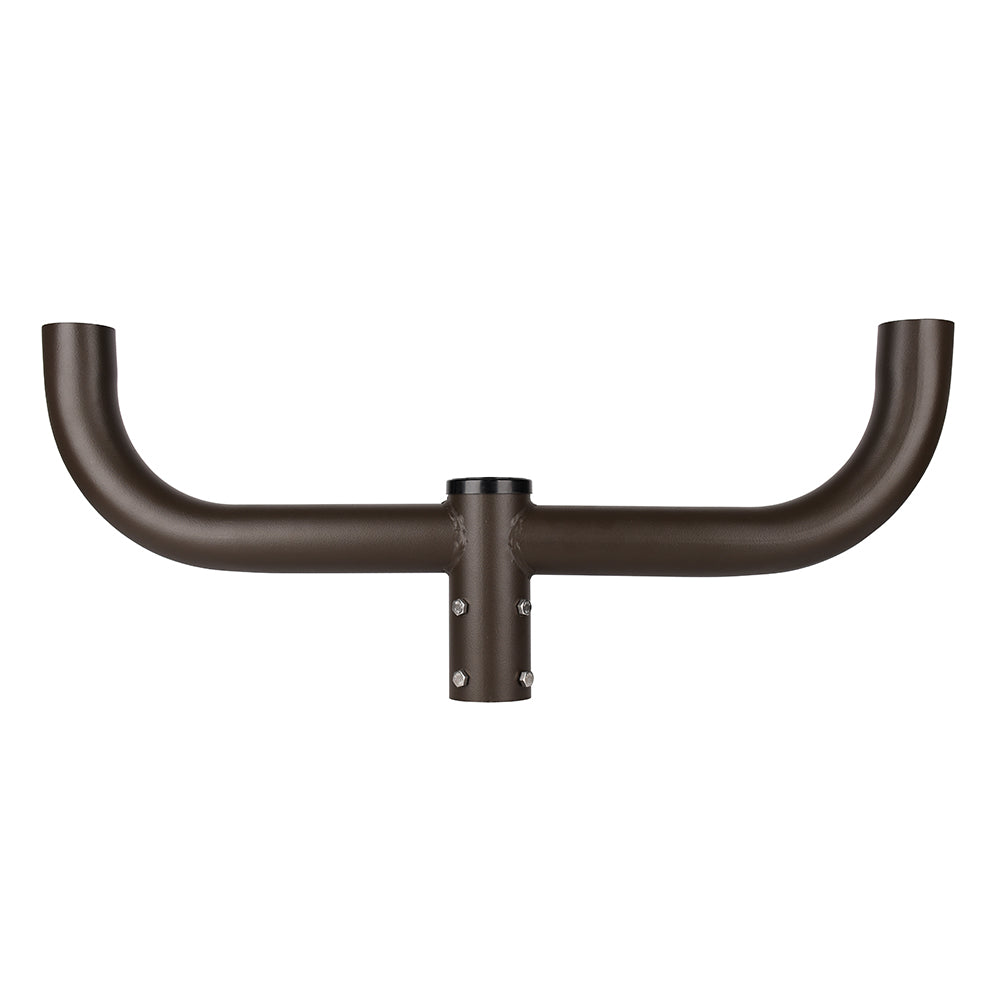

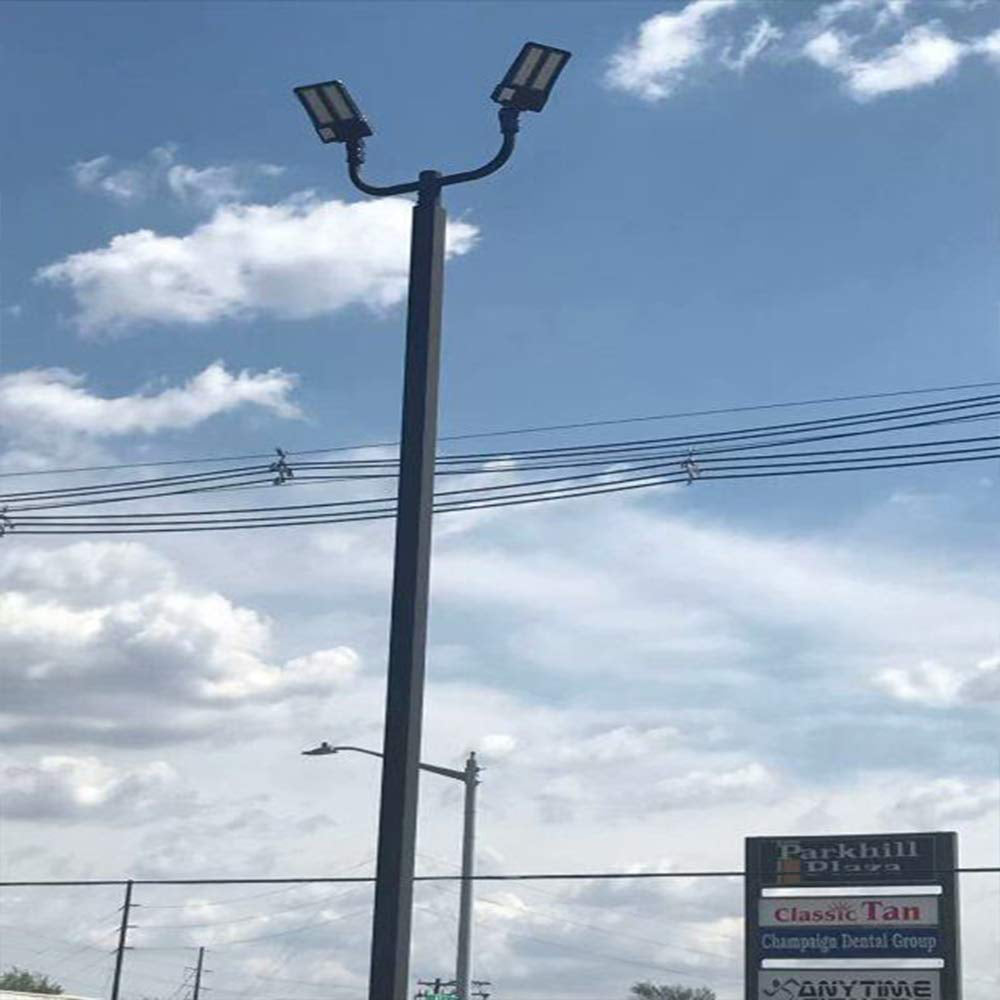

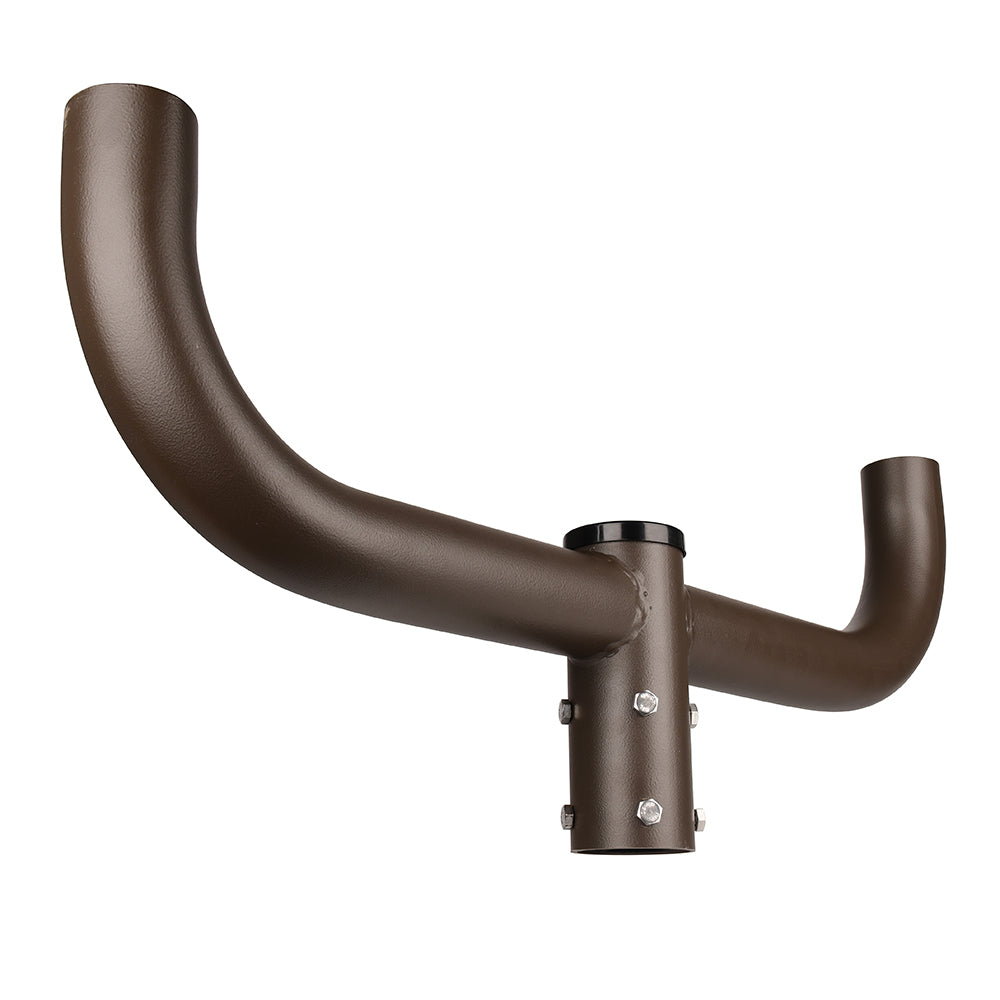

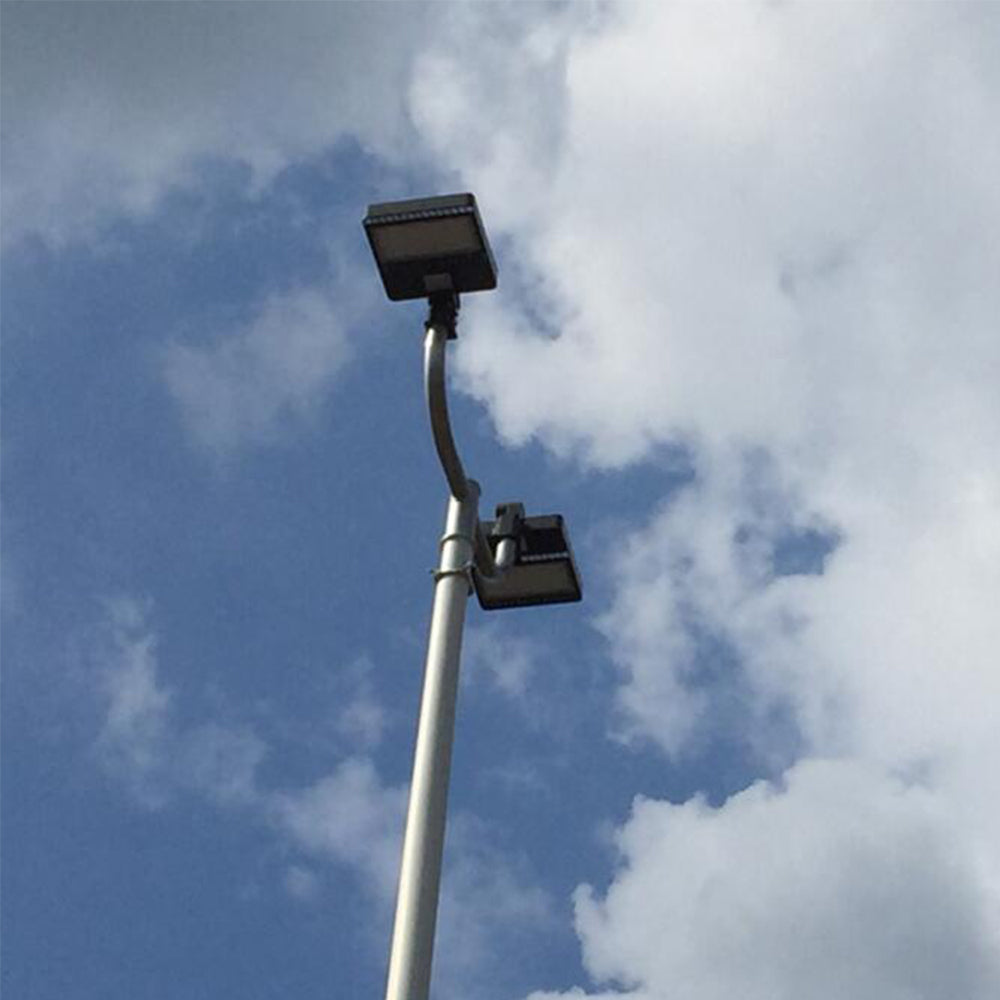

This heavy-duty wide double bullhorn bracket mounts over an existing 2-3/8 inch tenon and provides two opposing 2-3/8" OD fixture tenons for mounting two compatible LED parking lot lights, shoebox area lights, or other commercial outdoor fixtures equipped with slip fitters.

Featuring a 29-15/16 inch overall width and a 180-degree back-to-back configuration, this extended-width bullhorn bracket provides greater spacing between two LED fixtures than our compact double bullhorn model. The wider design is ideal for commercial outdoor lighting projects where increased fixture separation is preferred.

Each fixture-side arm provides a standard 2-3/8" OD tenon for compatible LED fixtures equipped with 2-3/8" slip fitters. The bracket fits over an existing 2-3/8" tenon, converting one mounting location into two opposing fixture positions.

Constructed from heavy-duty galvanized steel with a dark bronze finish, this wide double bullhorn mounting bracket is designed for parking lots, commercial properties, roadways, shopping centers, car dealerships, warehouses, industrial facilities, campuses, and LED lighting retrofit projects.

Key Features：

Wide 29-15/16" Double Bullhorn Design
Features a 29-15/16 inch overall width for increased spacing between two compatible commercial LED fixtures.

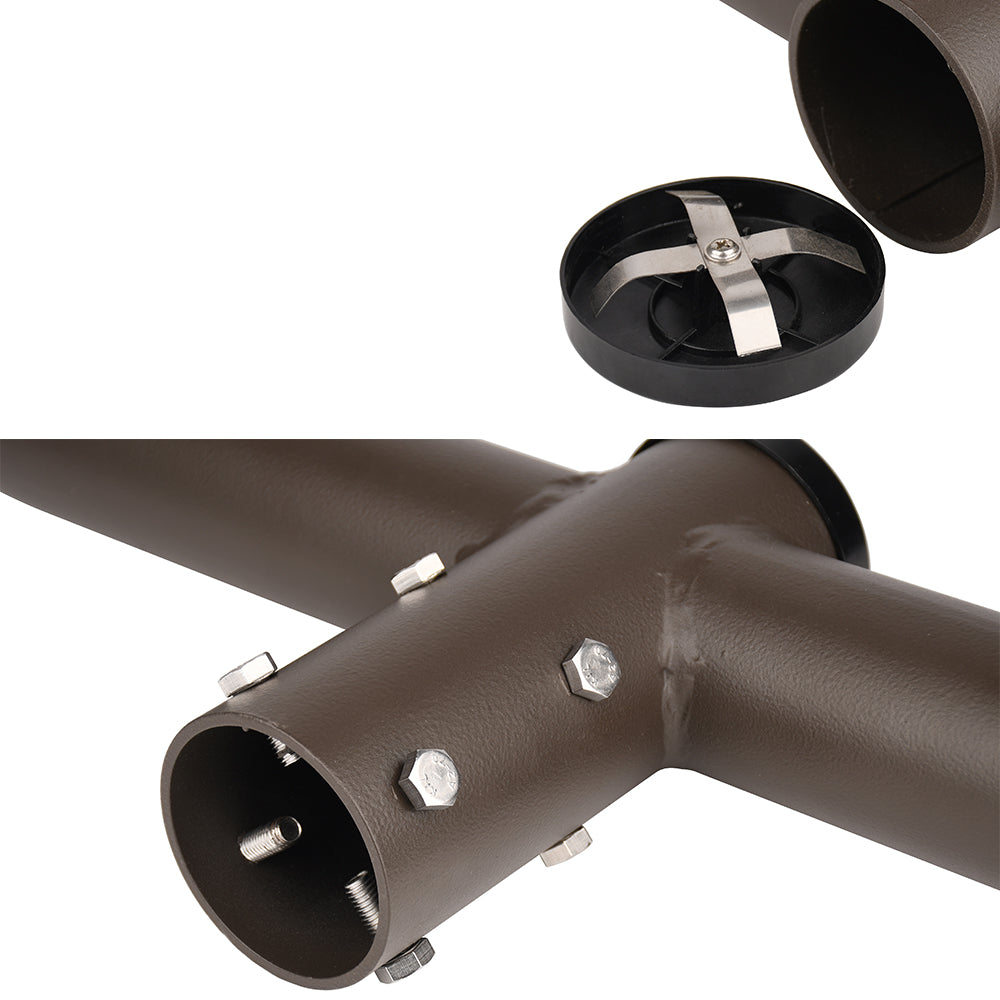

Mounts Over an Existing 2-3/8" Tenon
The center mounting connection is designed to fit over a compatible existing 2-3/8 inch tenon.

Two 2-3/8" OD Fixture Tenons
Provides two opposing 2-3/8 inch OD mounting tenons for compatible LED fixtures equipped with 2-3/8" slip fitters.

180° Back-to-Back Configuration
Two fixture mounting arms extend in opposite directions for two-direction commercial outdoor lighting coverage.

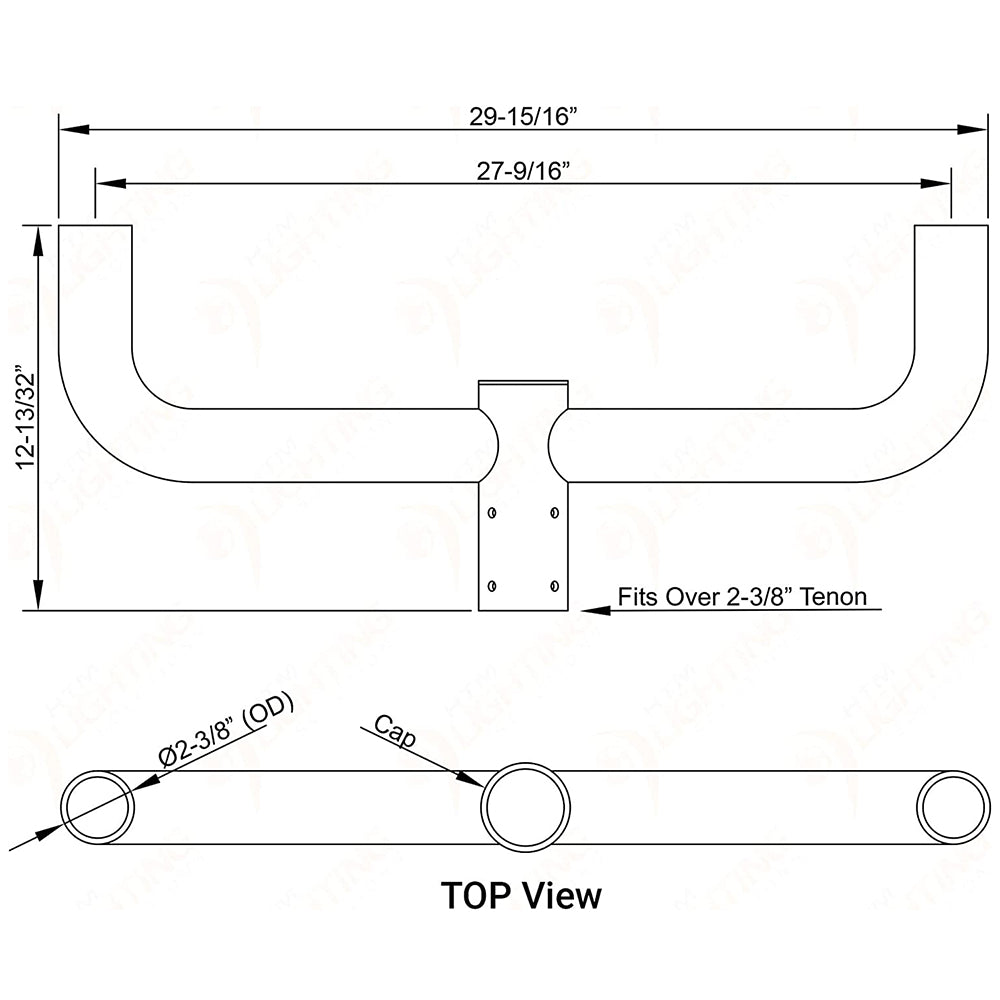

27-9/16" Inside Span
Provides a wide 27-9/16 inch inside span between the opposing fixture-side arms.

Heavy-Duty Galvanized Steel
Constructed from durable galvanized steel for strength, stability, and long-term commercial outdoor use.

Dark Bronze Finish
Professional dark bronze finish coordinates with commercial LED parking lot, shoebox, and area lighting systems.

Ideal for Commercial Outdoor Lighting
Suitable for parking lots, roadways, warehouses, shopping centers, car dealerships, industrial properties, campuses, and lighting retrofit projects.

Product Specifications：

Applications：

This 180 degree double bullhorn bracket is designed for commercial outdoor lighting projects requiring two compatible LED fixtures mounted in opposite directions from an existing 2-3/8" tenon.

Common applications include LED parking lot lighting, shoebox area lighting, commercial parking lots, roadway lighting, shopping centers, car dealerships, warehouses, industrial facilities, campuses, security lighting, and LED retrofit projects.

FAQ：

What does this double bullhorn bracket mount onto?
It is designed to mount onto a compatible existing 2-3/8 inch tenon.

How many LED fixtures can it support?
The double bullhorn design provides two mounting positions for two compatible LED fixtures.

What is the arm configuration?
The two mounting arms extend in opposite directions in a 180-degree configuration.

What is the difference between this bracket and the other Choierlight double bullhorn bracket?

This is the wide double bullhorn model, measuring 29-15/16 inches overall with a 27-9/16 inch inside span. Choierlight also offers a more compact double bullhorn configuration. Check the product dimension drawings before ordering to select the appropriate bracket for your installation.

What types of lights can be used with this bracket?
It is designed for compatible LED parking lot lights, shoebox lights, area lights, flood lights, and similar commercial outdoor fixtures using 2-3/8" slip fitter connections.

Is this the same size as your other 180° double bullhorn bracket?
No. Choierlight offers multiple 180-degree double bullhorn bracket configurations with different dimensions. Always check the product dimensions before ordering to select the correct bracket for your project.

What material is it made from?
Heavy-duty galvanized steel with a dark bronze finish.

Are the LED fixtures included?
No. The bracket is sold separately from the compatible LED lighting fixtures.
