Atex Approved LED Lighting 150W 200W 5000K 100-277V/200-480V 0-10V Dimmable Class I Division 2 UL844 LED Explosion Proof Light, ETL DLC Listed

Atex Approved LED Lighting 150W 200W 5000K 100-277V/200-480V 0-10V Dimmable Class I Division 2 UL844 LED Explosion Proof Light, ETL DLC Listed

Watt & Voltage

In stock

Regular price $369.00
Regular price Sale price $369.00
Sale Sold out
Shipping calculated at checkout.

Shipping:  US free shipping
Shipping by:  FedEx UPS
Delivery time:  2-4 business days after payment

Bigger Quantity Cheaper Price

For Wholesale and Custom Order, Please Contact sales@choierlight.com
Minimum Same Variant Quantity Discount
20-49 3%
50-99 5%
100+ 8%

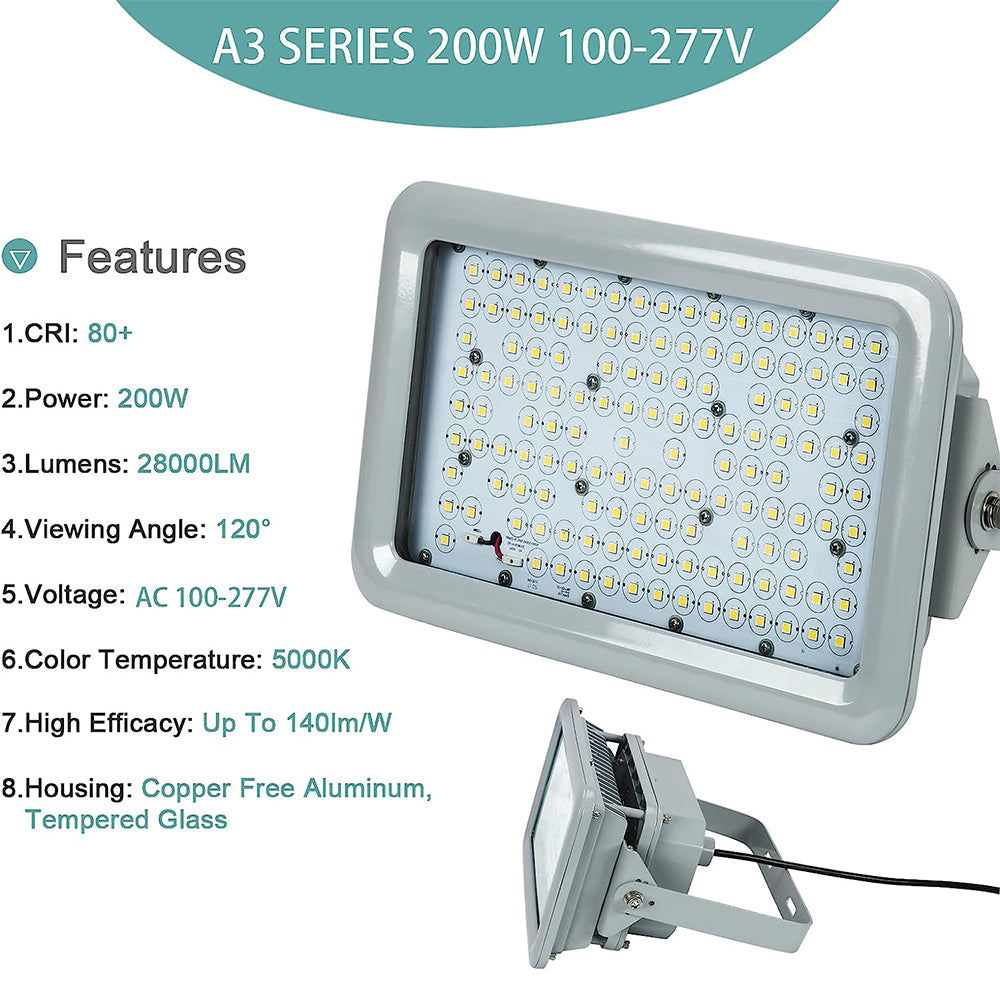

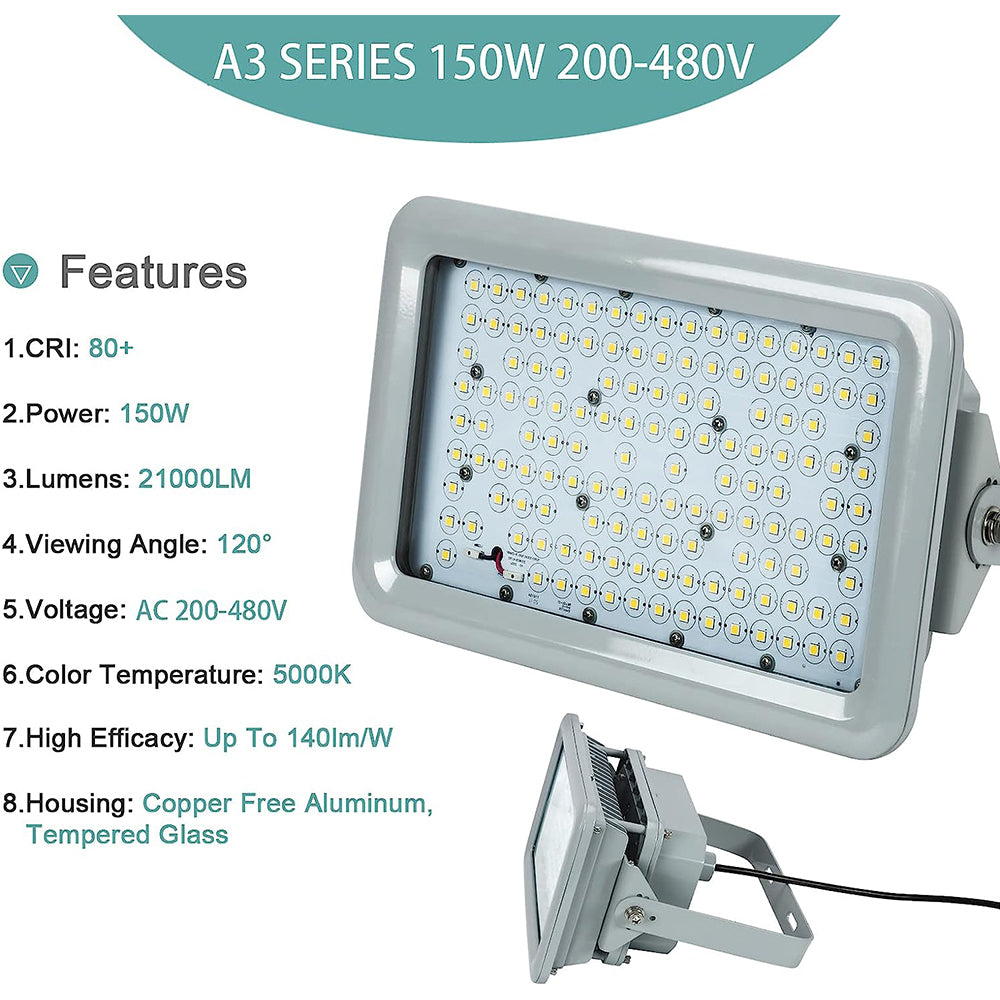

LED Explosion Proof Light Spec:

  • Available Wattage: 150W 200W
  • Watt equivalent: 300-600W MH HPS HID(150W), 400-800W MH HPS HID(200W)
  • Color Temperature Available: 5000K daylight
  • Lumen: 21000LM(150W), 28000LM(200W)
  • Beam Angle: 120degree
  • Lifespan: 50,000 hours
  • Voltage: 100-277V / 200-480V 50/60HZ
  • Power source: corded-electric
  • Working temperature: -40℉ – 122℉
  • Power factor: >90%
  • Photocell: no photocell
  • Dimmable: 0-10v dimming
  • Housing: Copper-free aluminum
  • Lens: Tempered glass
  • Hardware & Mounting Bracket: Stainless steel
  • Shell Finish Color: gray

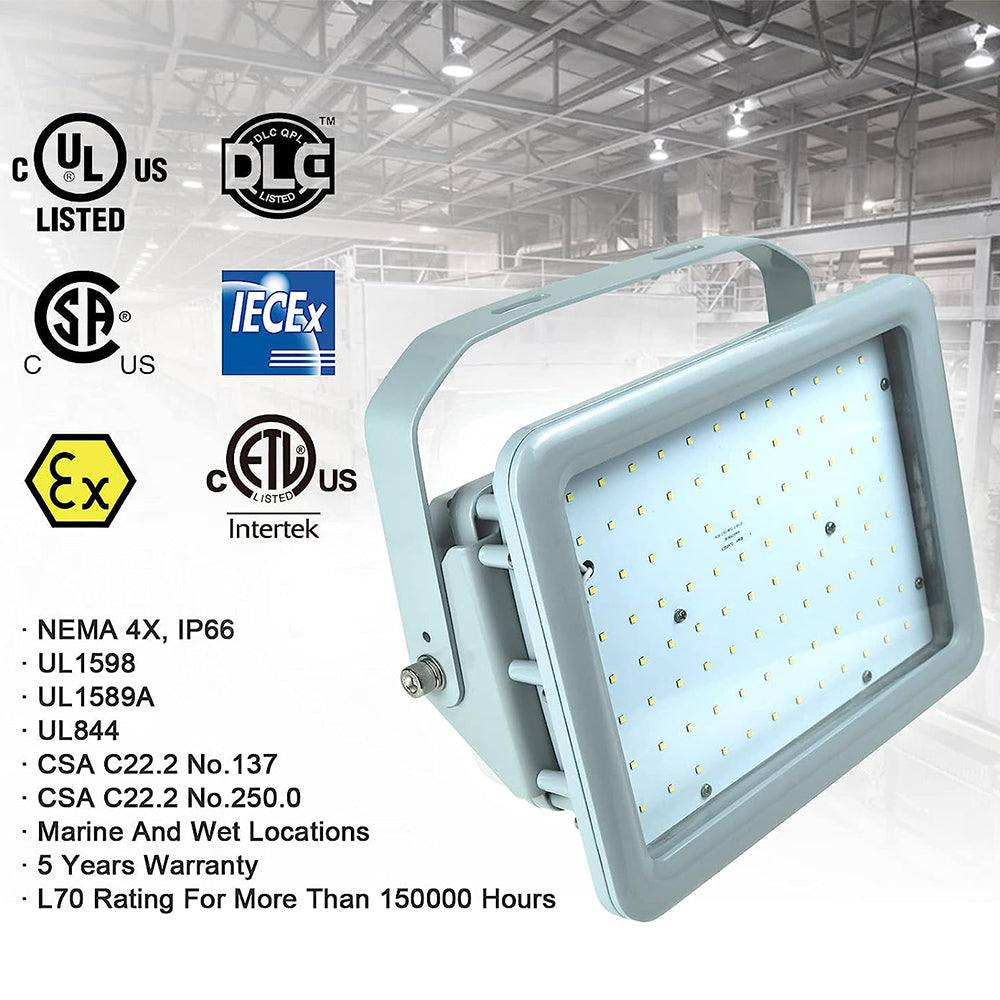

  • ETL, cETL, DLC approved
  • 5 years of Manufacturer's Warranty
  • Marking UL844 (North American):Class I, Division 2, Groups A, B, C, D;Class II, Division 1, Groups E, F, G;Class II, Division 2, Groups F, G;Class III
  • Marking IECEx: Ex ec IIC T3C Gc; Ex tb IIIC T103°C Db; Ex mb eb IIC T3C Gb; Ex tb IIC T125°C Db
  • Marine Marking: UL 1598; UL 1598A; ABS
  • Marking ATEX:II 3 G Ex ec IIC T3 Gc;Il 2 D Ex tb IIIC T103°C Db;II 2 G Ex mb eb IIC T3 Gb;II 2 D Ex tb IIC T125°C Db
  • IP66

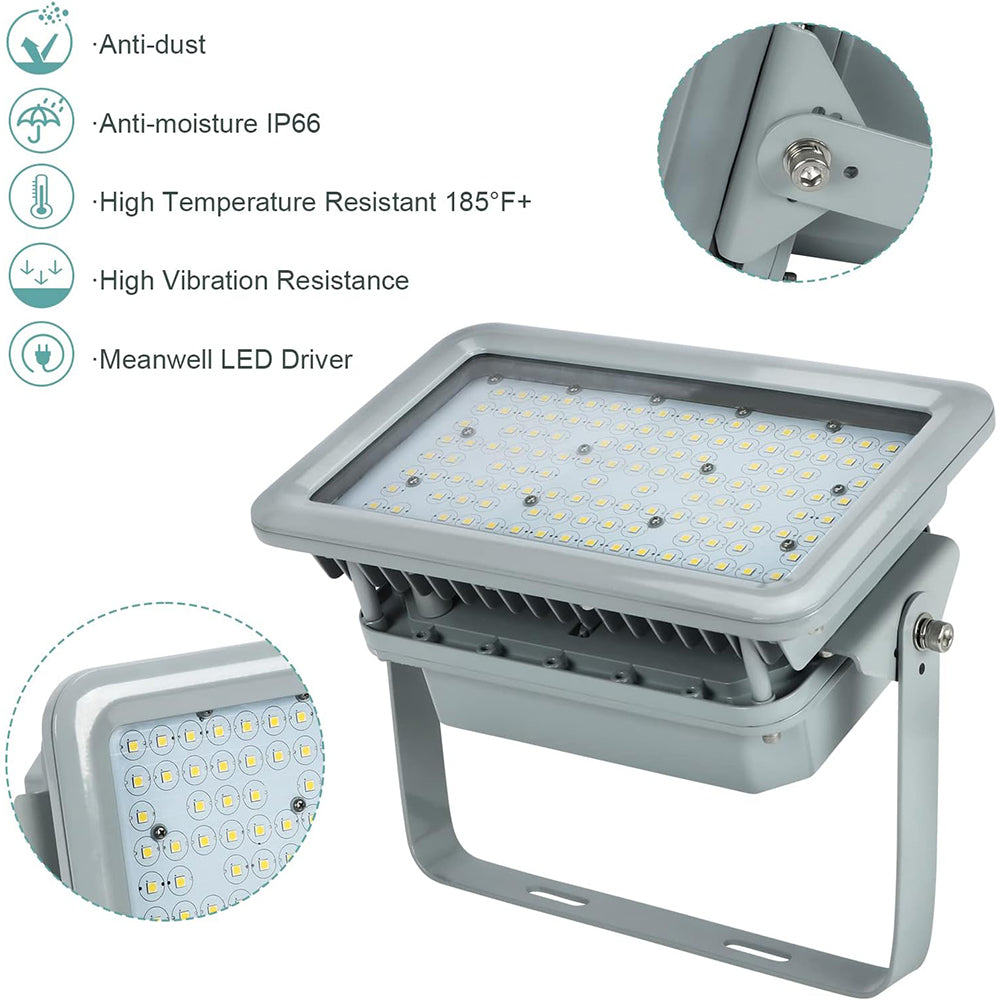

LED Hazardous Lighting Features:

  • Dimmable and battery backup function is available.
  • High-quality SMT LED and Meanwell driver.
  • Heavy-duty and high impact resistance.
  • Replaceable LED board and drivers.
  • Integrated junction box for driver.
  • Marine rating powder coated finish treatment.

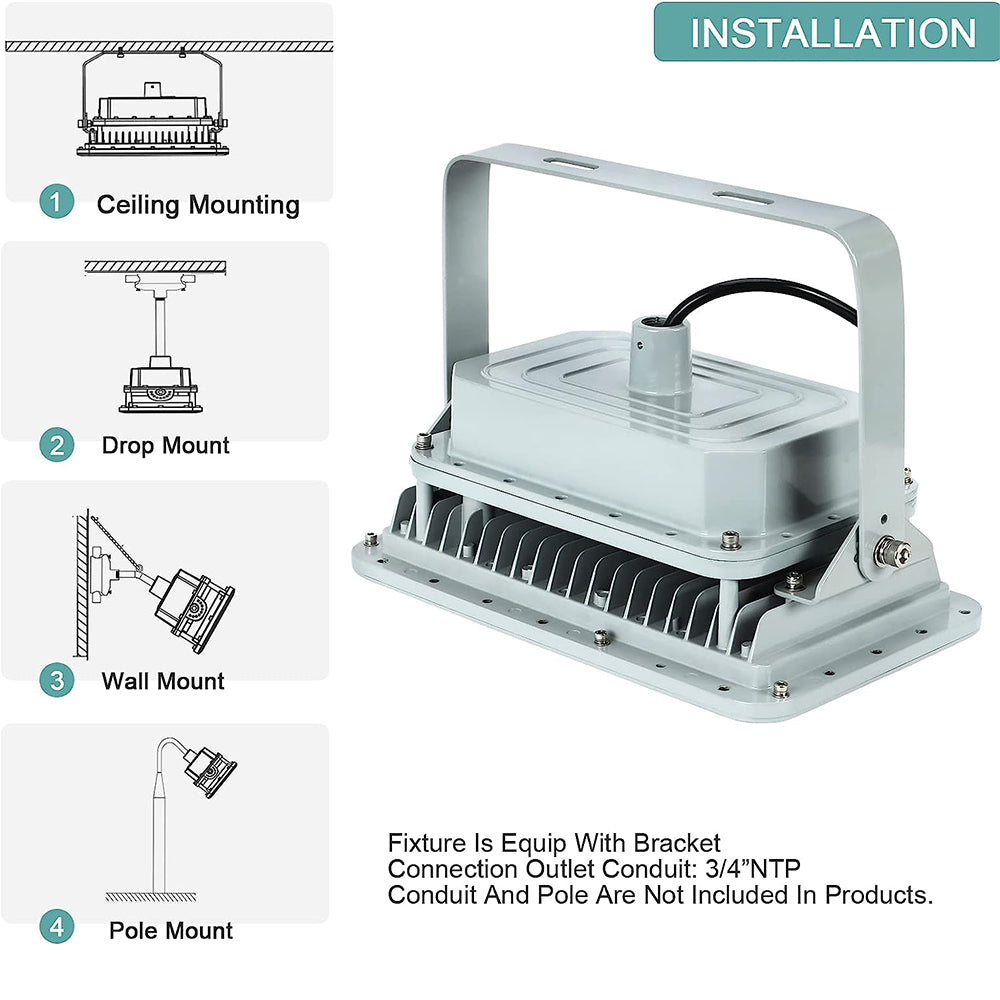

  • Various installation ways for different applications.
  • Glass lens or polycarbonate lens for making different beam angles.
  • Low temperature applications to -40°C (-40°F) and high temperature up to 50°C (122°F).

LED Explosion Proof Lighting Application:

1. Oil and gas industry

  • All petroleum production and refifining
  • Petroleum loading and transportation
  • Petroleum storage and retail
  • LNG industry
  • All mining operations and service

2. Ocean, marine and aerospace fifield

  • Ocean platform operation facilities
  • Ocean vessel operations
  • Aerospace clean room and production

3. Food and alcohol industry

  • Flour and fifine particle production and storage
  • Food and distilling production
  • Alcohol industry

4. Chemical industry

  • All types of paint facilities
  • Chemical production and storage

5. Metal treatment

  • Steel and aluminum factories
  • Pumping stations in any environment
  • Metal smelting, foundry and fabrication

6. Other high humidity, high dust, high temperature, vapor locations.

Download Spec Sheethttps://cdn.shopify.com/s/files/1/0692/4245/4334/files/Temporary-Work-Light-V4.9.pdf?v=1672109540






View full details

Any question, please contact us. Thank you!
