Triple Spoke Bracket for 2-3/8" Tenon with 90° Horizontal Arms
Triple Spoke Bracket for 2-3/8" Tenon with 90° Horizontal Arms
In stock
Couldn't load pickup availability
DShipping: US free shipping
Shipping by: FedEx UPS
Delivery time: 2-4 business days after payment
Bigger Quantity Cheaper Price
| Minimum Same Variant Quantity | Discount |
| 20-49 | 3% |
| 50-99 | 5% |
| 100+ | 8% |

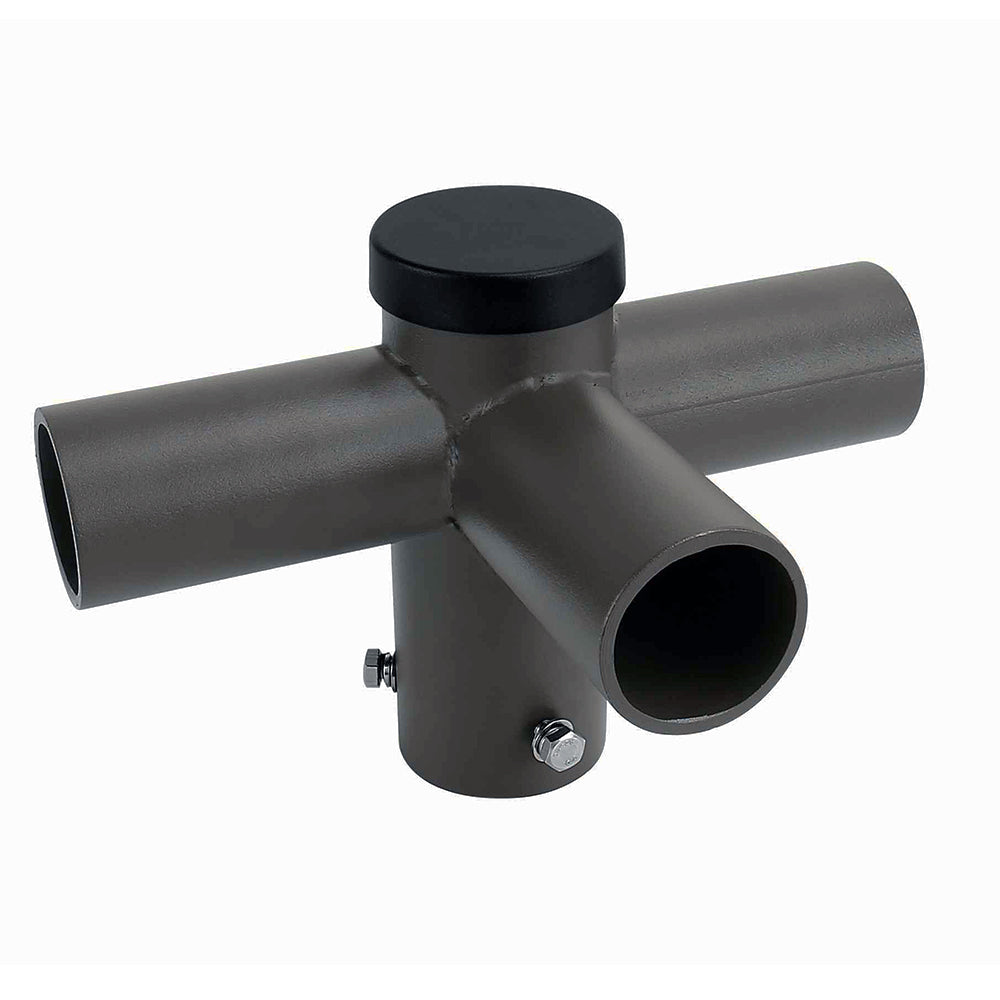

Product Description:

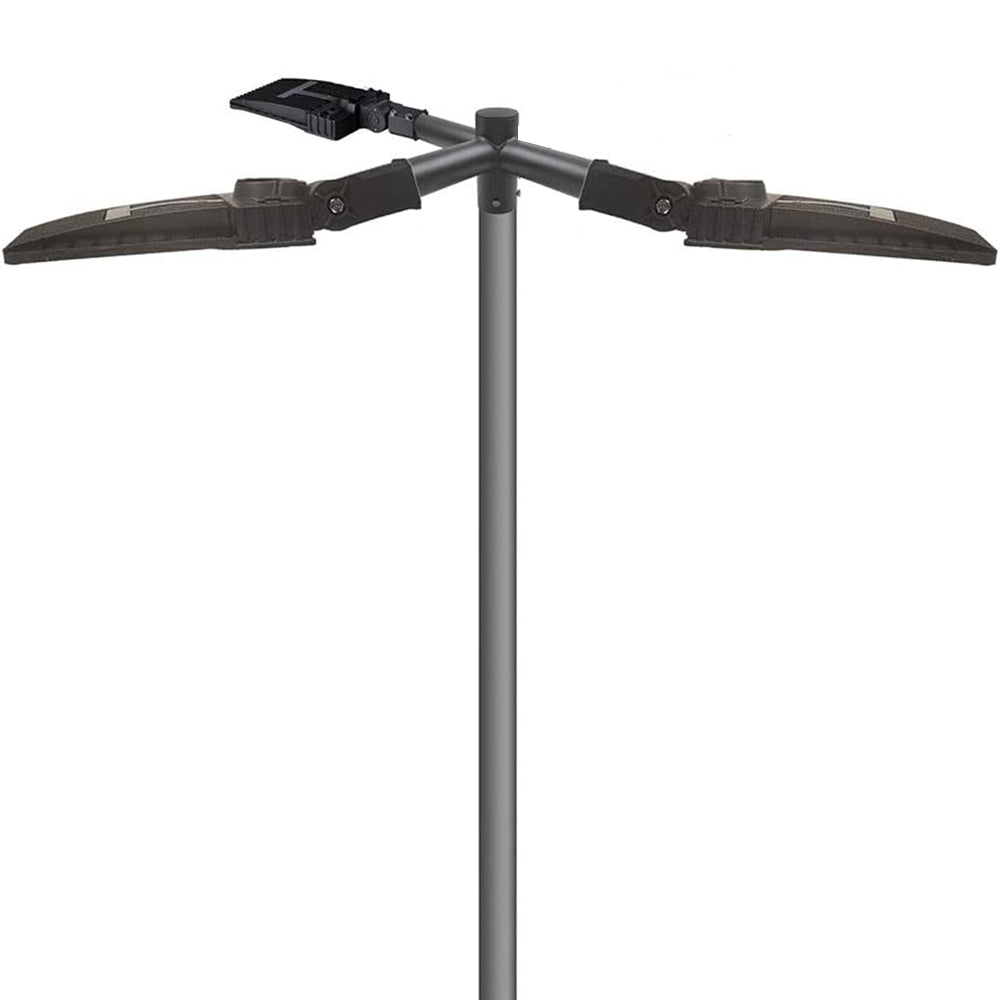

This heavy-duty triple spoke bracket mounts onto an existing 2-3/8 inch tenon and provides three horizontal 2-3/8" tenons in a 90-degree configuration for mounting three compatible LED parking lot lights, shoebox area lights, street lights, or other commercial outdoor fixtures equipped with slip fitters.

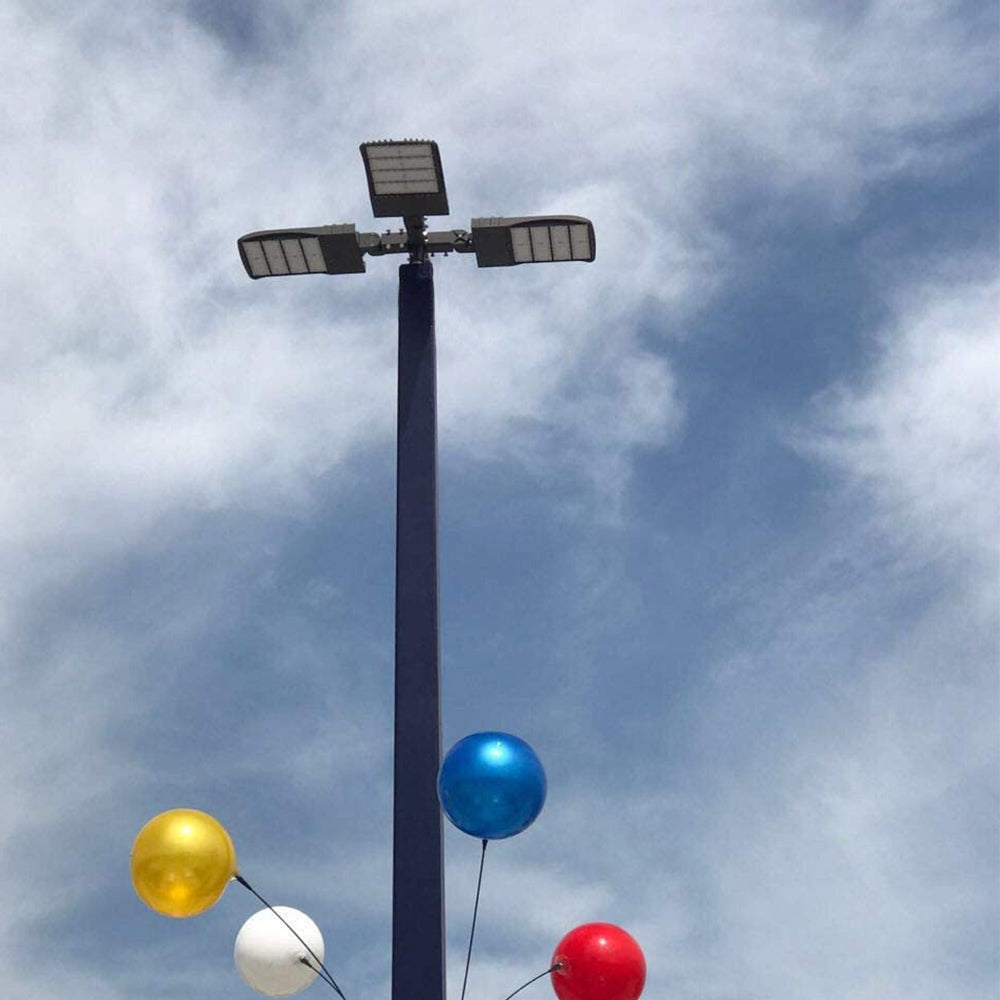

Designed for commercial outdoor lighting installations, this 90 degree triple tenon adapter converts one existing 2-3/8" tenon into three horizontal fixture mounting points. The three-arm configuration allows multiple LED fixtures to provide multi-directional lighting coverage from a single tenon location.
Each horizontal arm provides a standard 2-3/8" OD tenon for compatible commercial LED fixtures using slip fitter mounts. This makes the bracket ideal for parking lots, commercial properties, shopping centers, car dealerships, warehouses, campuses, industrial facilities, and other large outdoor areas requiring multiple LED fixtures.
Constructed from heavy-duty galvanized steel with a dark bronze finish, this triple spoke mounting bracket provides strength, stability, and long-term performance for demanding commercial outdoor lighting applications.
Key Features:
Mounts on an Existing 2-3/8" Tenon
Designed to mount onto a compatible existing 2-3/8 inch tenon, creating three horizontal mounting positions for commercial LED fixtures.
90° Triple Spoke Design
Three horizontal mounting arms provide a multi-directional configuration for commercial parking lot and outdoor area lighting installations.
Three 2-3/8" Horizontal Tenons
Provides three built-in 2-3/8" OD tenons for mounting three compatible LED parking lot lights, shoebox area lights, street lights, or other fixtures equipped with slip fitters.
Mount Three LED Fixtures from One Tenon
Converts one existing tenon location into three fixture mounting positions for broader commercial outdoor lighting coverage.
Heavy-Duty Galvanized Steel Construction
Constructed from durable galvanized steel for strength, stability, and long-term performance in demanding outdoor environments.
Dark Bronze Finish
Coordinates with common commercial LED shoebox lights, parking lot fixtures, area lights, and outdoor lighting systems.

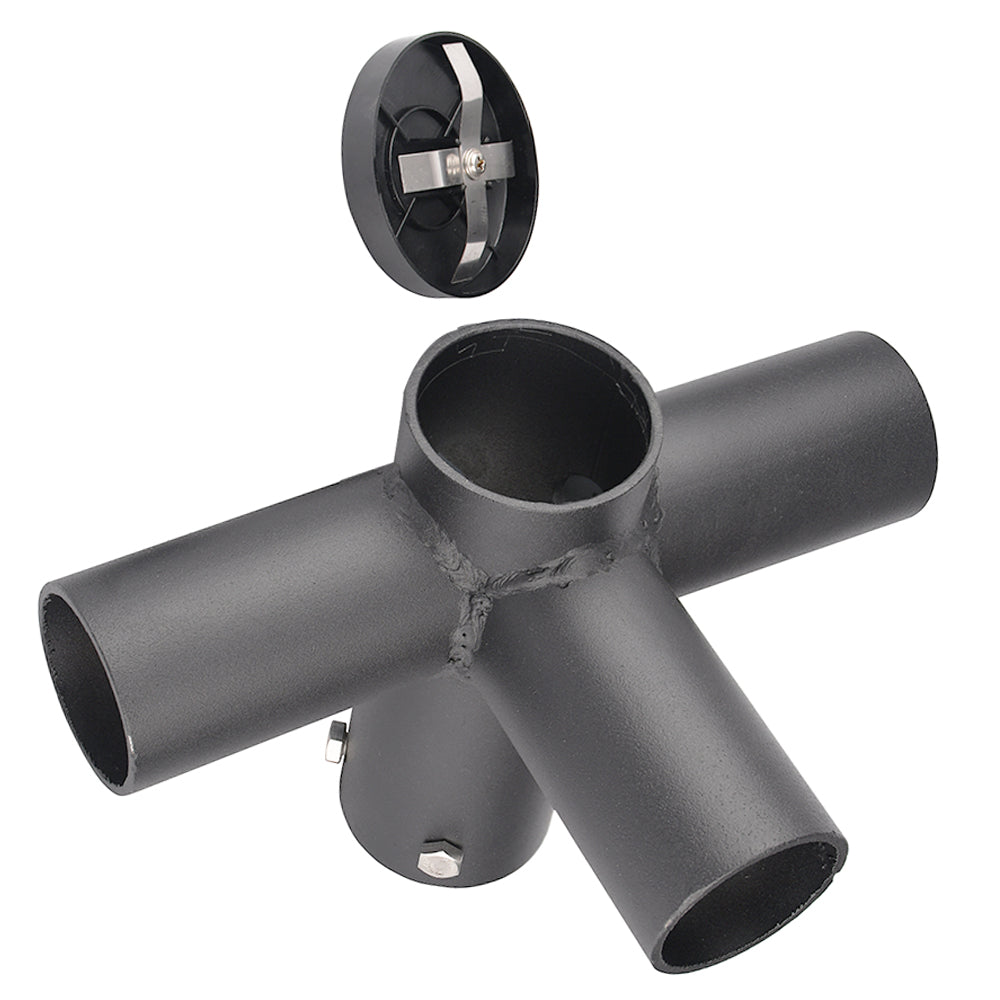

Built-In Wiring Access
Provides wiring access for practical installation of three compatible commercial LED fixtures. The current page also confirms wiring access.

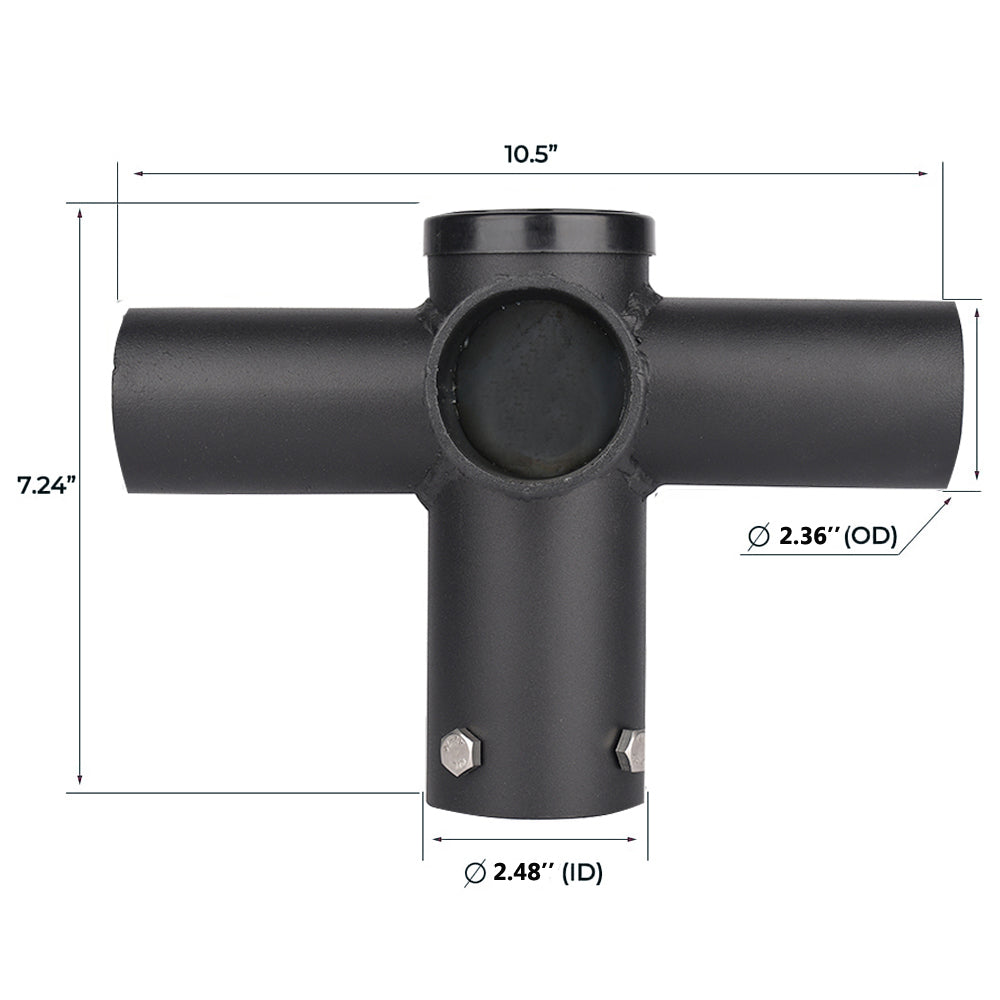

Product Specifications:
| Specification | Details |
|---|---|
| Product Type | Triple Spoke Tenon Mount Bracket |
| Input / Mounting Connection | Existing 2-3/8" Tenon |
| Configuration | Triple Spoke / 3-Way |
| Number of Fixture Tenons | 3 |
| Fixture Tenon Size | 2-3/8 Inch OD |
| Fixture Tenon Orientation | Horizontal |
| Arm Configuration | 90 Degrees |
| Fixture Mount | Slip Fitter |
| Fixture Capacity | 3 Compatible LED Fixtures |
| Wiring Access | Yes |
| Material | Heavy-Duty Galvanized Steel |
| Finish | Dark Bronze |
| Compatible Fixtures | LED Parking Lot, Shoebox, Area & Street Lights |
| Application | Commercial Outdoor Lighting |
| Stock | U.S. Warehouse |
| Shipping | Free U.S. Shipping |
| Carrier | FedEx / UPS |
| Typical Delivery | 2–4 Business Days |
Applications:
This 90 degree triple spoke tenon bracket is designed for commercial and industrial outdoor lighting installations requiring three compatible LED fixtures mounted from an existing 2-3/8" tenon.
Common applications include LED parking lot lighting, shoebox area light installations, parking lot perimeter lighting, commercial area lighting, shopping center parking lots, car dealerships, warehouse exterior lighting, school and university campuses, industrial facilities, distribution centers, security lighting, and LED parking lot retrofit projects.
FAQ:
What size tenon does this triple spoke bracket mount on?
This bracket is designed to mount onto a compatible existing 2-3/8 inch tenon.
How many LED lights can be installed on this bracket?
The bracket provides three horizontal tenons for mounting three compatible slip fitter LED fixtures.
What size are the three fixture tenons?
Each horizontal mounting point provides a standard 2-3/8 inch OD tenon for a compatible slip fitter fixture.
What is the mounting configuration?
This model uses a three-arm 90-degree configuration for multi-directional commercial outdoor lighting.
What is the difference between this model and the 120° triple spoke bracket?
This model uses a 90° three-arm configuration, while the 120° model positions three arms evenly at 120-degree intervals.
Can I use this bracket with LED shoebox lights?
Yes. It is designed for compatible LED shoebox, parking lot, area, and similar commercial outdoor lights using 2-3/8" slip fitters.
What material is the bracket made from?
It is constructed from heavy-duty galvanized steel with a dark bronze finish.
Are the LED fixtures included?
No. This product is the triple mounting bracket only. Compatible LED fixtures are sold separately.
Do you offer bulk pricing?
Yes. The current page shows 3% off for 20–49 pieces, 5% for 50–99, and 8% for 100+.
