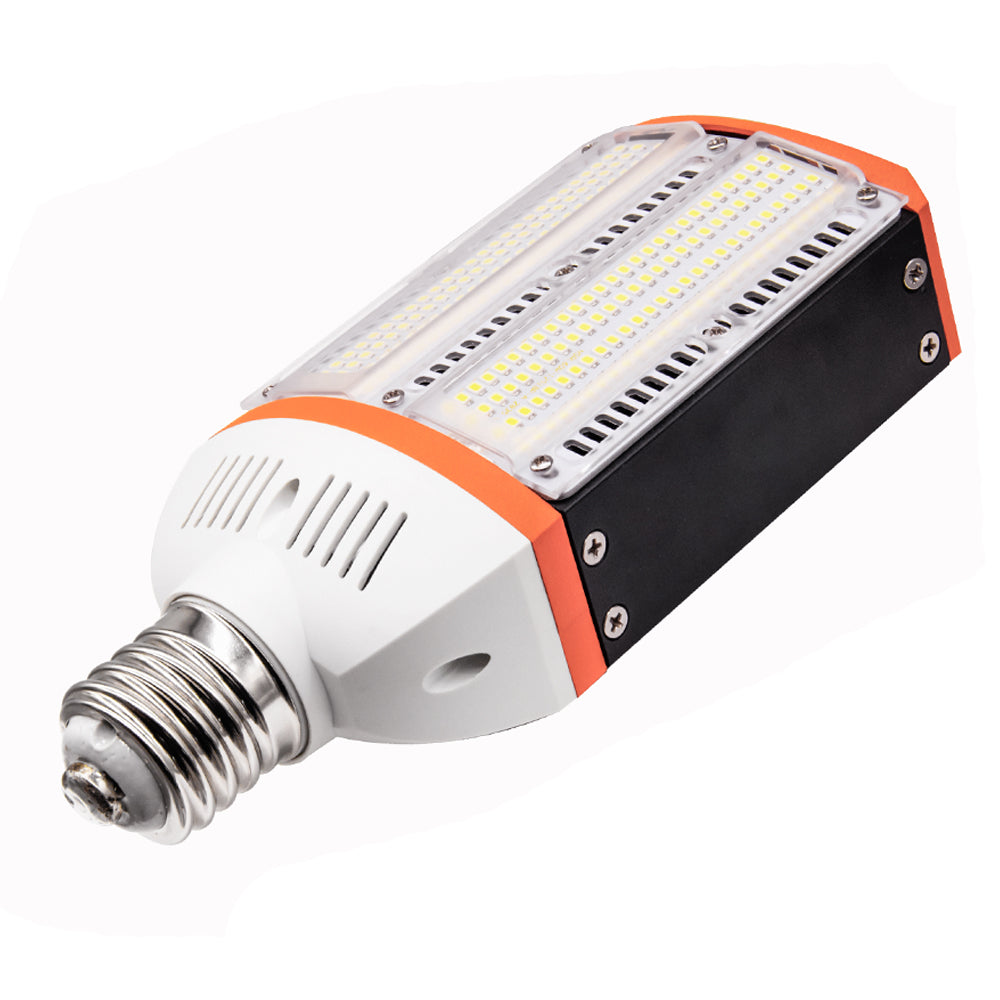

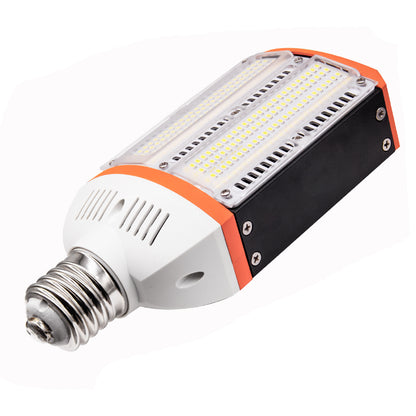

30W 40W 60W LED Shoebox Corn Bulb Retrofit Lamp, E26/E39, 5000K

Product Description:

The Choierlight LED Shoebox Corn Bulb Retrofit Lamp is designed to upgrade compatible shoebox area lights, wall pack fixtures, and commercial HID lighting systems without replacing the entire fixture. Available in 30W, 40W, and 60W with E26 medium or E39 mogul screw base options, these LED retrofit lamps provide bright 5000K daylight illumination with a 180° beam angle.

Featuring 100–277V AC input, aluminum heat-dissipation construction, and a 50,000-hour rated lifespan, these commercial LED retrofit bulbs are an energy-efficient alternative to compatible metal halide, high-pressure sodium, and HID lamps. ETL/cETL approved according to product specifications, backed by a 3-year manufacturer's warranty.

Key Features:

Designed for Shoebox & Wall Pack Retrofit

Ideal for upgrading compatible LED shoebox area light housings, parking lot fixtures, wall packs, and commercial HID fixtures while retaining the existing fixture housing.

Three Fixed Wattage Options

Available in 30W, 40W, and 60W models to meet different commercial and outdoor lighting retrofit requirements.

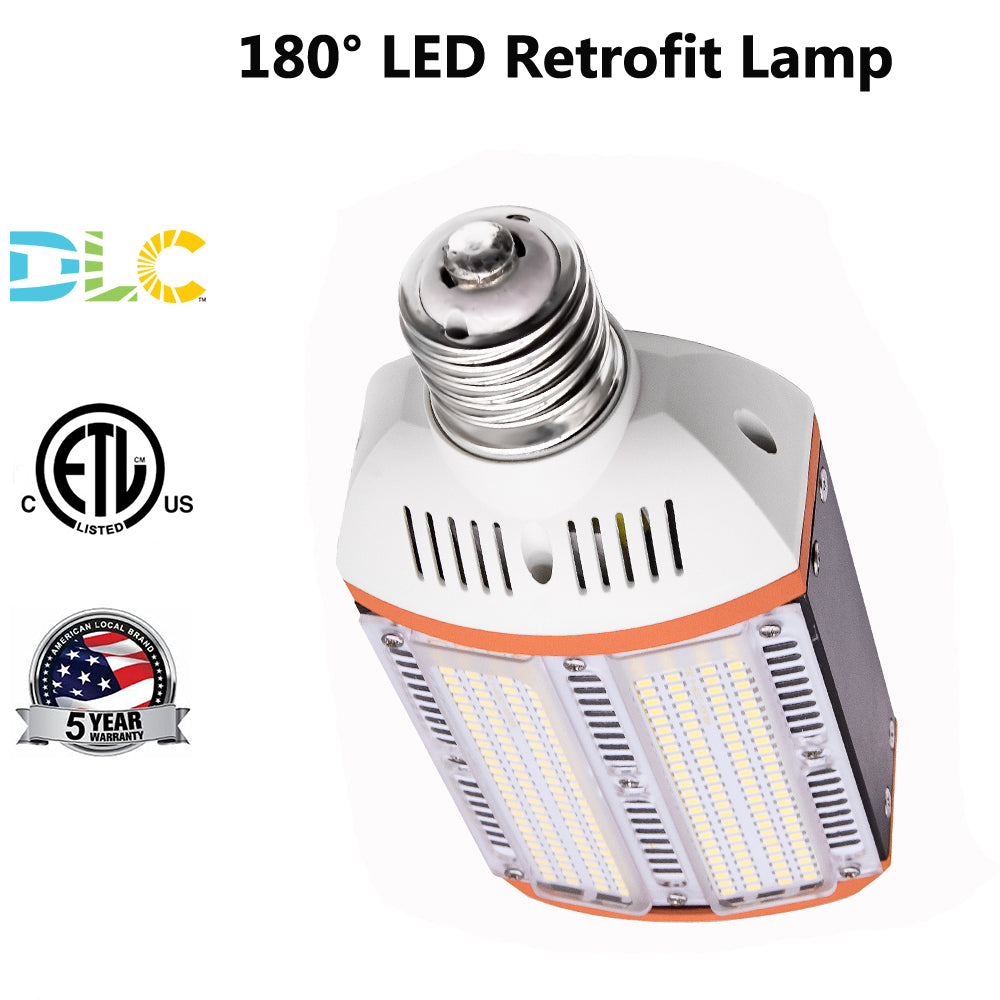

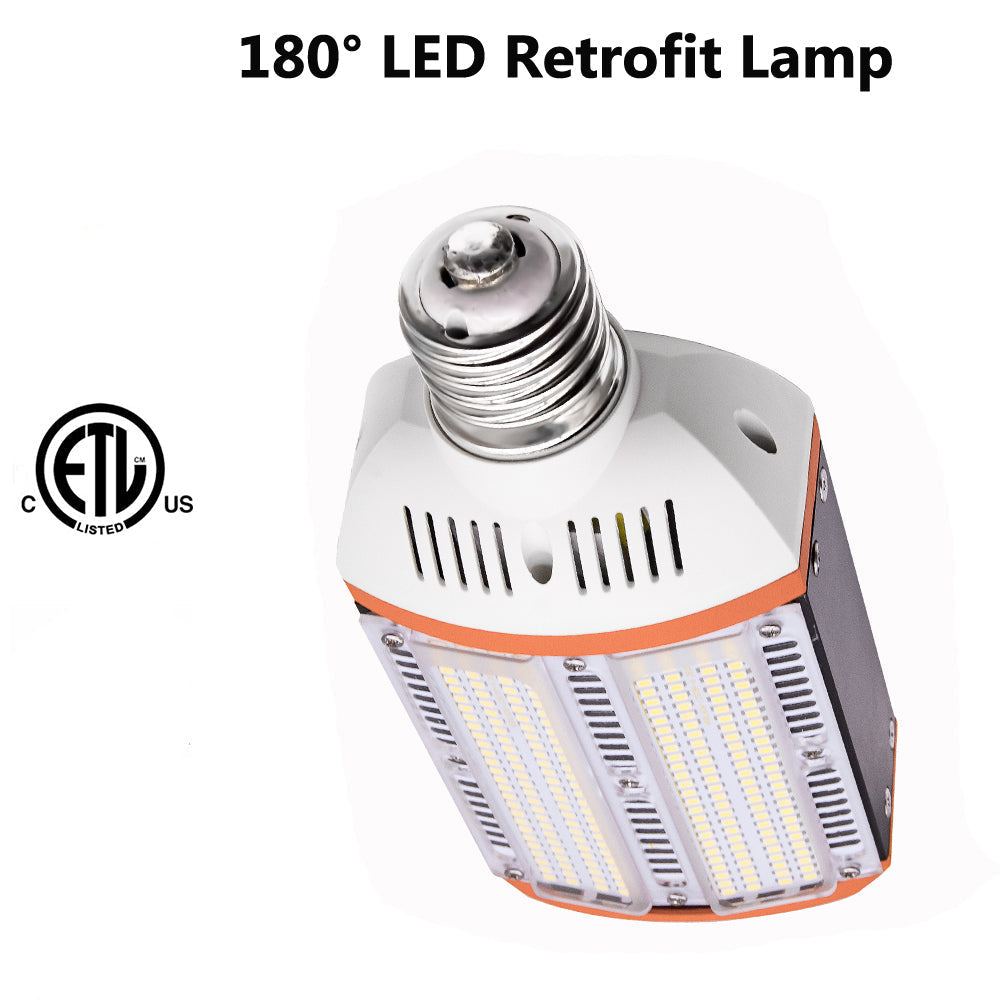

180° Directional Beam Angle

Provides directional light distribution for compatible area lighting and wall-mounted fixtures, helping direct illumination toward the intended area.

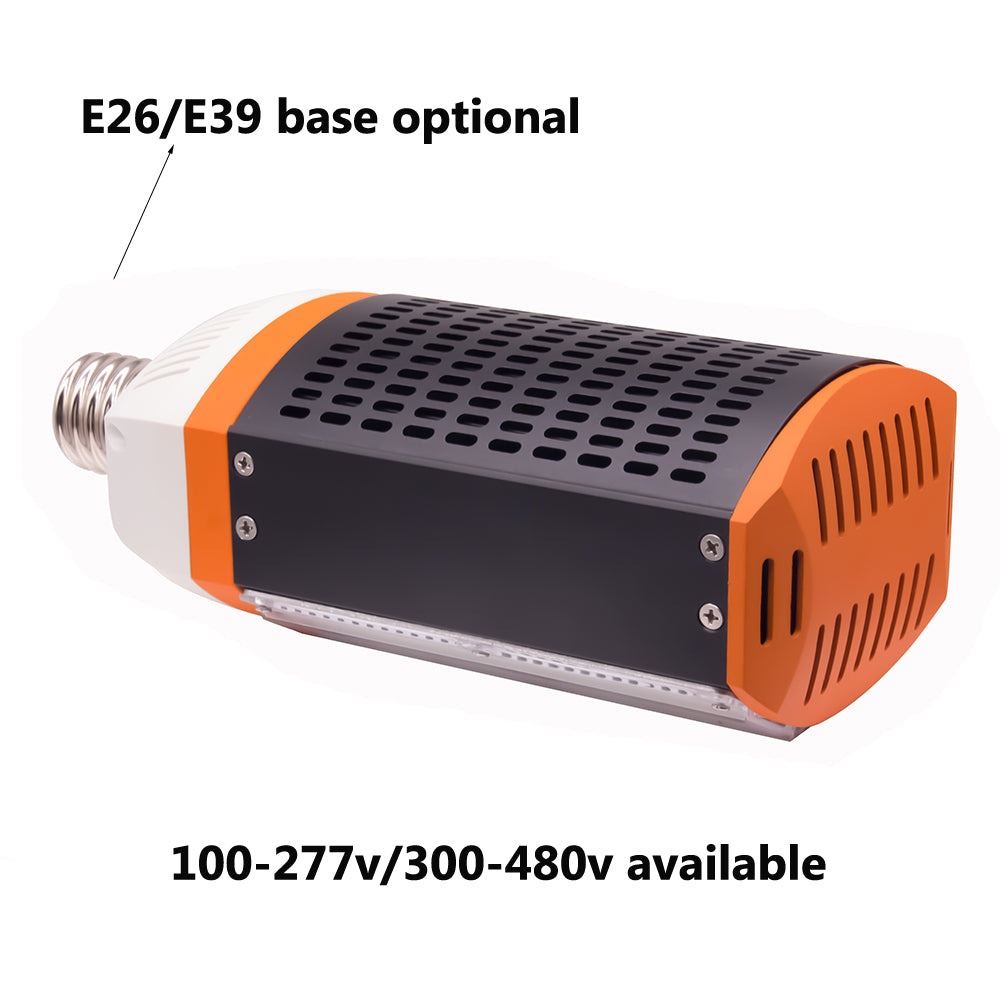

E26 & E39 Screw Base Options

Choose an E26 medium or E39 mogul screw base to match the existing fixture socket.

Bright 5000K Daylight White

Delivers fixed 5000K daylight illumination for parking areas, commercial buildings, garages, and compatible outdoor lighting applications.

Energy-Efficient HID Replacement

Designed to replace compatible metal halide, high-pressure sodium, CFL, and HID lamps, helping reduce energy consumption and maintenance costs.

Aluminum Heat Dissipation Design

Features aluminum construction with ventilation openings and an air-convection design to support thermal management and long-term performance.

100–277V Commercial Input

Compatible with 100–277V AC electrical systems. Other voltage configurations require separate verification.

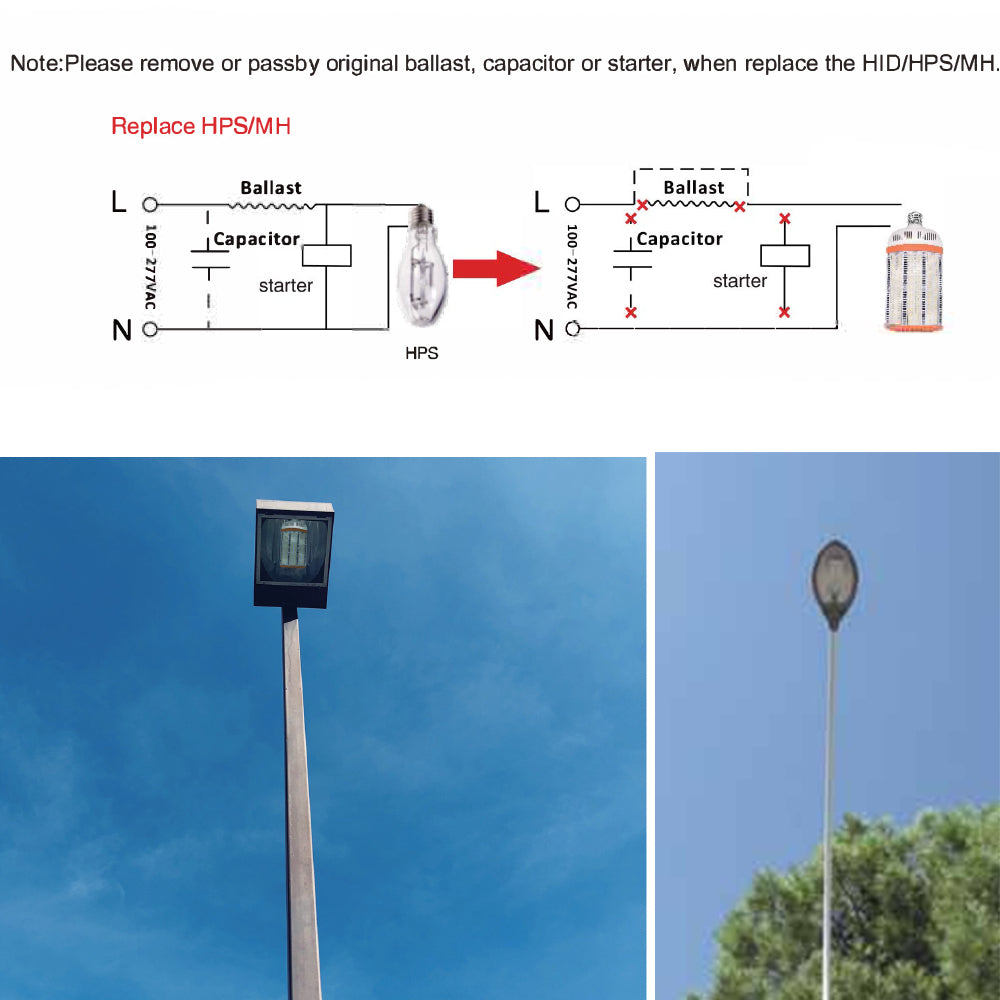

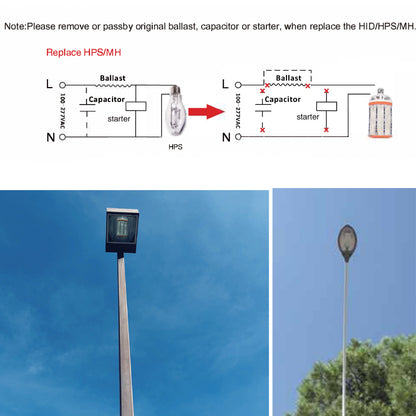

Ballast Bypass Installation

Designed for direct line-voltage installation after bypassing the existing ballast. Installation should be performed by a qualified electrician according to the manufacturer's instructions.

ETL/cETL & 3-Year Warranty

ETL/cETL approved according to the existing specifications, with a 50,000-hour rated lifespan and a 3-year manufacturer's warranty.

Product Specifications:

• Available Wattage: 30W 40W 60W

• Color Temperature Available: 5000K daylight

• Lens color available: clear cover
• Wattage Equivalent: 60W-100W CFL MH HPS HID(30W), 80W-150W CFL MH HPS HID(40W), 120W-200W CFL MH HPS HID(60W)

• Lumens: 4500LM(30W), 6000LM(40W), 9000LM(60W)

• Beam Angle: 180degree
• Voltage: 100 - 277V
• Working temperature: -40℉ – 113℉
• Power factor: >90%
• Material: Aluminum+PBT

• ETL, cETL approved
• Mogul Screw Base: E26 E39
• Lifespan: 50,000 hours
• 3 years of Manufacturer's Warranty

https://cdn.shopify.com/s/files/1/0692/4245/4334/files/Temporary-Work-Light-V4.9.pdf?v=1

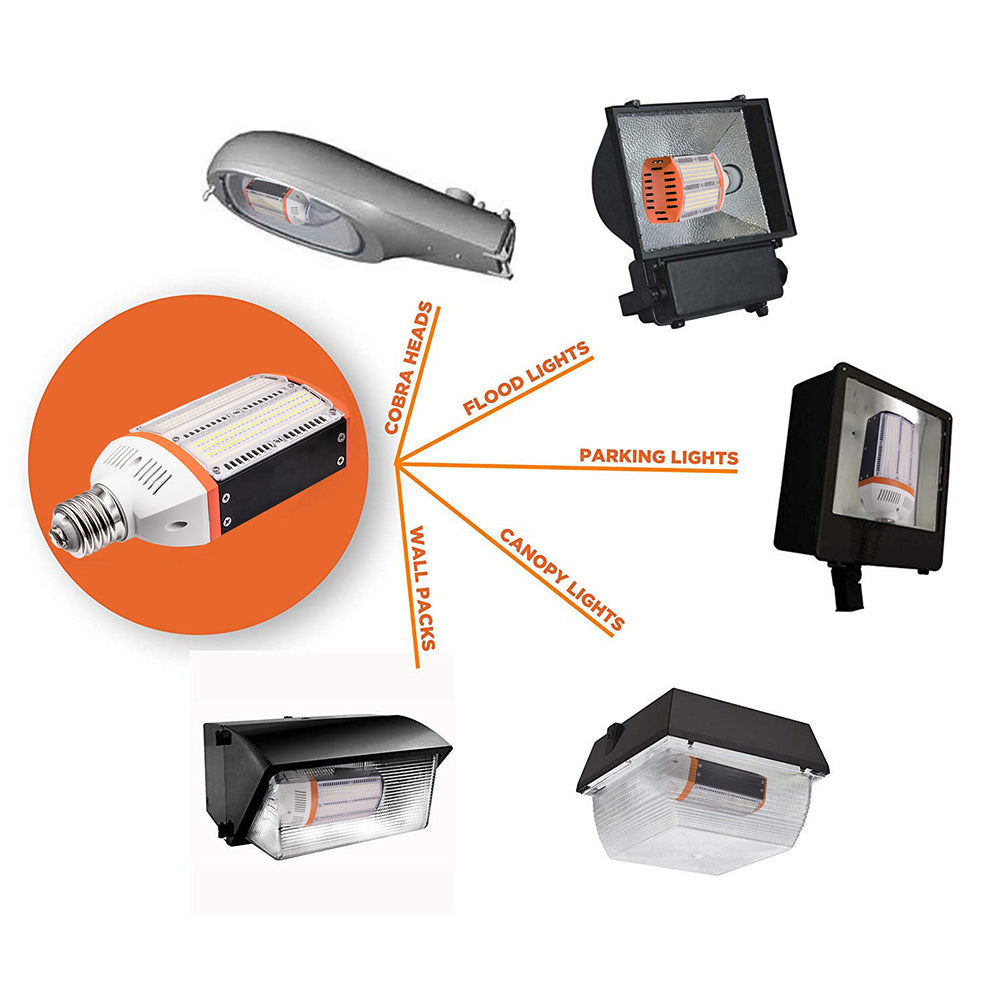

Applications:

Choierlight LED shoebox corn bulb retrofit lamps are suitable for compatible commercial and industrial HID lighting upgrades.

• Shoebox Area Light Retrofit: Upgrade existing compatible shoebox area light fixtures without replacing the entire housing.
• Parking Lot Lighting: Replace traditional HID lamps in compatible parking lot and commercial area lighting fixtures.
• Wall Pack Lighting: Retrofit compatible commercial wall pack fixtures with directional LED illumination.
• Building Perimeter Lighting: Upgrade suitable wall-mounted fixtures around commercial properties.
• Parking Garage Lighting: Improve energy efficiency in compatible parking garage fixtures.
• Commercial Outdoor Lighting: Replace existing HID lamps in suitable commercial outdoor fixture enclosures.

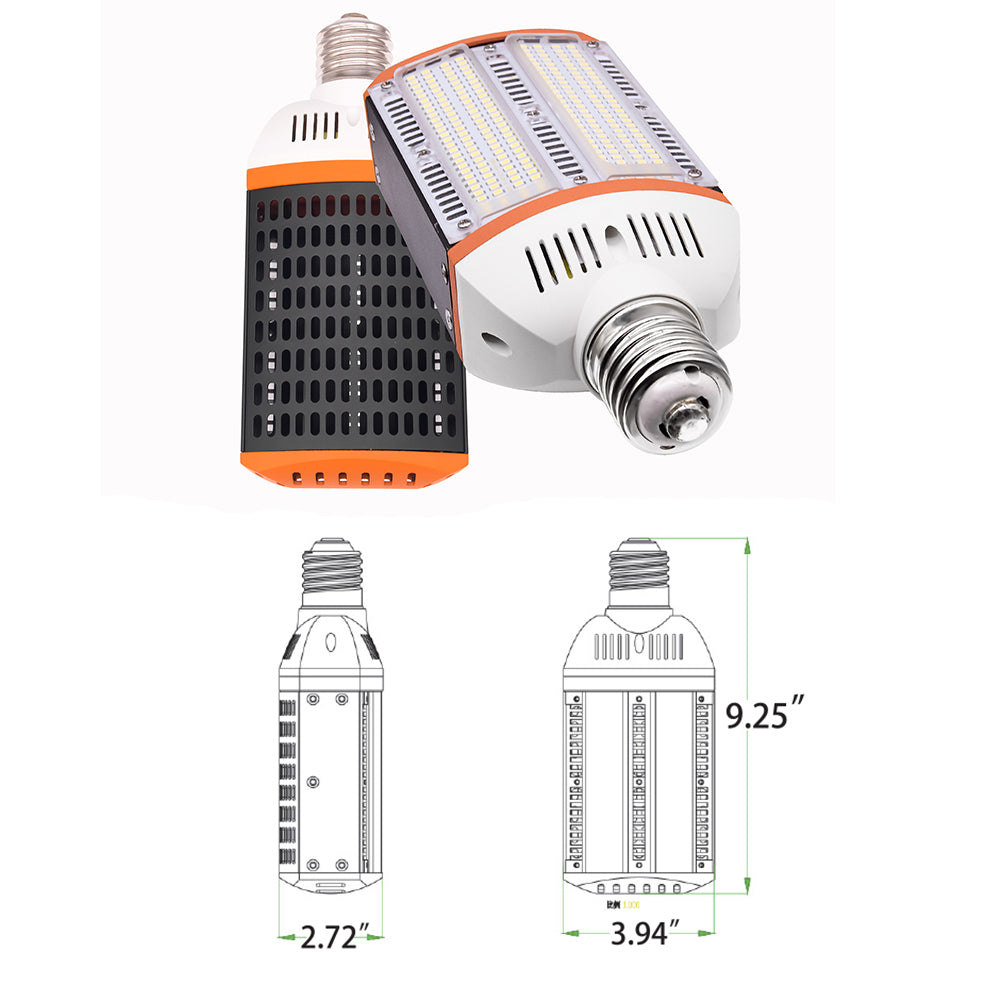

Important: Verify lamp dimensions, socket position, fixture enclosure, heat dissipation, and electrical compatibility before installation.

FAQ:

What is an LED shoebox corn bulb retrofit lamp?

An LED shoebox corn bulb retrofit lamp is designed to replace compatible traditional HID lamps inside existing shoebox area light fixtures. It allows the original fixture housing to remain in place when all compatibility requirements are met.

Can this LED retrofit bulb replace metal halide and HPS lamps?

Yes. It is designed for compatible metal halide, high-pressure sodium, CFL, and HID lighting retrofits. Verify the existing fixture, socket, electrical configuration, and required illumination before installation.

What wattages are available?

This product is available in three fixed-wattage options: 30W, 40W, and 60W.

What is the beam angle?

The LED retrofit lamp features a 180° beam angle, making it suitable for compatible directional lighting applications.

Does this LED corn bulb have an E26 or E39 base?

Both E26 medium and E39 mogul screw base options are available. Select the correct base to match your existing fixture socket.

Does the existing HID ballast need to be removed?

Yes. The current product instructions specify direct line-voltage installation with the existing ballast bypassed. Installation should be performed by a qualified electrician.

Can this bulb be used in wall pack fixtures?

Yes, in compatible wall pack fixtures with the appropriate socket, internal clearance, electrical configuration, and thermal conditions.

Is the color temperature adjustable?

No. All currently listed models provide fixed 5000K daylight white illumination.

Does this product support 480V?

The currently selectable variants are rated for 100–277V AC. Do not use them on a 480V circuit. Contact Choierlight to confirm whether a separately rated high-voltage version is available.

Can this LED retrofit lamp be used outdoors?

Outdoor use depends on the existing fixture's enclosure rating, moisture protection, and thermal compatibility. Confirm these requirements before installation.

What is the expected lifespan?

The product has a rated lifespan of 50,000 hours.

What warranty is included?

Choierlight provides a 3-year manufacturer's warranty.
