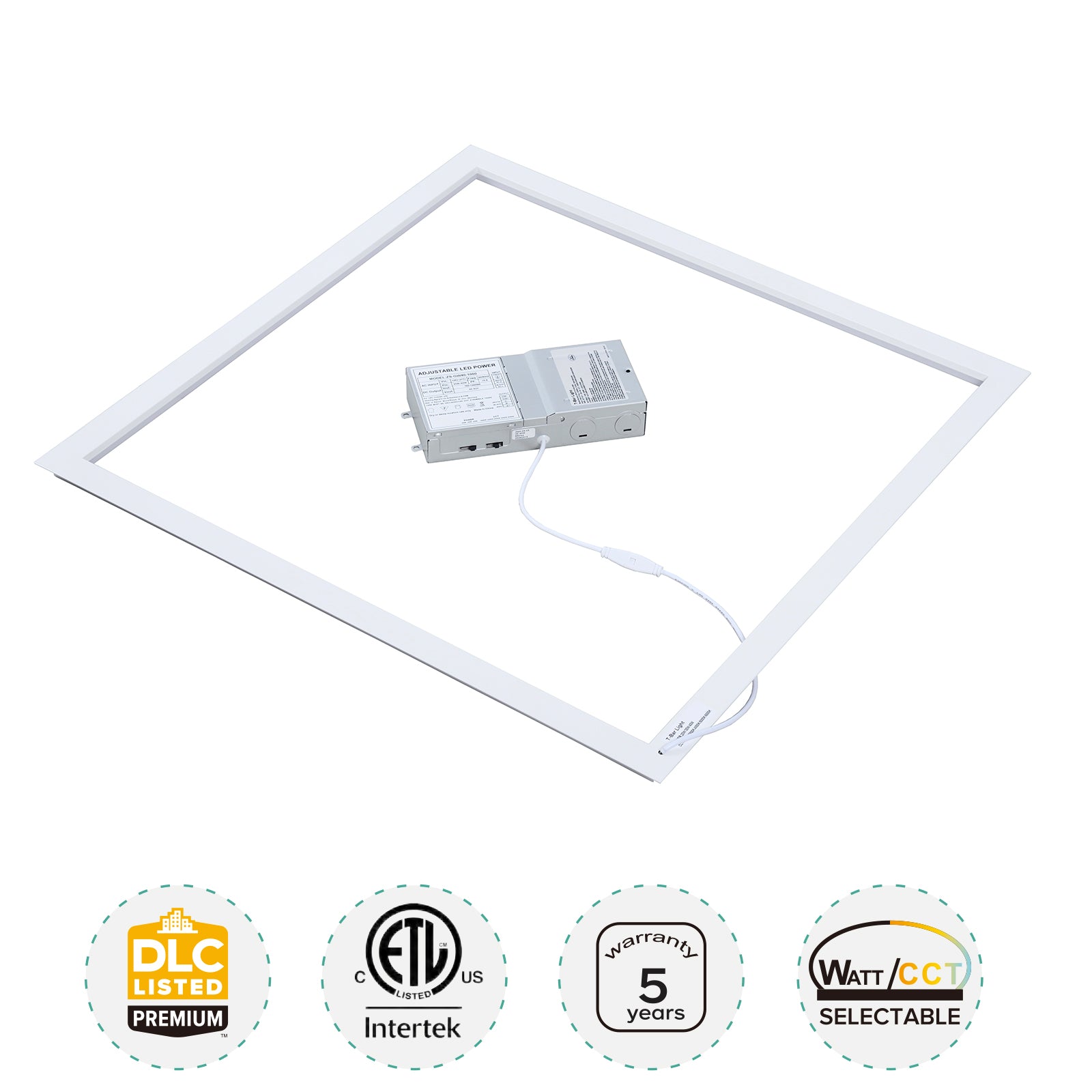

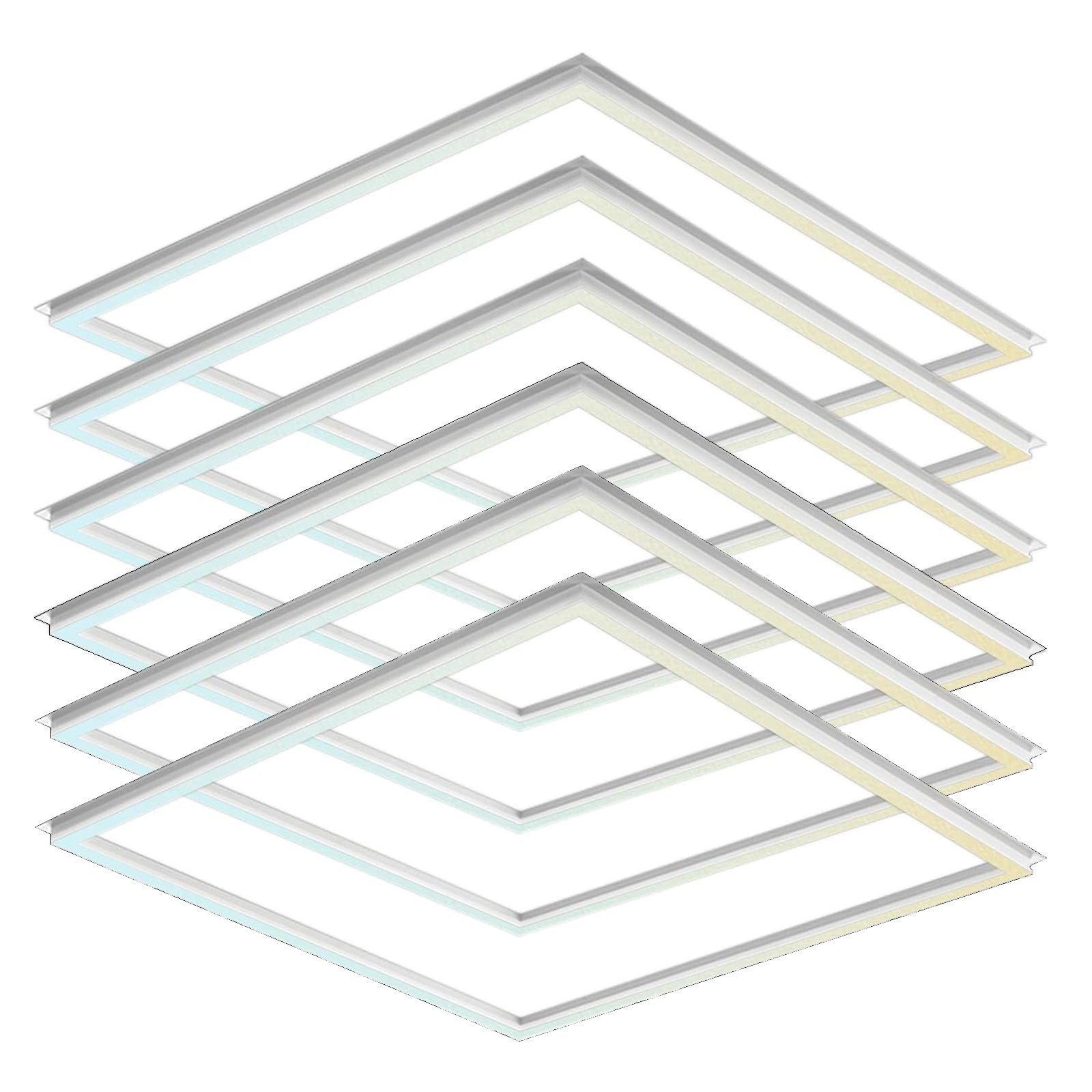

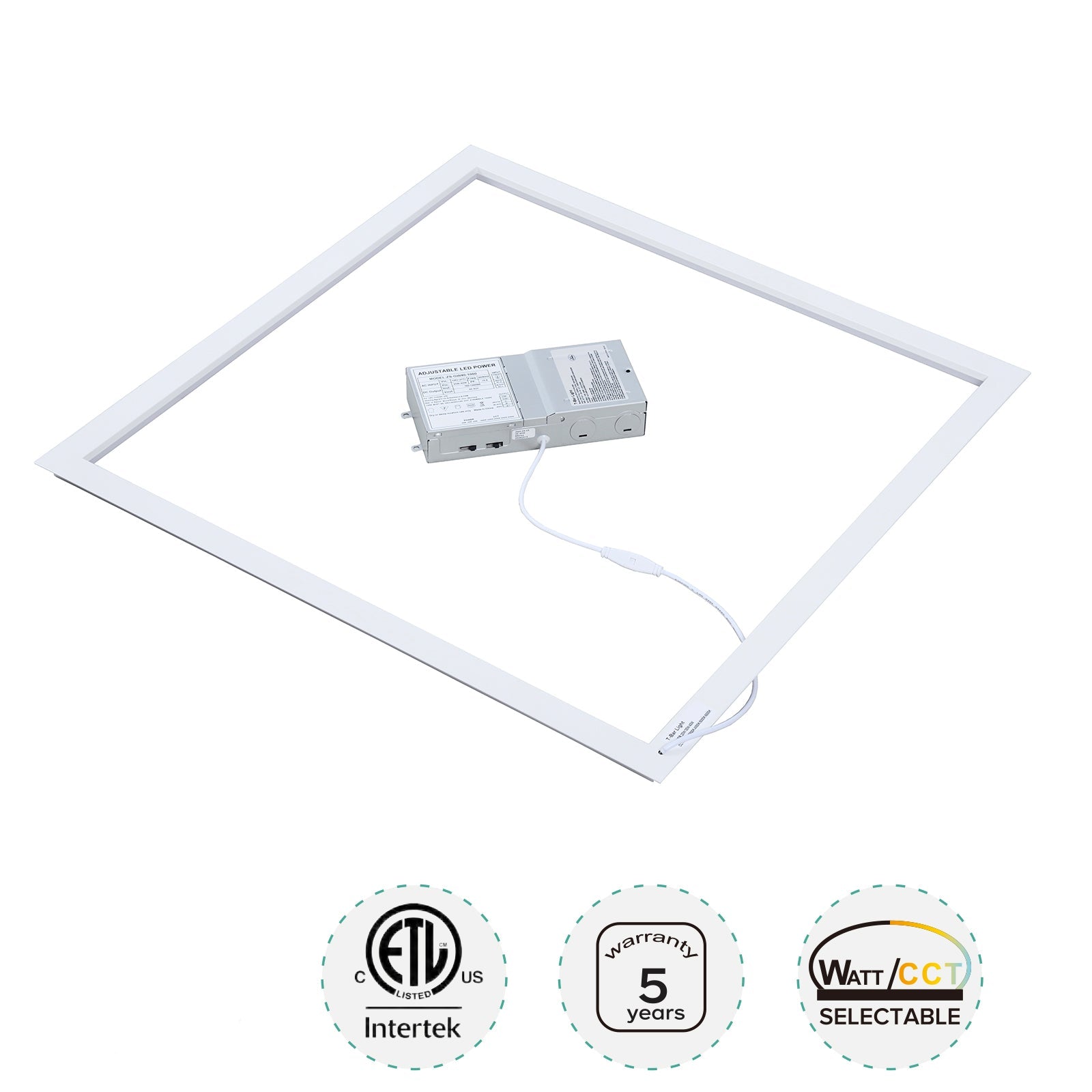

2x2 LED Frame Panel Light, Edge-Lit Flat Panel, 5CCT 3000K–6500K, Wattage Selectable 20W/30W/40W, 0-10V Dimmable, 100-277V Commercial Drop Ceiling Light for Office, School, Hospital, 6 Pack

Specifications:

• Available Wattage: 20W-30W-40W watt tunable
• Color Temperature Available: 3000K/3500K/4000K/5000K/6500K CCT rotatable

• Lens color available: frosted/milky cover
• Wattage Equivalent: 40W-160W 2×2 fluroescent troffer light fixture

• Lumen efficiency: 130LM/W, Up to 5200LM

• Beam Angle: 120degree

• Voltage: 120V - 277V

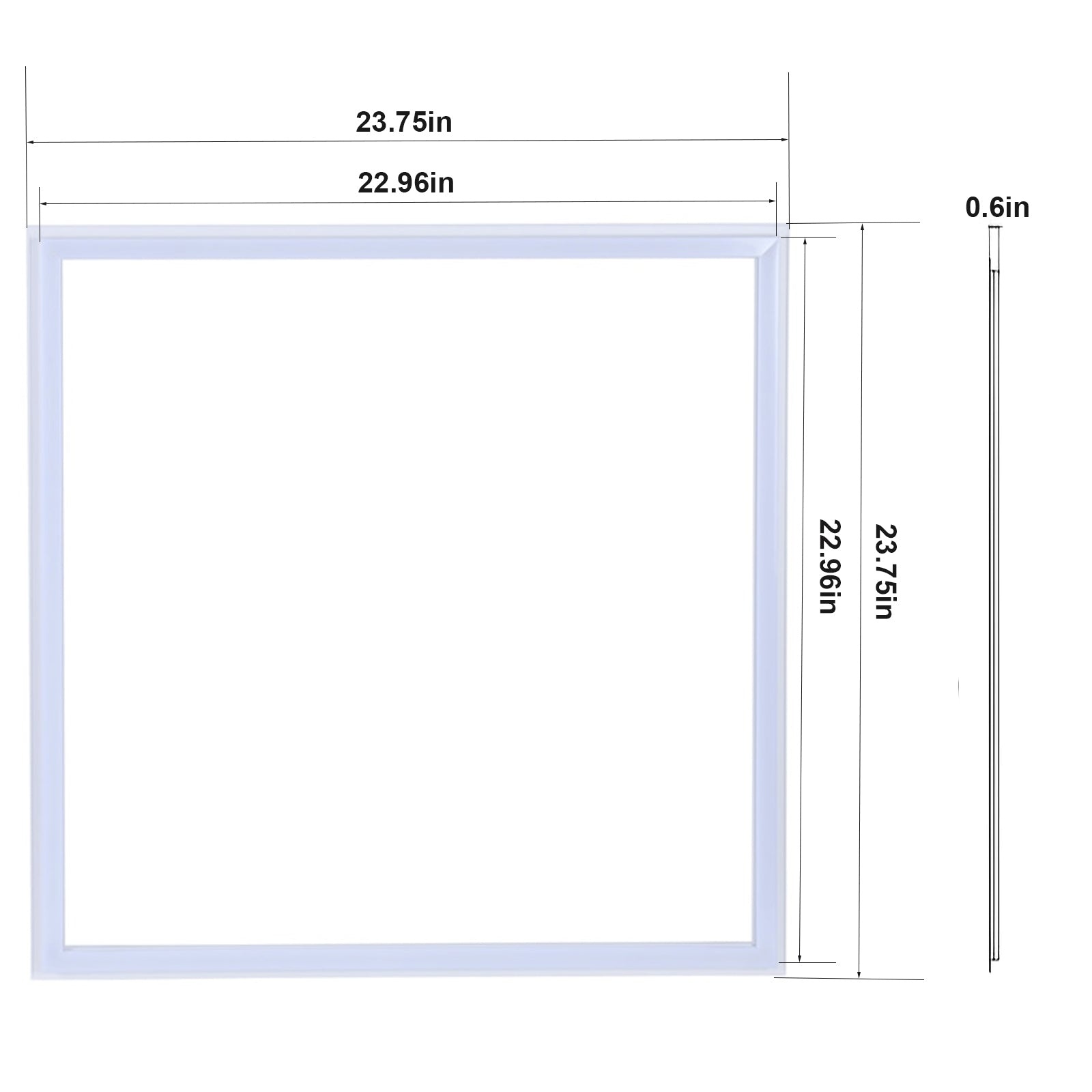

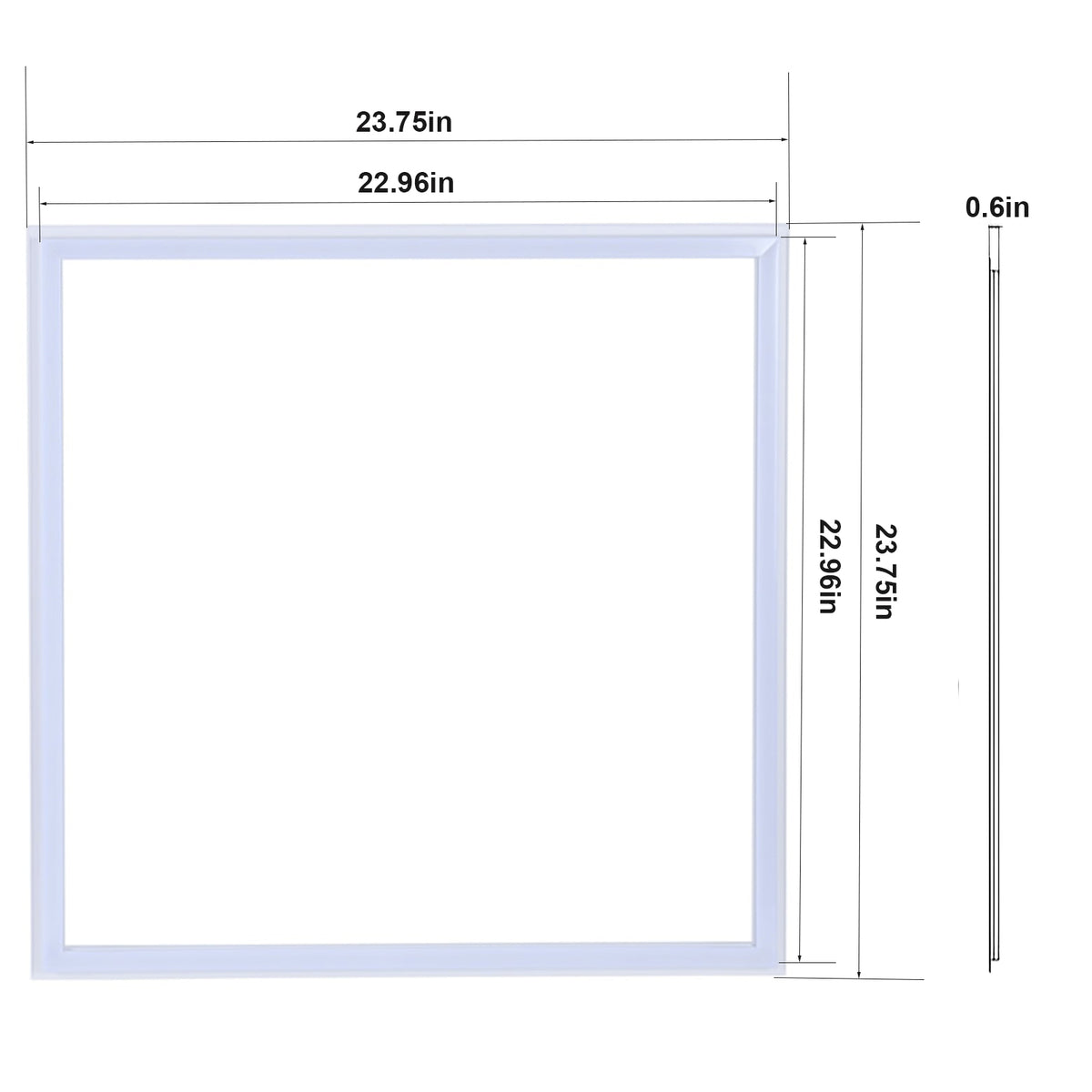

• Panel size: 23.75*23.75“
• Working temperature: -40℉ – 113℉
• Power factor: >92%
• Dimmable: 0-10v dimming
• Material: Aluminum+PMMA

• ETL, cETL, DLC approved
• Lifespan: 50,000 hours
• 5 years of Manufacturer's Warranty
• Accessories(sold separately): emergency led driver, surface mounted kits, please contact us

Key Features：

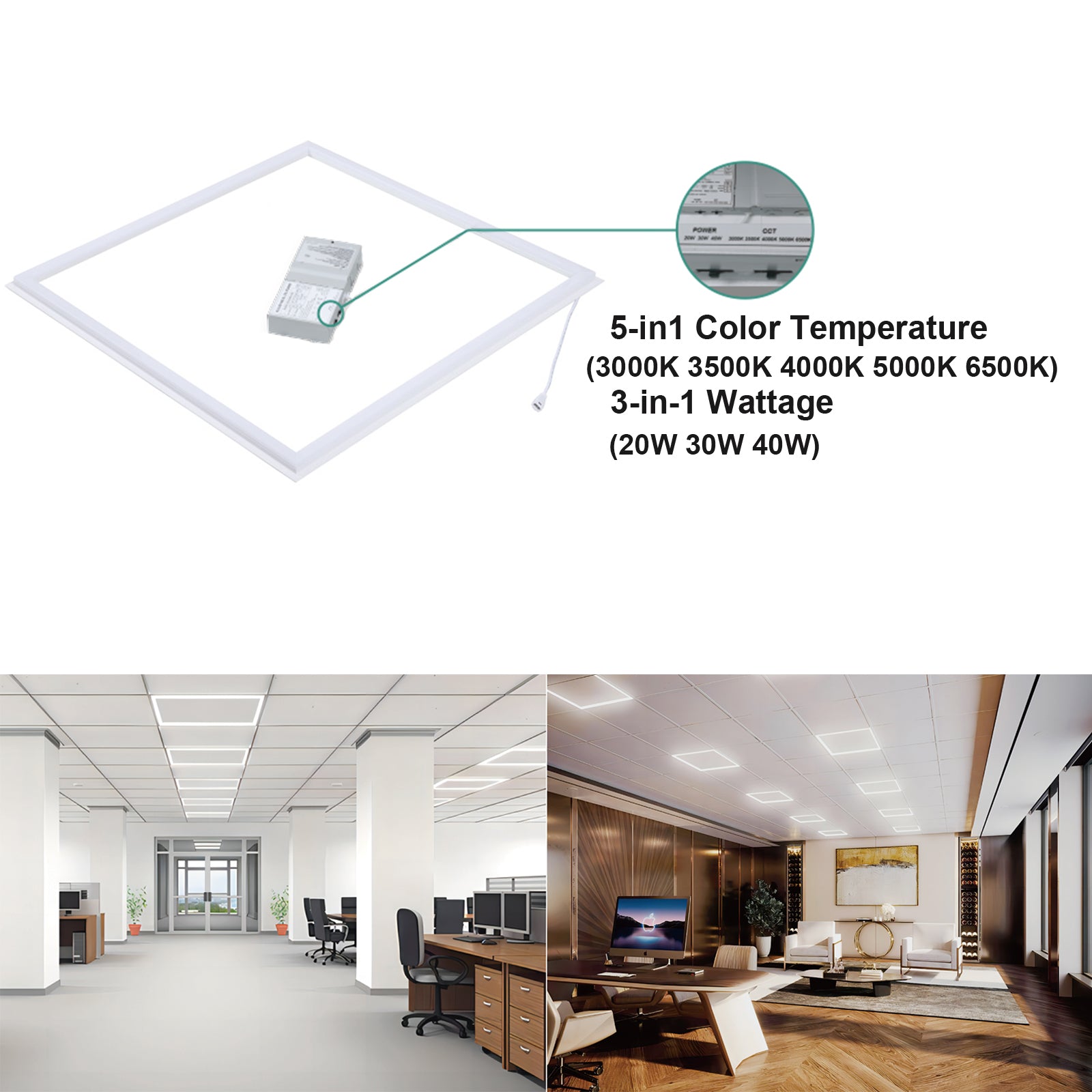

• ✅ 5 CCT Selectable (3000K/3500K/4000K/5000K/6500K)
• ✅ Wattage Adjustable (20W / 30W / 40W)
• ✅ 0-10V Smooth Dimming

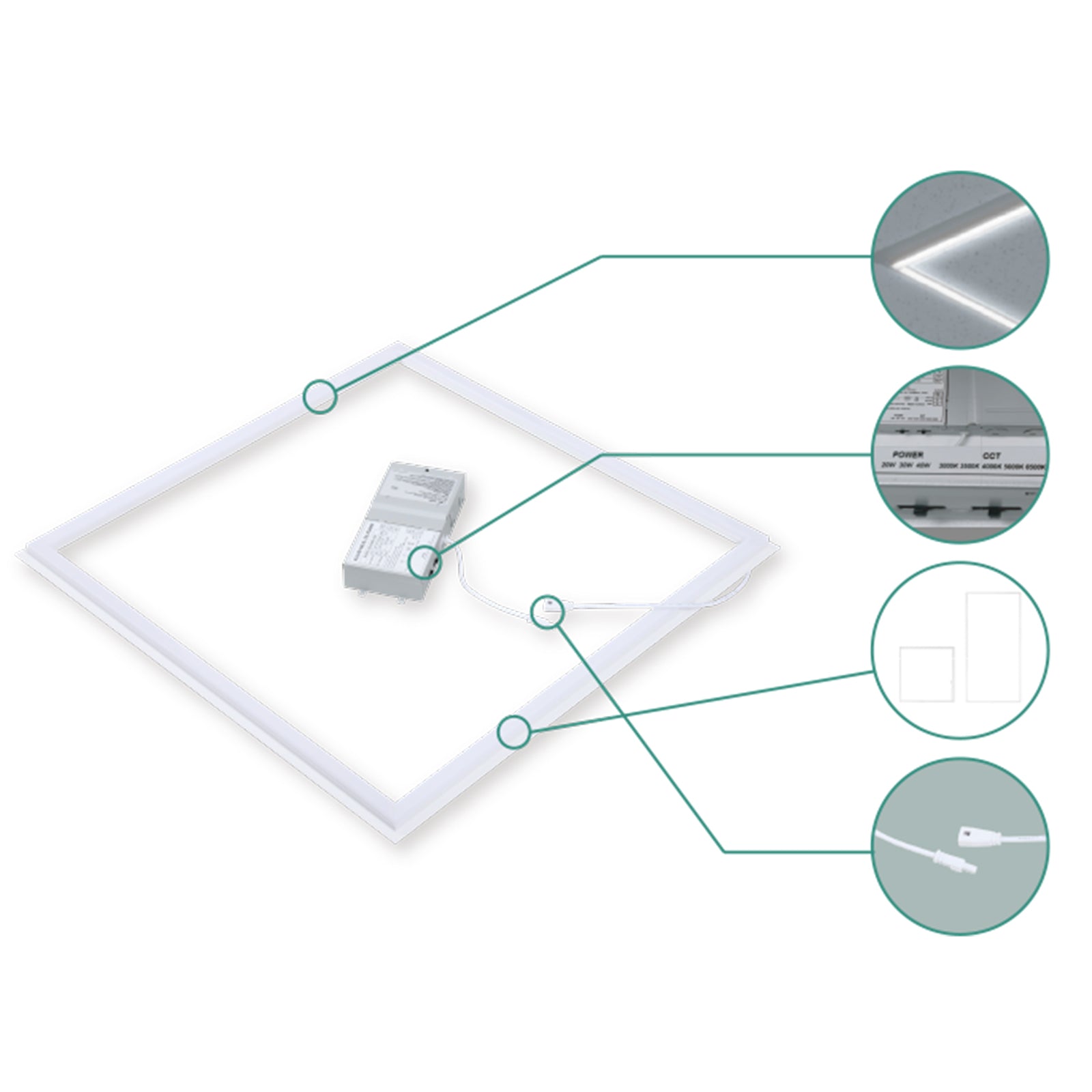

• ✅ Ultra-Thin Edge-Lit Design
• ✅ Flicker-Free & Uniform Light
• ✅ 100–277V Wide Voltage
• ✅ ETL & DLC Listed (Energy Efficient), 5 Years Warranty
• ✅ Ideal for Office, Retail, School, Hospital

Product Description:

Upgrade your commercial lighting with this 2x2 LED edge-lit frame panel light, engineered for maximum efficiency, flexibility, and modern aesthetics. Designed for drop ceilings and grid installations, this ultra-slim LED panel delivers uniform, glare-free illumination—perfect for offices, retail stores, schools, and healthcare environments.

Featuring 5 selectable color temperatures (3000K–6500K) and adjustable wattage (20W/30W/40W), this LED panel allows you to customize brightness and ambiance for any space. With 0-10V dimming capability, you get smooth light control without flickering or buzzing.

Built with a premium aluminum frame and high-transmittance diffuser, this edge-lit panel ensures even light distribution without dark spots, while reducing energy consumption by up to 70% compared to fluorescent troffers.

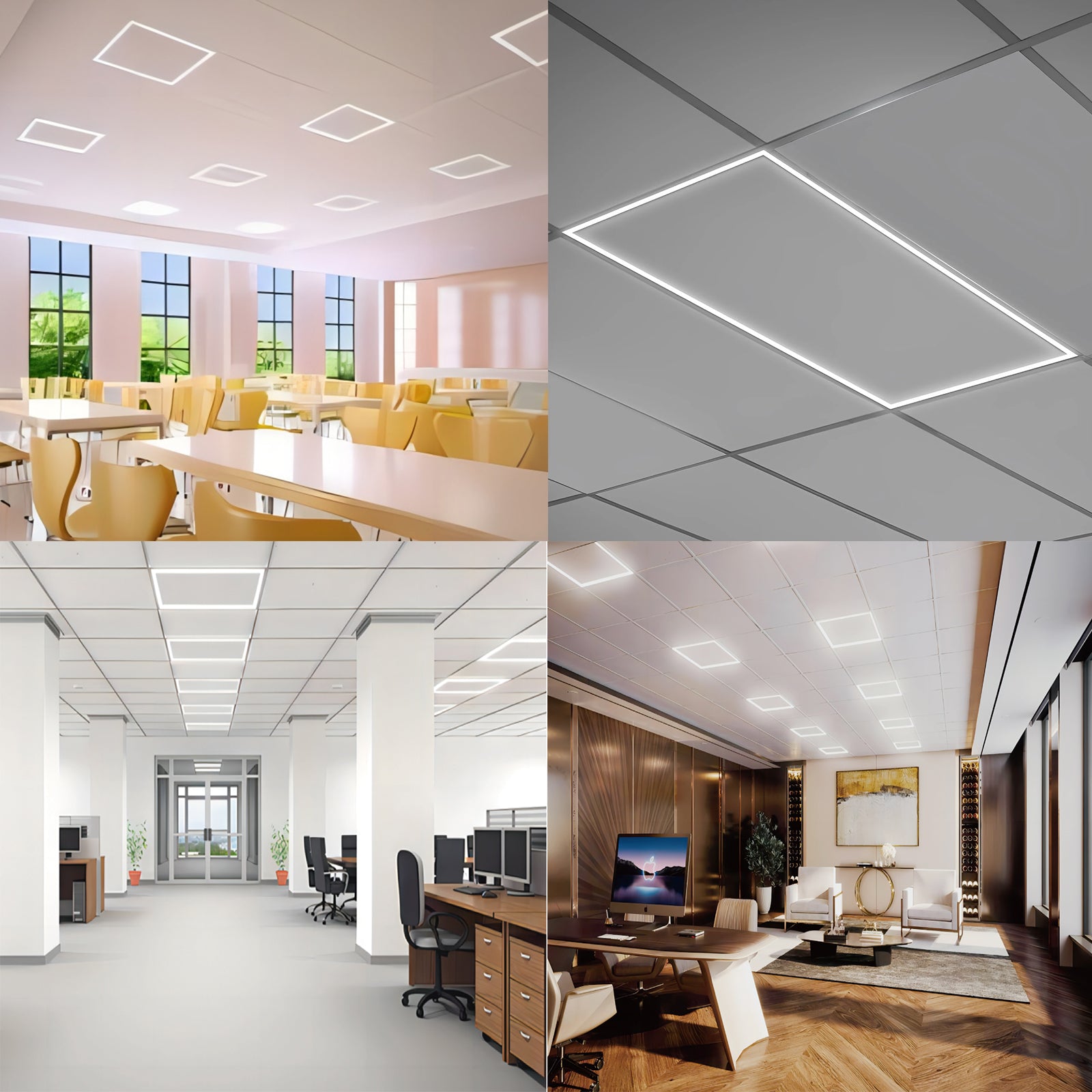

Applications:

Perfect for:

• Office lighting
• Commercial buildings
• Schools & classrooms
• Hospitals & clinics
• Retail stores & supermarkets
• Conference rooms
• Basements & workshops

Why Choose This LED Panel:

• ✔ Replaces traditional fluorescent troffers
• ✔ Lower maintenance cost
• ✔ Instant-on, no warm-up time
• ✔ Environmentally friendly (no mercury)
• ✔ Long lifespan reduces replacement frequency

Package Includes:

• 1 × 2x2 LED Panel Light
• 1 × Driver
• Mounting accessories

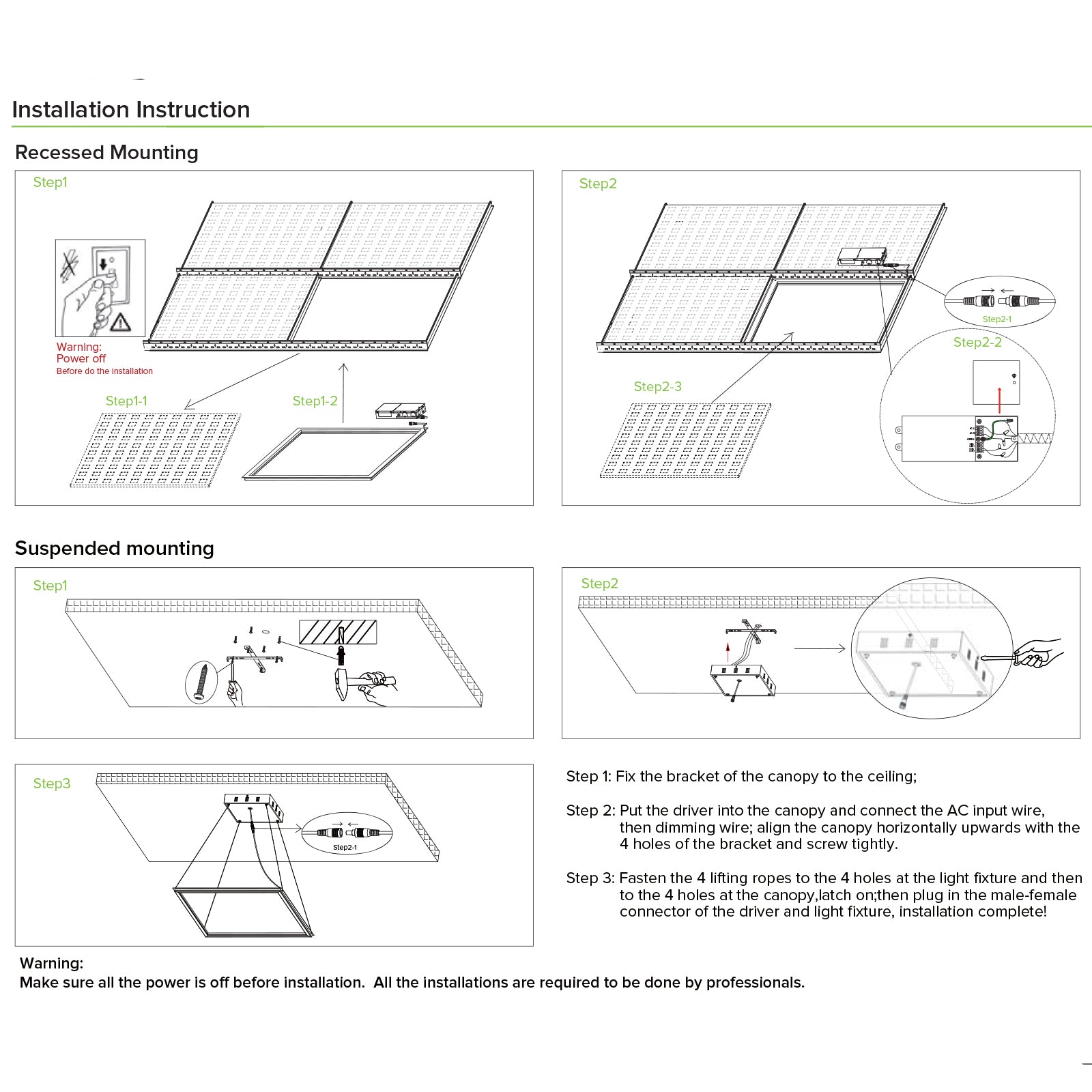

• Installation guide

FAQ:

Q: Is this panel compatible with dimmers?
A: Yes, it supports standard 0-10V dimming systems.

Q: Can I install it on drywall ceiling?
A: Yes, with a surface mount kit or suspension kit.

Q: Does it flicker?
A: No, it is designed with flicker-free driver technology.

2x2 LED panel light, edge lit LED panel, LED flat panel light, commercial ceiling light, drop ceiling light, LED troffer replacement, dimmable LED panel, 2x2 light fixture, office lighting LED, DLC LED panel, ETL LED light, 0-10V dimmable panel, adjustable CCT LED panel
