Triple Spoke Bracket for 2-3/8" Tenon with 120° Horizontal Arms
Triple Spoke Bracket for 2-3/8" Tenon with 120° Horizontal Arms
In stock
Couldn't load pickup availability
Shipping: US free shipping
Shipping by: FedEx UPS
Delivery time: 2-4 business days after payment
Bigger Quantity Cheaper Price
| Minimum Same Variant Quantity | Discount |
| 20-49 | 3% |
| 50-99 | 5% |
| 100+ | 8% |
Product Description:

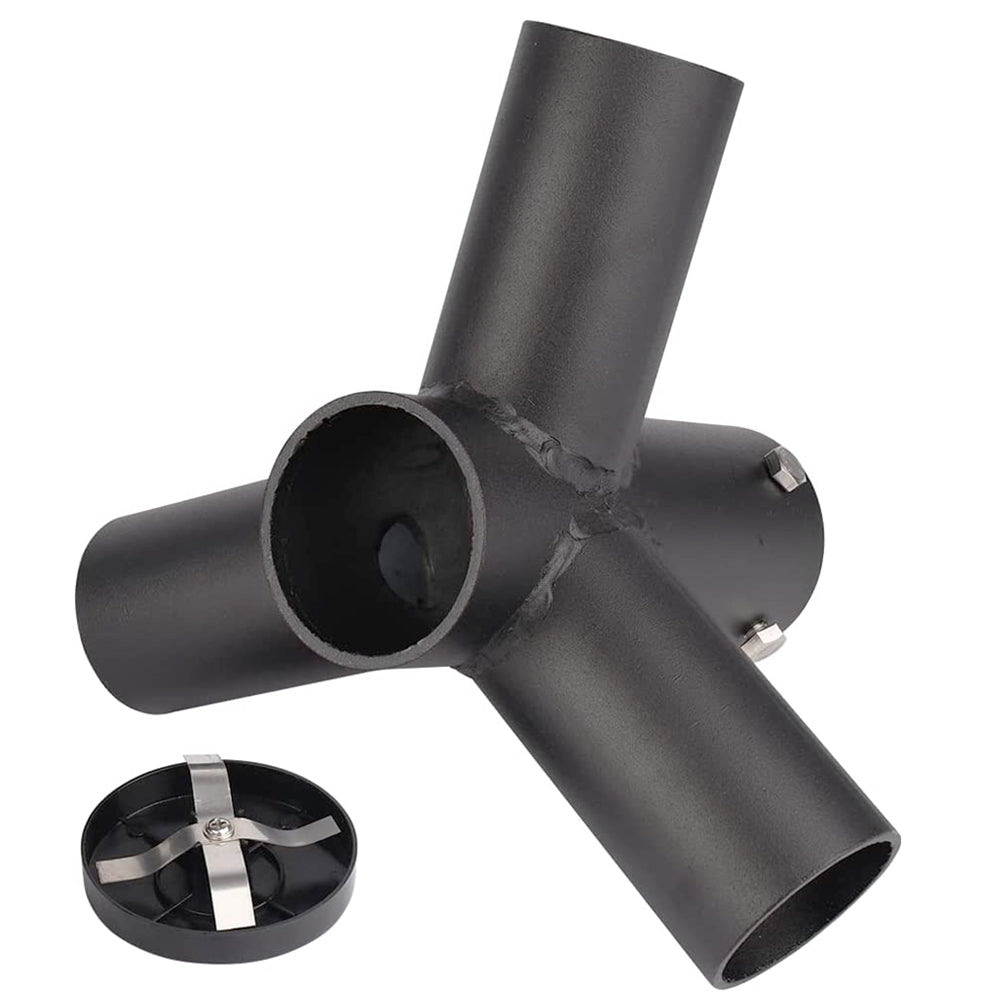

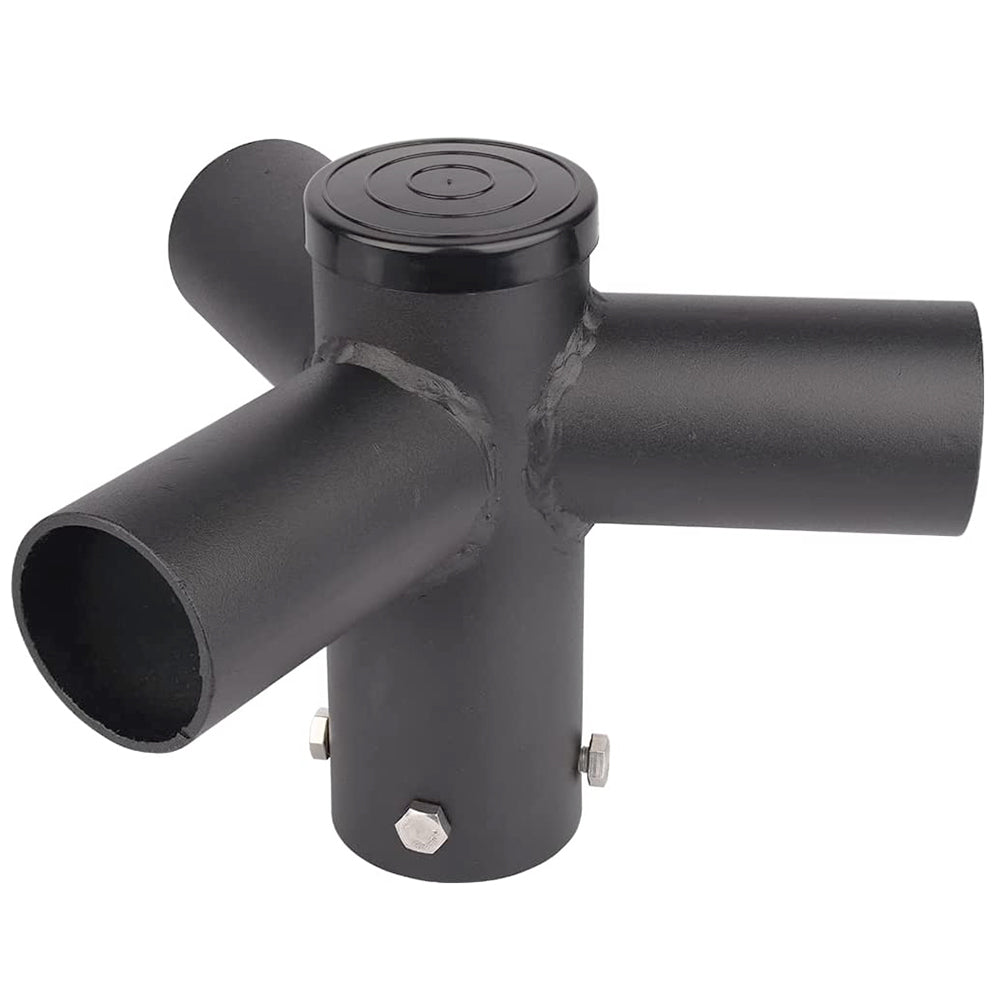

This heavy-duty triple spoke bracket mounts onto an existing 2-3/8 inch tenon and provides three horizontal 2-3/8" tenons positioned 120 degrees apart for mounting three compatible LED parking lot lights, shoebox area lights, street lights, or other commercial outdoor fixtures equipped with slip fitters.
Designed with a Y-shaped 120-degree configuration, this triple tenon adapter converts one existing vertical 2-3/8" tenon into three horizontal fixture mounting points. The three-way design allows three compatible LED fixtures to provide broad multi-directional lighting coverage from a single tenon location.
Each horizontal arm provides a standard 2-3/8" OD tenon for compatible commercial LED fixtures using slip fitter mounts. This makes the bracket ideal for large parking lots, commercial properties, roadway areas, campuses, car dealerships, industrial facilities, and other applications requiring lighting coverage in three directions.
Constructed from heavy-duty galvanized steel with a dark bronze finish, this triple spoke mounting bracket provides strength, stability, and durability for demanding commercial outdoor lighting applications.
Key Features:
Mounts on an Existing 2-3/8" Tenon
Designed to install onto a compatible existing 2-3/8 inch tenon, creating three horizontal mounting positions for commercial LED fixtures.
120° Triple Spoke Design
Three horizontal arms are evenly positioned 120 degrees apart, creating a Y-shaped configuration for multi-directional outdoor lighting.
Three 2-3/8" Horizontal Tenons
Provides three built-in 2-3/8" OD tenons for mounting three compatible LED parking lot lights, shoebox area lights, street lights, or other fixtures equipped with slip fitters.
Mount Three LED Fixtures from One Tenon
Converts one existing tenon location into three fixture mounting positions, making it ideal for projects requiring broad lighting coverage from a single mounting point.
Heavy-Duty Galvanized Steel Construction
Constructed from durable galvanized steel for strength, stability, and long-term performance in demanding commercial outdoor environments.
Dark Bronze Finish
Coordinates with common commercial light poles, LED shoebox fixtures, parking lot lights, and outdoor area lighting systems.
Built-In Wiring Access
Provides wiring access for installation of three compatible commercial LED fixtures.

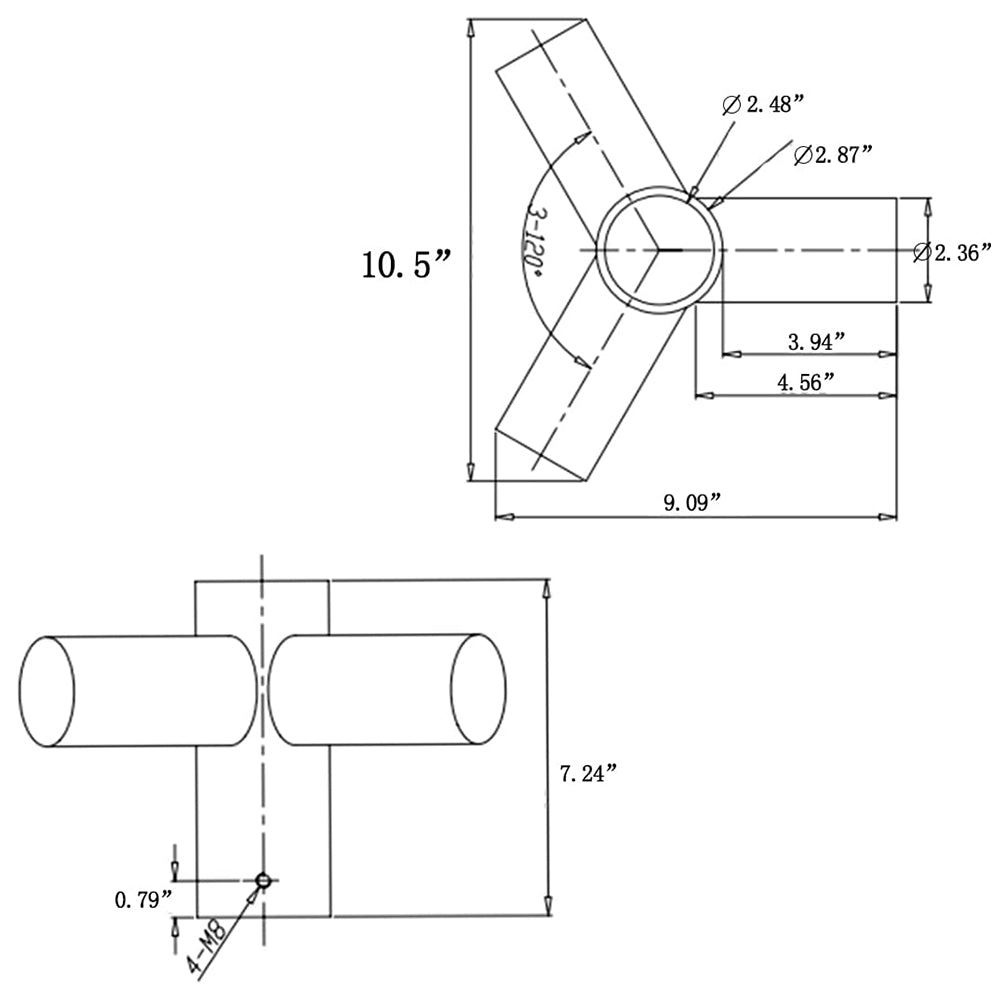

Product Specifications:
| Specification | Details |
|---|---|
| Product Type | Triple Spoke Tenon Mount Bracket |
| Input / Mounting Connection | Existing 2-3/8" Tenon |
| Configuration | Triple Spoke / Y-Shape |
| Number of Fixture Tenons | 3 |
| Fixture Tenon Size | 2-3/8 Inch OD |
| Fixture Tenon Orientation | Horizontal |
| Angle Between Arms | 120 Degrees |
| Fixture Mount | Slip Fitter |
| Fixture Capacity | 3 Compatible LED Fixtures |
| Wiring Access | Yes |
| Material | Heavy-Duty Galvanized Steel |
| Finish | Dark Bronze |
| Compatible Fixtures | LED Parking Lot, Shoebox, Area & Street Lights |
| Application | Commercial Outdoor Lighting |
| Stock | U.S. Warehouse |
| Shipping | Free U.S. Shipping |
| Carrier | FedEx / UPS |
| Typical Delivery | 2–4 Business Days |
Applications:
This 120 degree triple spoke tenon bracket is designed for commercial and industrial outdoor lighting installations requiring three compatible LED fixtures mounted in different directions from an existing 2-3/8" tenon.
Common applications include:
- Large parking lot lighting
- LED shoebox area light installations
- Commercial area lighting
- Shopping center parking lots
- Car dealership lighting
- Street and roadway areas
- School and university campuses
- Warehouse exterior lighting
- Industrial facilities
- Distribution centers
- Security and perimeter lighting
- LED parking lot retrofit projects
FAQ:
What size tenon does this triple spoke bracket mount on?
This bracket is designed to mount onto a compatible existing 2-3/8 inch tenon.
How many LED lights can this bracket support?
The triple spoke bracket provides three horizontal tenons for mounting three compatible slip fitter LED fixtures.
What size are the three horizontal tenons?
Each horizontal arm provides a standard 2-3/8 inch OD tenon for a compatible slip fitter fixture.
What is the angle between the three arms?
The three horizontal arms are positioned 120 degrees apart, creating a Y-shaped three-way mounting configuration.
Can I use this bracket with LED shoebox lights?
Yes. It is designed for compatible LED shoebox lights, parking lot lights, area lights, street lights, and other commercial fixtures using 2-3/8" slip fitters.
Why use a 120-degree triple spoke bracket?
The three-way configuration allows three compatible LED fixtures to illuminate different directions from one existing tenon, making it useful for large open areas requiring broad lighting coverage.
What material is the bracket made from?
It is constructed from heavy-duty galvanized steel with a dark bronze finish.
Does it provide wiring access?
Yes. The current product design provides wiring access for compatible LED fixtures.
Are the LED lights included?
No. This listing is for the triple spoke mounting bracket. Compatible LED fixtures are sold separately.
Do you offer bulk pricing?
Yes. The current page offers 3% off for 20–49 pieces, 5% for 50–99 pieces, and 8% for 100+ pieces.
