0-10V LED Dimmer Switch, Low Voltage Dimmer Switch for Dimmable LED Lights, Single-Pole or 3-Way, Wallplate Included

Shipping:  US free shipping
Shipping by:  FedEx UPS
Delivery time:  2-4 business days after payment

Bigger Quantity Cheaper Price

0-10V Dimmer Switch Spec:

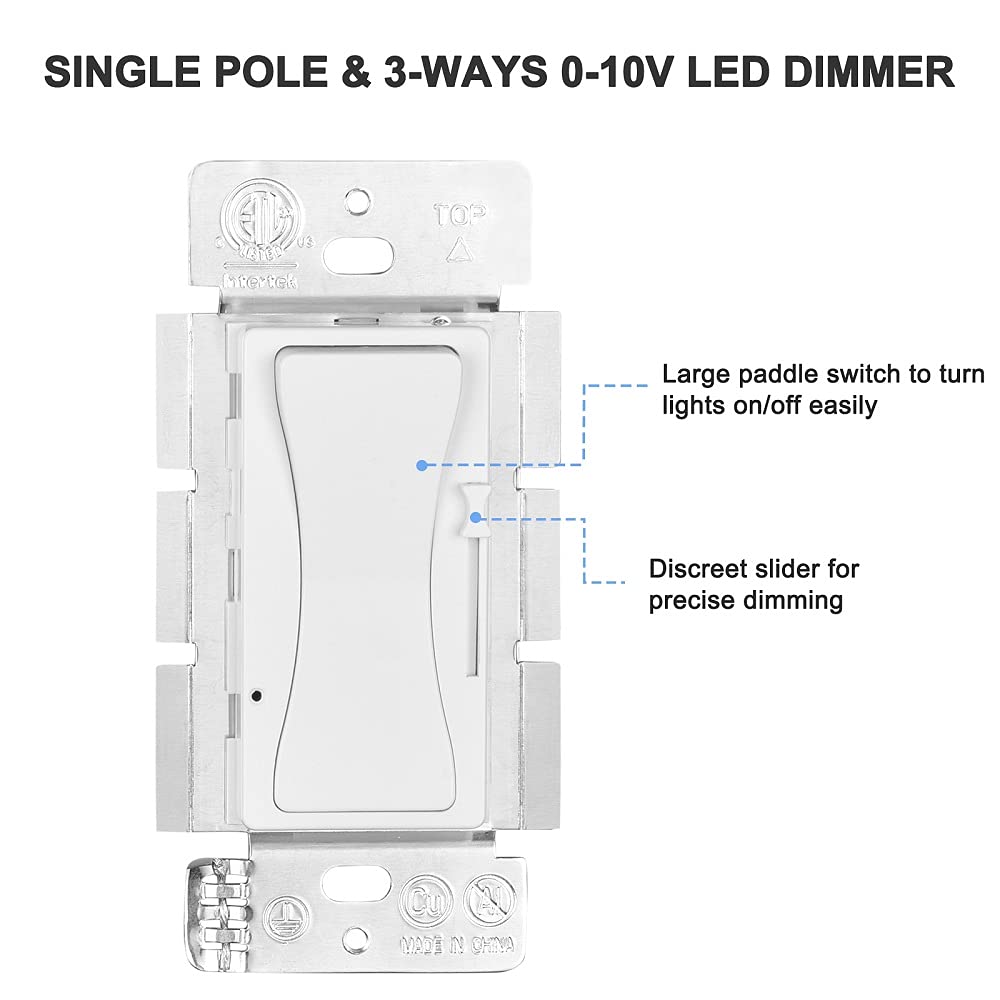

• Easily turn the lights on and off with a paddle switch, and use the fluent slide control to adjust the lights to the perfect level.
• It can be used for single-pole and three-way applications.
• 150W dimmable LED/CFL bulbs or 600W INC/HAL.
• Wide range of compatibility with sensitivity dial (At the bottom of back side of dimmer switch).
• Support LED/CFL and Incandescent lamps with 0-10V driver.
• No neutral required.
• Input: AC 120V~277V 50~60Hz.
• Meet UL standard, high quality.
• Includes instructions, wall plate(white), mounting screws and wire caps.

https://cdn.shopify.com/s/files/1/0692/4245/4334/files/Temporary-Work-Light-V4.9.pdf?v=1

0-10V LED/CFL Dimmer Switch Installation Tips:

1. Install in accordance with all national and local Electrical Codes.

2. Use copper power wires that are rated for least 75 Degrees Celsius/167 degrees Fahrenheit.

3. CUT OFF ALL THE POWER CIRCUIT before starting installation.

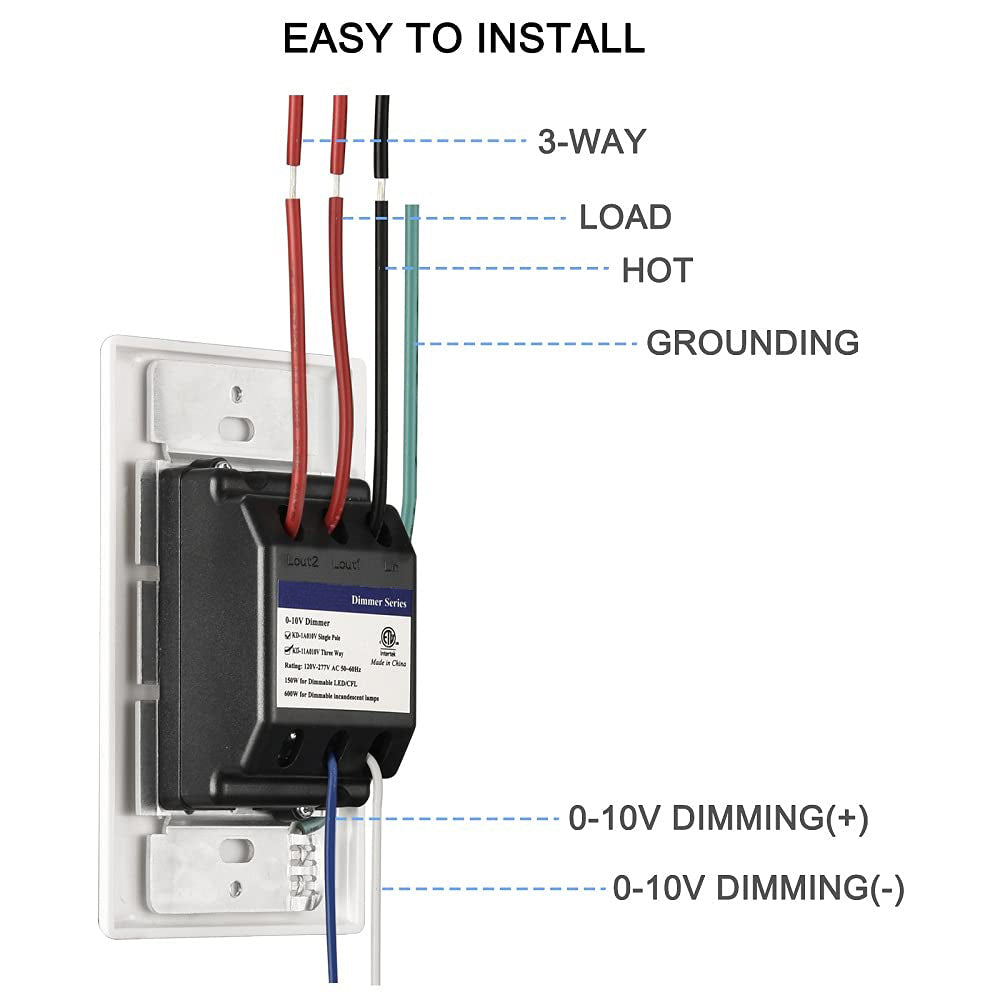

4. Use the wiring diagram (see the user manual) to connect the dimmer switch between a 0-10V power supply and 0-10V LED light fixture.

5. Always observe proper polarity when connecting power and load.

6. Shorting output wires may cause damage to dimmer.

7. Carefully replace wiring back into wall box, mount the LED dimmer with supplied screws.

8. For indoor use only - the 0-10V dimmer switch is not waterproof or weatherproof.
