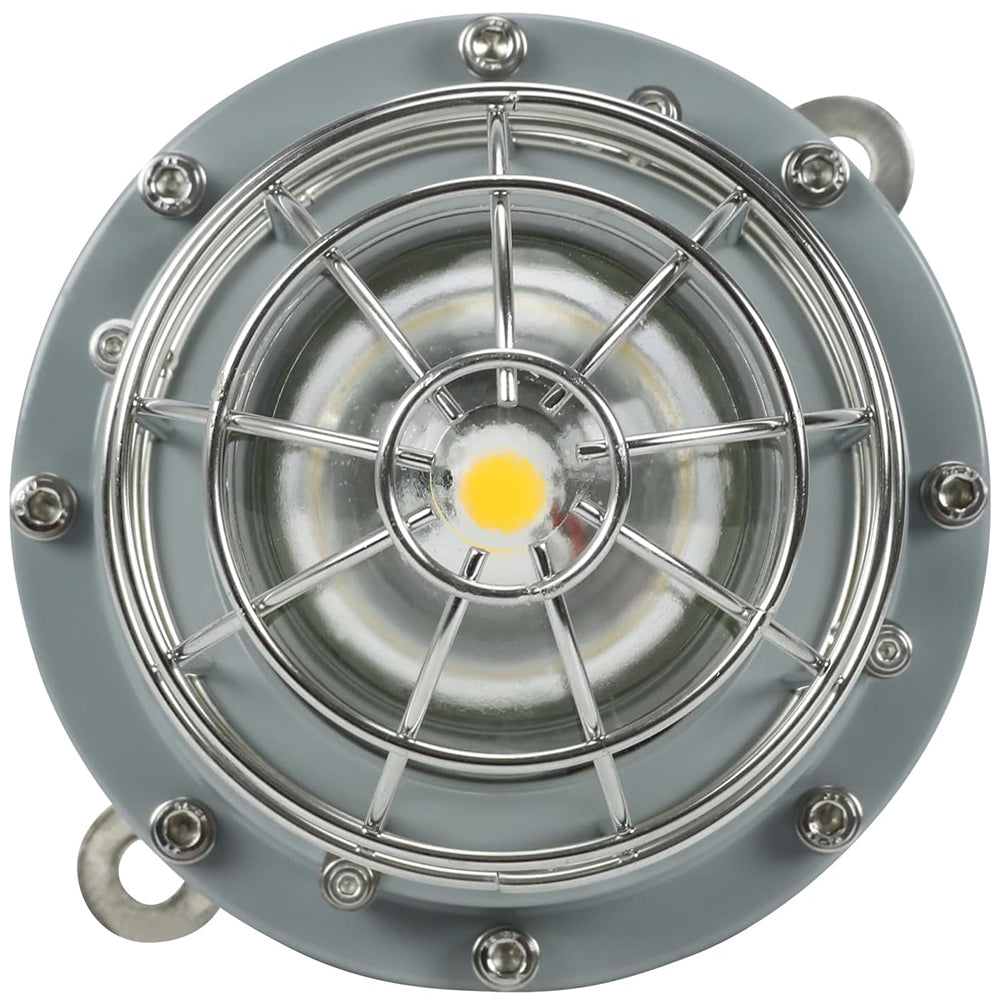

Vintage Explosion Proof Light Fixture 20W 30W 40W 5000K 100-277V Class I Division 1 UL844 IP66 IK10 LED Hazardous Location Lighting, ETL Listed
Vintage Explosion Proof Light Fixture 20W 30W 40W 5000K 100-277V Class I Division 1 UL844 IP66 IK10 LED Hazardous Location Lighting, ETL Listed
In stock
Couldn't load pickup availability
Shipping: US free shipping
Shipping by: FedEx UPS
Delivery time: 2-4 business days after payment
Bigger Quantity Cheaper Price
| Minimum Same Variant Quantity | Discount |
| 20-49 | 3% |
| 50-99 | 5% |
| 100+ | 8% |
Technical Specifications:
- Available Wattage: 20W 30W 40W
- Watt equivalent: 40-80W MH HPS HID(20W), 60-120W MH HPS HID(30W), 80-160W MH HPS HID(40W)
- Color Temperature Available: 5000K daylight (If you need 4000K, please contact us)
- Lumen: 2800LM(20W), 4200LM(30W), 5600LM(40W)
- Beam Angle: 120degree
- Lifespan: 50,000 hours
- Voltage: 100-277V 50/60Hz
- Power source: corded-electric
- Working temperature: -40℉ – 149℉
- Power factor: >90%
- Photocell: no photocell
- Dimmable: 0-10V
- Housing: Copper-free aluminum
- Lens: Tempered glass
- Hardware: Stainless steel
- Mounting Bracket: Stainless steel
- Shell Finish Color: gray
- ETL, cETL approved
- 5 years of Manufacturer's Warranty
- Marking UL844 (North American): Class I, Division 1, Groups C, D; Class I, Division 2, Groups A, B, C, D; Class II, Division 1, Groups E, F, G; Class II, Division 2, Groups F, G; Class III
- Marine Marking: UL 1598, UL1598A; ABS;
- IP66
- Impact Resistance (Shock): IK10
Product Description:
Certified Explosion Proof Vintage-Style Industrial Lighting for Hazardous Locations
This Vintage Explosion Proof LED Light Fixture is engineered for hazardous industrial environments where flammable gases, vapors, combustible dust, or explosive atmospheres may be present.
Built for Class I Division 1 and Class I Division 2 hazardous locations, this UL844-rated industrial luminaire delivers safe, reliable, and energy-efficient lighting in critical environments such as oil refineries, chemical plants, fuel storage areas, offshore platforms, mining facilities, and heavy industrial sites.
With a rugged vintage industrial design, this fixture combines classic industrial aesthetics with modern explosion-proof LED technology, making it ideal for both functional and architectural industrial lighting applications.
Key Features:
💥 Class I Division 1 UL844 Explosion Proof Certified
Designed for the most demanding hazardous environments:
- UL844 Certified for hazardous locations
- Class I Division 1 / Division 2 rated
- Suitable for explosive gas and vapor atmospheres
- ETL Listed for safety compliance
Ensures maximum protection in high-risk industrial zones.
⚡ High-Efficiency LED Performance
Advanced LED system provides:
- High lumen output for industrial coverage
- Energy savings up to 70% vs HID lighting
- Instant full brightness startup
- Flicker-free stable illumination
- Long lifespan up to 50,000 hours
Ideal replacement for traditional HID and metal halide fixtures.
🛡 IK10 Impact Resistant + Industrial Grade Construction
Built for extreme durability:
- IK10 impact-resistant rating
- Die-cast aluminum housing
- Tempered glass lens
- Corrosion-resistant coating
- Vibration-resistant structure
Designed for harsh oilfield and industrial environments.
🌧 IP66 Waterproof & Dustproof Protection
Fully sealed enclosure protects against:
- Heavy rain and snow
- Dust and airborne particles
- Oil mist and chemical exposure
- Harsh outdoor industrial conditions
Suitable for indoor and outdoor hazardous locations.
🌡 Wide Temperature Industrial Performance
Reliable operation in extreme environments:
- -40°F to 149°F (-40°C to 65°C)
- High humidity industrial zones
- Offshore salt-air environments
- Desert and mining operations
Ensures stable lighting performance year-round.
🔧 Flexible Installation Options
Compatible with multiple mounting types:
- Wall mounting
- Ceiling mounting
- Pendant installation
- Bracket mounting
Easy integration into retrofit or new industrial projects.
Application:
1. Oil and gas industry
- All petroleum production and refifining
- Petroleum loading and transportation
- Petroleum storage and retail
- LNG industry
- All mining operations and service
2. Ocean, marine and aerospace fifield
- Ocean platform operation facilities
- Ocean vessel operations
- Aerospace clean room and production
3. Food and alcohol industry
- Flour and fifine particle production and storage
- Food and distilling production
- Alcohol industry
4. Chemical industry
- All types of paint facilities
- Chemical production and storage
5. Metal treatment
- Steel and aluminum factories
- Pumping stations in any environment
- Metal smelting, foundry and fabrication
6. Other high humidity, high dust, high temperature, vapor locations.
Why Choose This Vintage Explosion Proof Light?
✔ UL844 certified for hazardous industrial environments
✔ Class I Division 1 & Division 2 rated safety protection
✔ High-efficiency LED reduces energy costs
✔ IK10 impact-resistant industrial construction
✔ IP66 waterproof for outdoor harsh environments
✔ Long lifespan reduces maintenance downtime
✔ Vintage industrial design for architectural projects
✔ Ideal replacement for HID explosion-proof fixtures
✔ Suitable for oil, gas, chemical, and mining industries
vintage explosion proof light fixture, ul844 explosion proof light, class 1 division 1 led light fixture, hazardous location lighting, explosion proof led industrial light, ip66 explosion proof light, ik10 industrial lighting fixture, oil refinery explosion proof light, chemical plant hazardous lighting, mining explosion proof light fixture, gas station explosion proof lighting, offshore platform industrial light, vapor proof industrial light fixture, led hazardous area lighting, industrial safety lighting fixture, heavy duty explosion proof led light, retro industrial explosion proof light, ceiling mounted explosion proof fixture, wall mounted hazardous location light
Download Spec Sheethttps://cdn.shopify.com/s/files/1/0692/4245/4334/files/Temporary-Work-Light-V4.9.pdf?v=1672109540
